Chapter 17:
Maintenance and Troubleshooting
This chapter includes information on replacing parts, cleaning the fixture,
and some basic troubleshooting procedures.
The following toolset should be all you need for the maintenance procedures in this chapter:
• 3 mm allen wrench
• 5 mm allen wrench
• #2 Phillips screwdriver
• Gloves
• Protective eyewear
• Mild glass cleaner (containing no ammonia) and a soft, lint-free cotton cloth
Pan and Tilt Locking
The DL.3 fixture is equipped with mechanical pan and tilt locking latches to stabilize the fixture
for shipping or servicing. There is a single pan lock position and three tilt lock positions.
WARNING:
This fixture must be serviced by qualified personnel.
The information listed in this chapter is intended to
assist qualified personnel only.

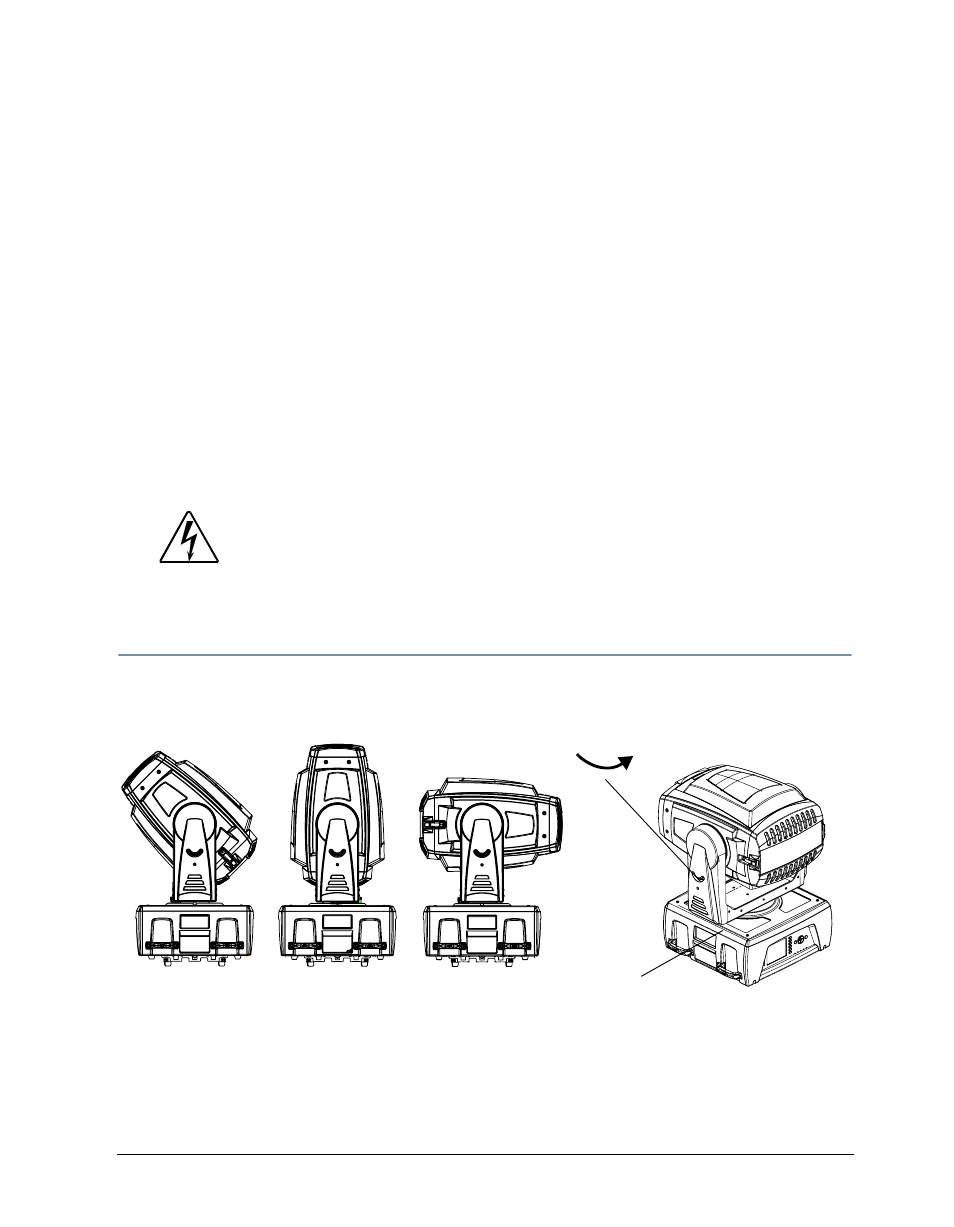

Tilt Lock Position Options Pan Lock
Tilt Lock
