CHAPTER 13
Effect Mode Options Descriptions
DL.3 Digital Light User Manual 165
Mattes
Effect Mode parameter DMX value = 144
The Global Effect option lets you select from a variety of provided patterns to superimpose over
the composite image. Modifier parameters select the pattern and effects for a matte.

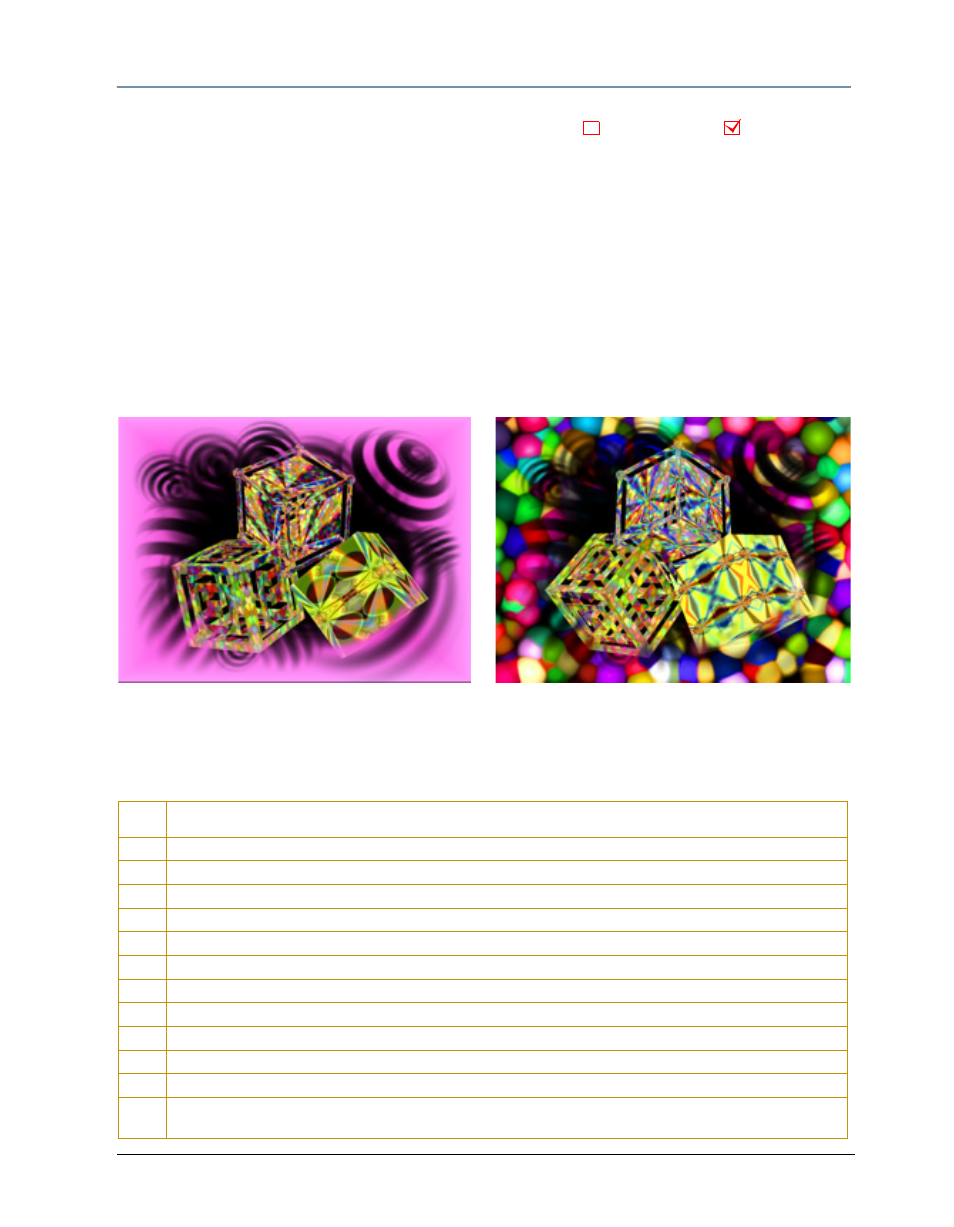

The images below show two examples of the Mattes option. In the image on the left, the
Modifier 2 value selected the matte pattern. Modifier 1 sets black as transparent. The Modifier 3
value corresponds with a lookup to an internal gradient map to determine the matte color.
In the example on the right, the same Matte is selected by Modifier 2. This time the Modifier 1
value selects white as transparent and uses a graphic object as a texture. A Modifier 3 DMX
value of 0 designates the Matte texture as Graphic Object 1’s media file content minus any
applied effects.
Modifier 1: This parameter determines transparency and color options for the selected matte:
DMX
value
Modifier 1 Action
0 Black transparent, use matte color
1 Black transparent, inverting matte color
2 White transparent, use matte color
3 White transparent, then invert matte color
4 Black transparent using a Graphic Object media file content as the matte texture
5 White transparent using a Graphic Object media file content as the matte texture
6 Black transparent with grayscale used as alpha
7 White transparent with grayscale used as alpha
8 Black transparent with grayscale not used as alpha
9 White transparent with grayscale not used as alpha
10 Black transparent, with matte color controlled by Modifier 3 as lookup in internal color gradient map
11
Black transparent, with matte color controlled by Modifier 3 as lookup in internal color gradient map
and inverted
Object Effect Global Effect
Modifier 1 DMX = 11
Modifier 2 DMX = 13
Modifier 3 DMX = 203
Modifier 1 DMX = 5
Modifier 2 DMX = 13
Modifier 3 DMX = 0
