Hardware Components
Connection Ports
The DL.3 fixture’s back panel provides ports for:
CAUTION:
To avoid damaging the fixture and voiding the warranty, do not
physically connect to the RGBHV and VGA inputs at the same time.
• 5-pin DMX Data In and Data Out (see “Setting up a Standard DMX Link” on page 2-10
for more information).
• Ethernet to connect to other DL.3 fixtures and your computer running the Content
Management Application (CMA) software on a fixture link (see “Setting up an Ethernet
Fixture Link” on page 2-11).
• Two USB ports for connecting peripheral drives to assist with troubleshooting
• RGBHV, VGA and S-Video In options for video input.
• Camera Out provides S-Video input from output from the internal camera to another DL.3
fixture or other external video output device.
• Serial Digital Interface options for input from the internal camera to the media server
and output to another DL.3 fixture or other external video output device.

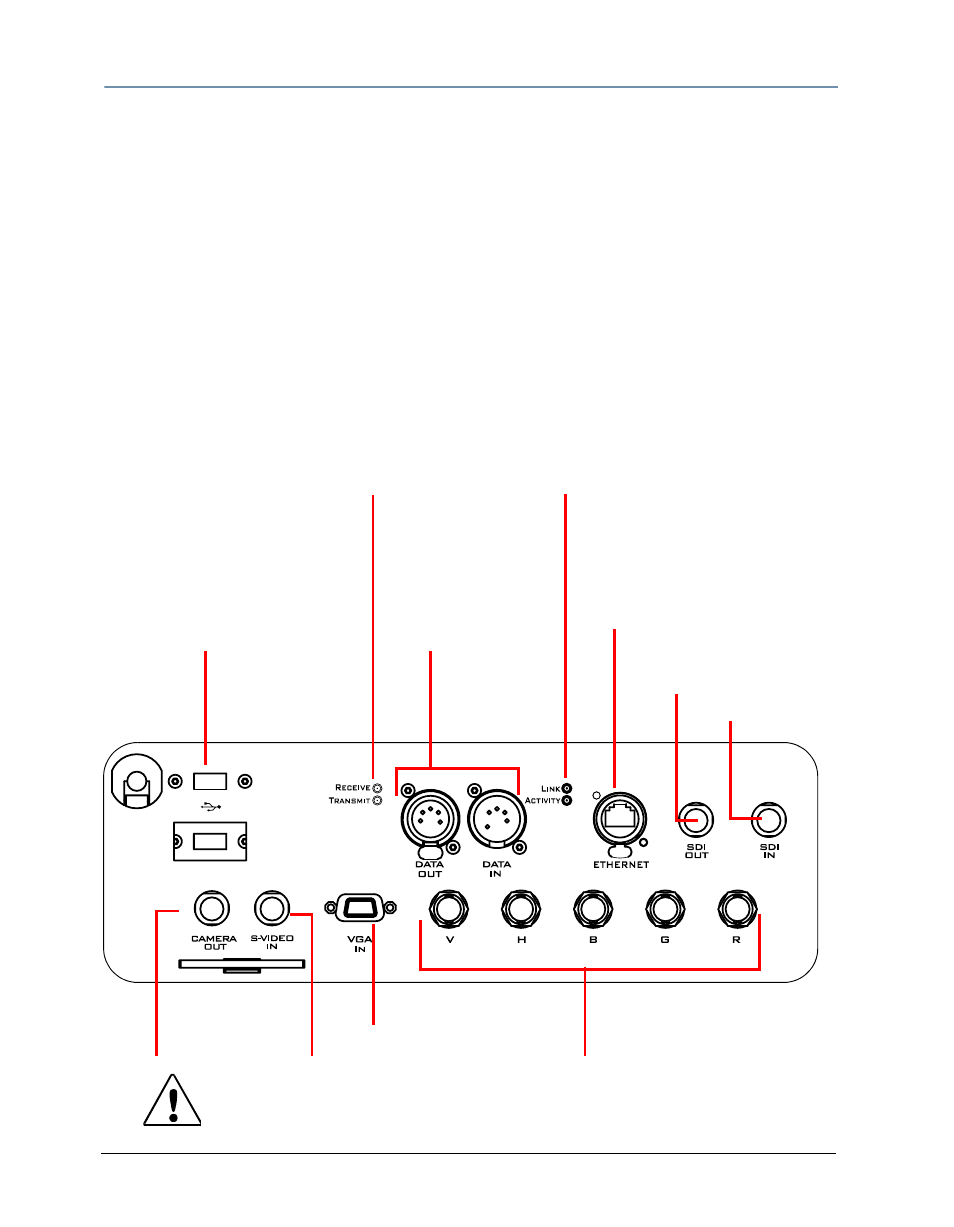

USB 1
100-120 V;
50-60Hz; 7A
200-240 V;
50-60Hz; 3.5 A
USB 2
S-Video Output
S-Video In
VGA Input for
external source
RGBHV input
for external
video source.
5-pin DMX512
Data In and
to another DL.3
fixture
Two USB ports
for peripherals
including hard drives
Receive LED
Link LED indicates
Data Out
Activity LED indicates Transmit LED
indicates DMX data
coming in
indicates DMX data
going out CMA connection
hardware connection
via Ethernet
Ethernet port to connect
DL.3 unit to fixture link
computer running CMA
SDI video IN
SDI video OUT
