CHAPTER 13
Effect Mode Options Descriptions
166 DL.3 Digital Light User Manual

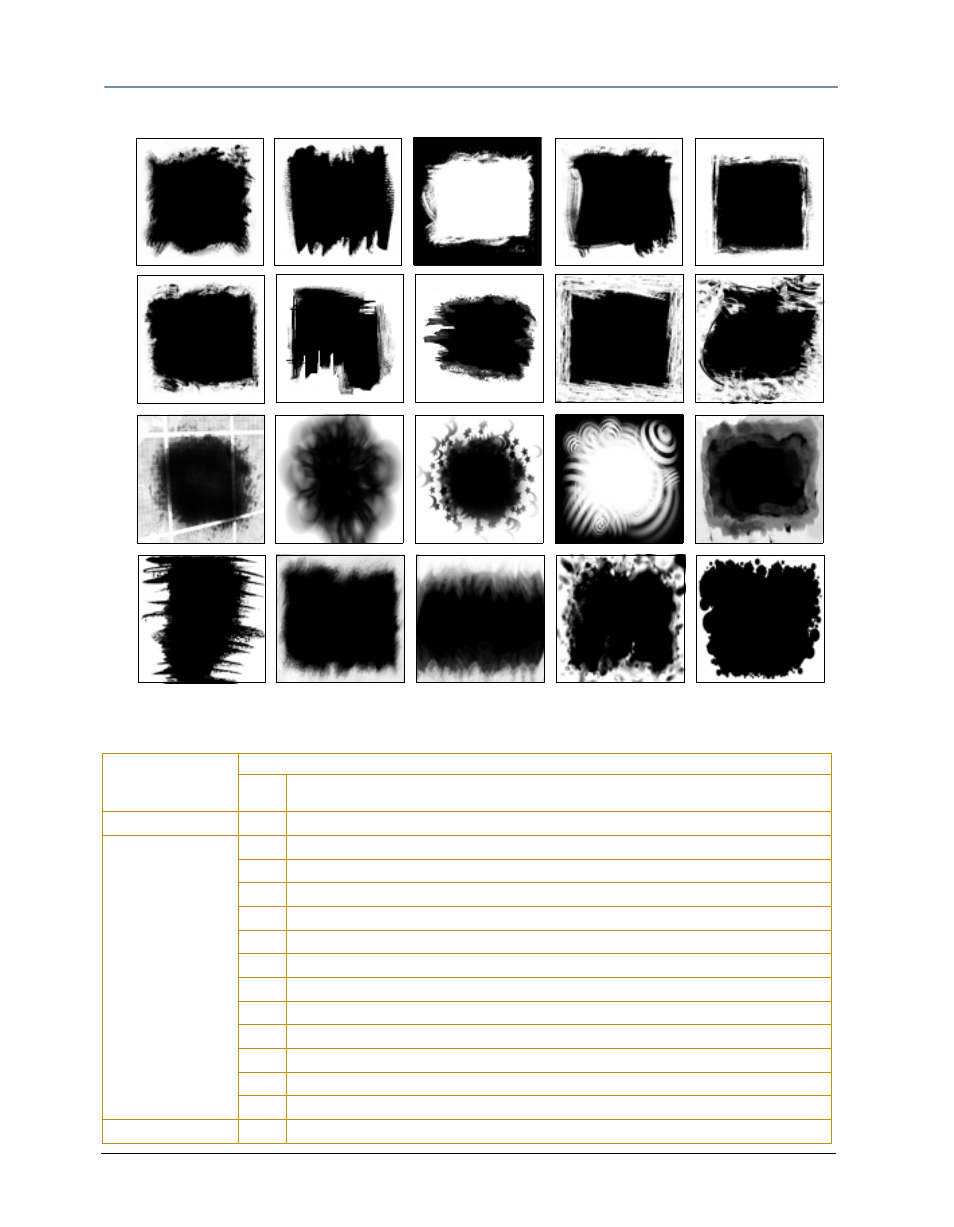

Modifier 2: The first 20 DMX values are assigned to the following Matte pattern options:
Modifier 3: This parameter determines the texture for the Matte mode selected with the
Modifier 1 parameter.
Modifier 1
DMX Value
Modifier 3
DMX
value
Action
0 - 3 NA Not Used
4 - 9
0 Graphic Object 1 texture without applied Effects
1 Graphic Object 1 texture including its first applied Effect
2 Graphic Object 1 texture including its first two applied Effects
3 Graphic Object 1 texture including its first three applied Effects
10 Graphic Object 2 texture without applied Effects
11 Graphic Object 2 texture including its first applied Effect
12 Graphic Object 2 texture including its first two applied Effects
13 Graphic Object 2 texture including its first three applied Effects
20 Graphic Object 3 texture without applied Effects
21 Graphic Object 3 texture including its first applied Effect
22 Graphic Object 3 texture including its first two applied Effects
23 Graphic Object 3 texture including its first three applied Effects
10 - 11 0-255 Color selected as a look up value from an internal gradient.
