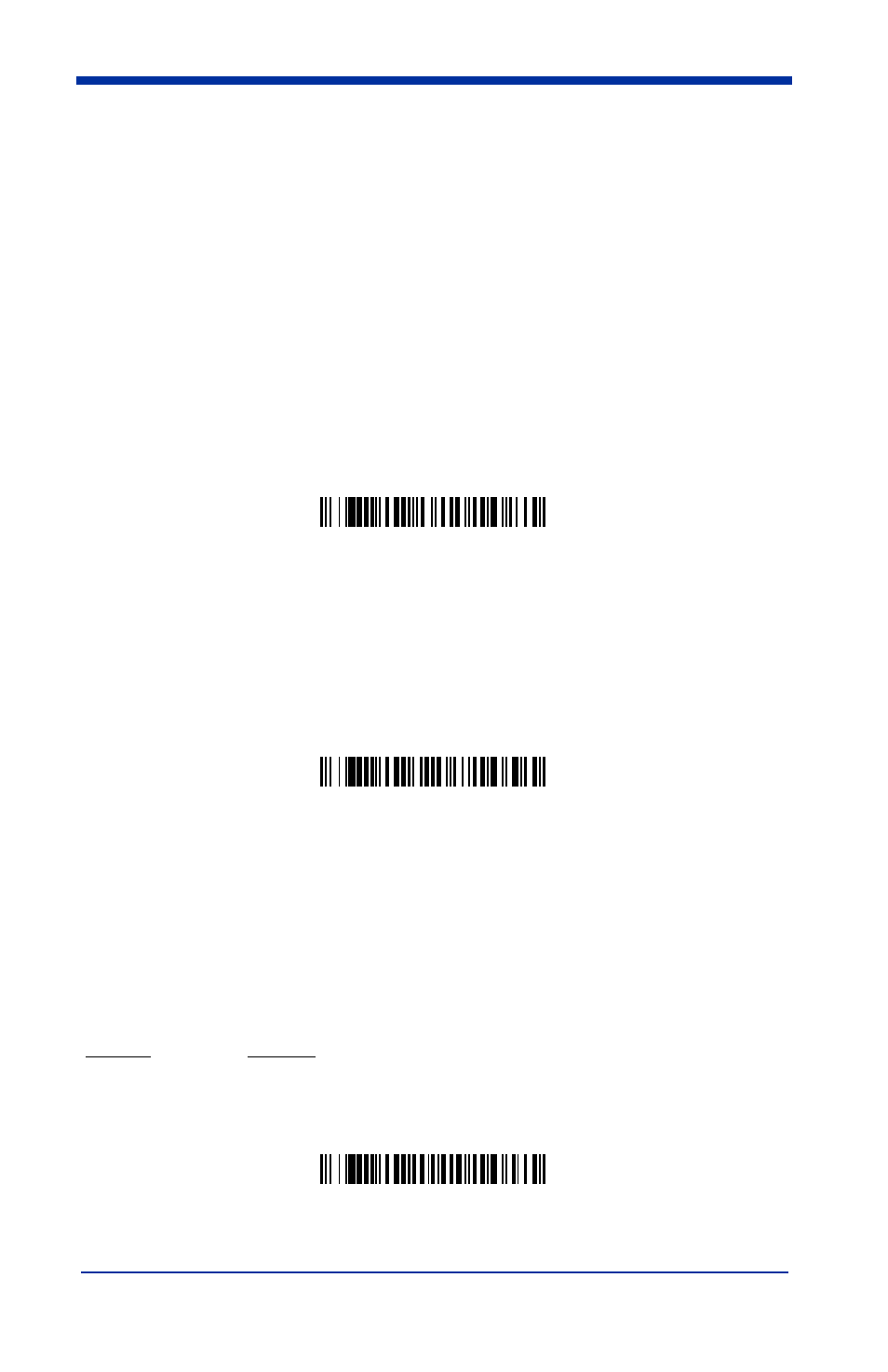

Plug and Play
Plug and Play barcodes provide instant image scanner set up for commonly used
interfaces.
Note: After you scan one of the codes, power cycle the host terminal to have the
interface in effect.
Keyboard Wedge Connection
If you want your system programmed for an IBM PC AT and compatibles
keyboard wedge interface with a USA keyboard, scan the barcode below.
Keyboard wedge is the default interface.
Note: The following barcode also programs a carriage return (CR) suffix.
Laptop Direct Connect
For most laptops, scanning the Laptop Direct Connect barcode allows
operation of the image scanner in parallel with the integral keyboard. The
following Laptop Direct Connect barcode selects terminal ID 03, programs a
carriage return (CR) suffix and turns on Emulate External Keyboard (
RS-232
The RS-232 Interface barcode is used when connecting to the serial port of a PC
or terminal. The following RS-232 Interface barcode also programs a carriage
return (CR) and a line feed (LF) suffix, baud rate, and data format as indicated
below. It also changes the trigger mode to manual.
Option
Setting
Baud Rate
115,200 bps
Data Format
8 data bits, no parity bit, 1 stop bit
IBM PC AT and Compatibles
with CR suffix
Laptop Direct Connect
with CR suffix
RS-232 Interface
