46
Using Optional Equipment
5. Close the transparency unit.

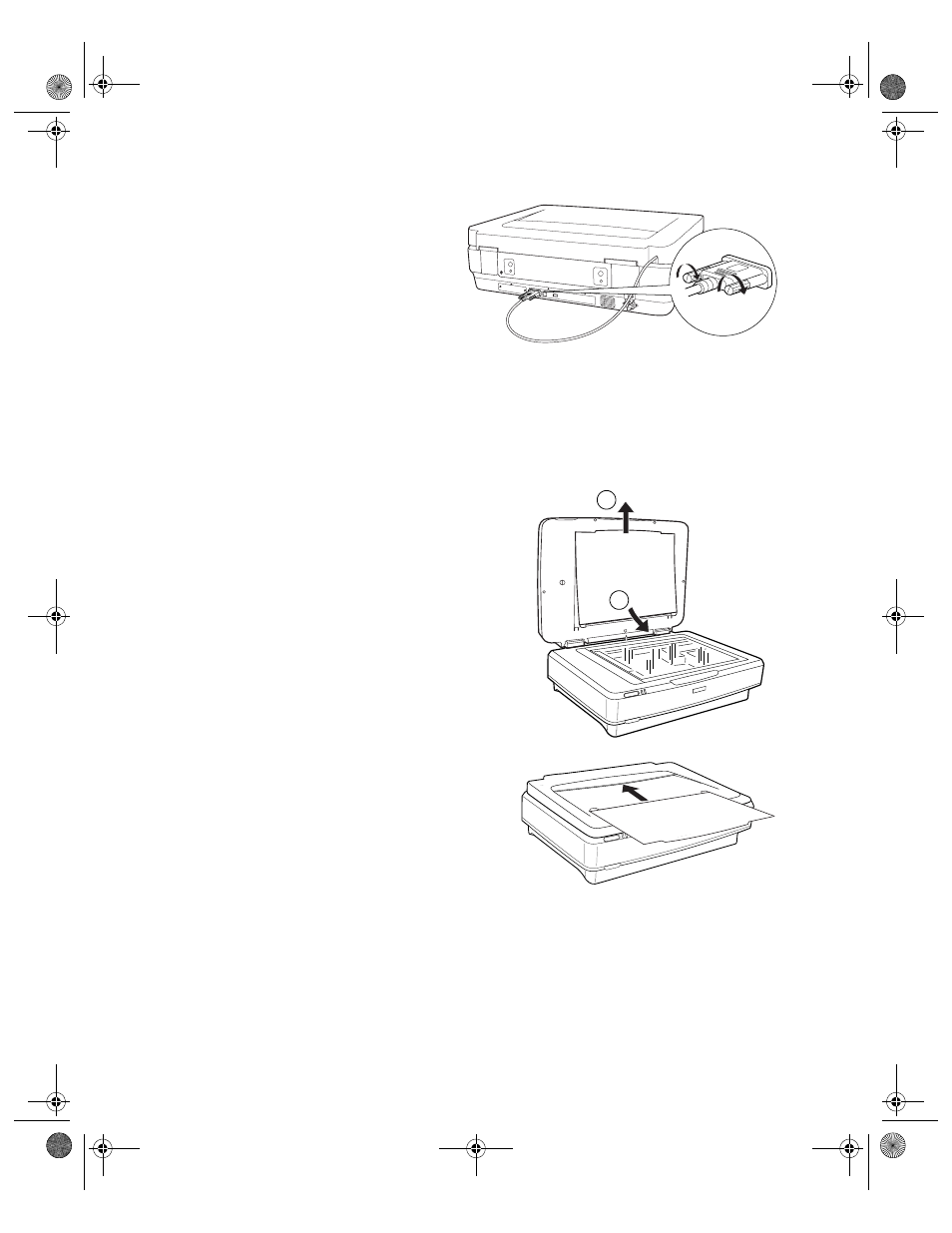

6. Connect the transparency unit cable
to the scanner’s OPTION port, then
tighten its screws.
Using the Transparency Unit
Before using the transparency unit (TPU), you need to remove the reflective
document mat and make sure the glass on both the document table and the TPU
is clean.
1. Open the transparency unit.
2. Grasp the white reflective document mat by
its top edge and slide it upward to free the
bottom edge of the mat.
3. Lower the mat slightly to free the tabs at the
top edge, then remove the mat.
4. Place the mat in the storage pocket located
on top of the TPU.
5. Make sure the glass on the scanner’s
document table and on the TPU is
completely clean and free of dust. If
necessary, use a soft cloth to wipe it clean.
Caution: Never spray glass cleaner directly on the document table. Always spray
it on a cloth first and then wipe the glass.
2
1
