Duo Installation Guide
MAN-DUO (Ver. 1.0)
B-3

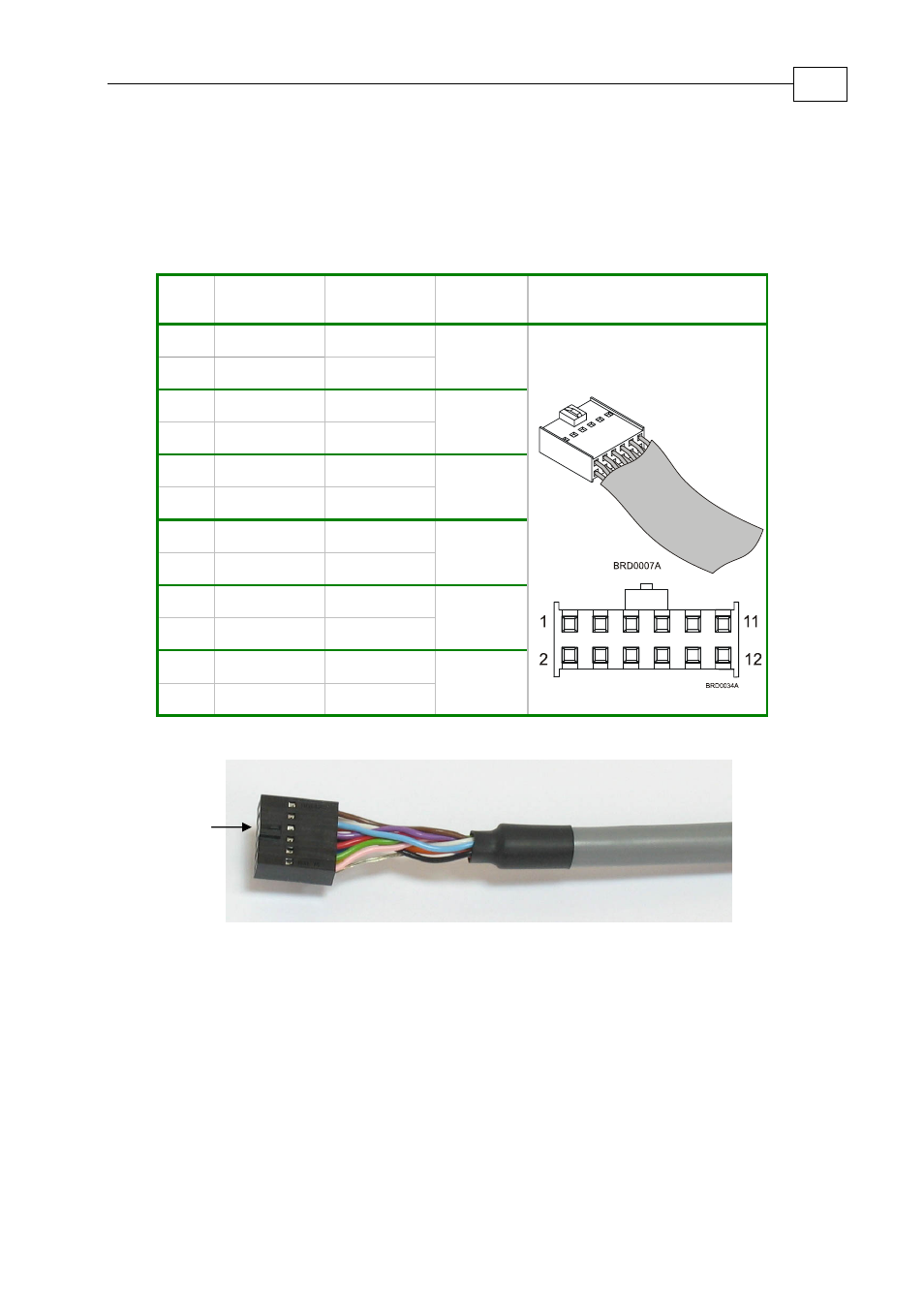

B.3 Main Feedback Cable (CBL-HDRFB-001)
The Main Feedback cable (CBL-HDRFB-001) is made of a 24-AWG shielded cable with a
12-pin Molex Header socket. It connects to the Main Feedback port on the Duo. It is open on
its other side so that it can be connected to customer-specific motor connector.
Pin
No. Color Signal Pairs
1 Brown +5V
2 White COMRET
pair
3 Cyan CHA
4 Orange CHA-
pair
5
Purple
CHB
6
Black
CHB-
pair
7 Red INDEX
8 Blue INDEX-
pair
9 Green HA
10 Yellow HB
pair
11 Pink HC
pair
12 Drain wire COMRET
12 pin Molex
Header Socket
Front View
Front
View
Figure A-1: Single-sided Main Feedback Cable (Part No. CBL-HDRFB-001)
