Duo Installation Guide

MAN-DUOIG (Ver. 1.0)

A-14

A.7.2 Digital Output Interface – 2 Digital Outputs

Feature Details

Connector

Location

Type of output

ƒ

Optically isolated

ƒ

Open collector and open emitter

Maximum supply output
(Vcc)

30 V

Max. output current
Iout (max) (Vout = Low)

Iout (max) ≤ 10 mA

VOL at maximum output
voltage (low level)

Vout (on) ≤ 0.3 V

RL

External resistor RL must be
selected to limit output current to
no more than 10 mA.

(max)

Io

VOL

Vcc

R

L

=

Executable time

If output is set to one of the built-
in functions — Home flag, Brake
or AOK — execution is immediate
upon detection:
0 < T < 4 x TS

If output is set to General output
and is executed from a program,
the typical time is approximately
0.5 msec.

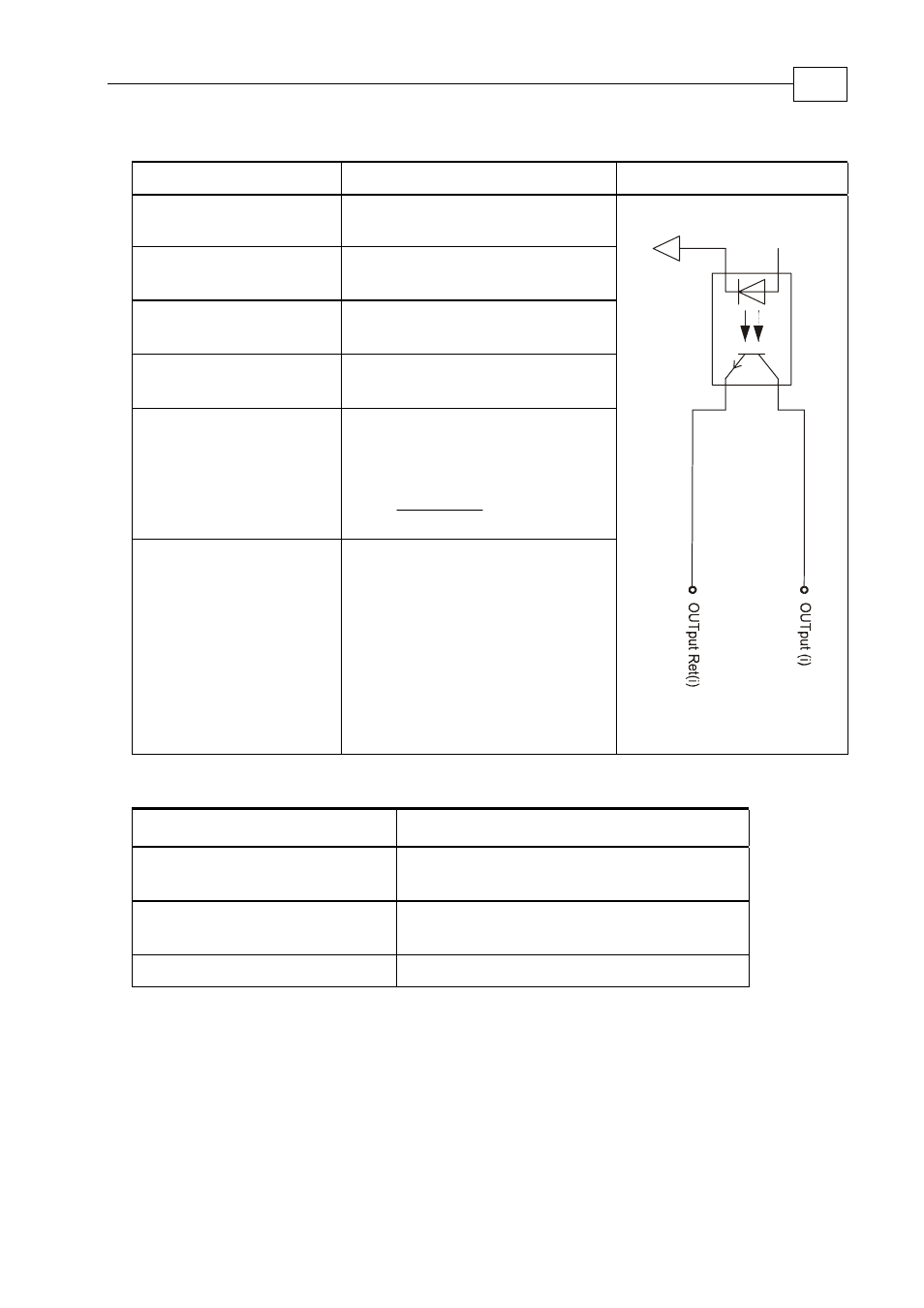

Digital Output Schematic

A.7.3 Analog Inputs – 1 Analog Input

Feature Details

Analog input - maximum
differential mode voltage

+ 20 V

Analog input - maximum
common mode voltage

+ 10 V

Input resistance

3.74 KΩ
