Connect the parallel interface cable as described below:

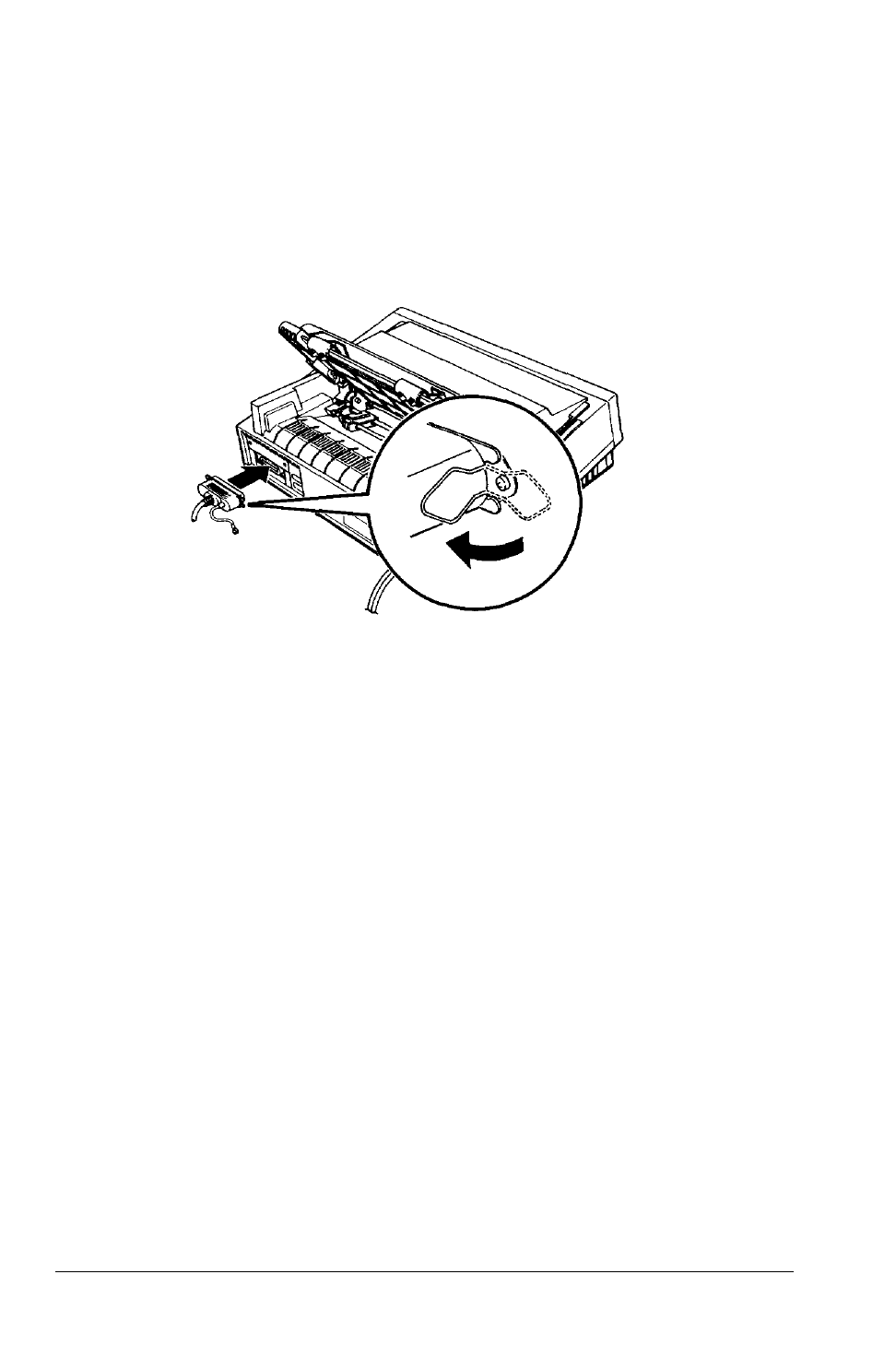

1. Make sure both the printer and computer are turned off; then

plug the cable connector securely into the printer’s parallel

interface connector. Squeeze the wire clips together until

they lock in place on either side of the connector.

Note:

your cable has a ground wire, connect it to the ground connector

beside the in interface connector.

2. Plug the other end of the cable into the computer. (If there is

a ground wire at the computer end of the cable, attach it to
the ground connector at the back of the computer.)
