49

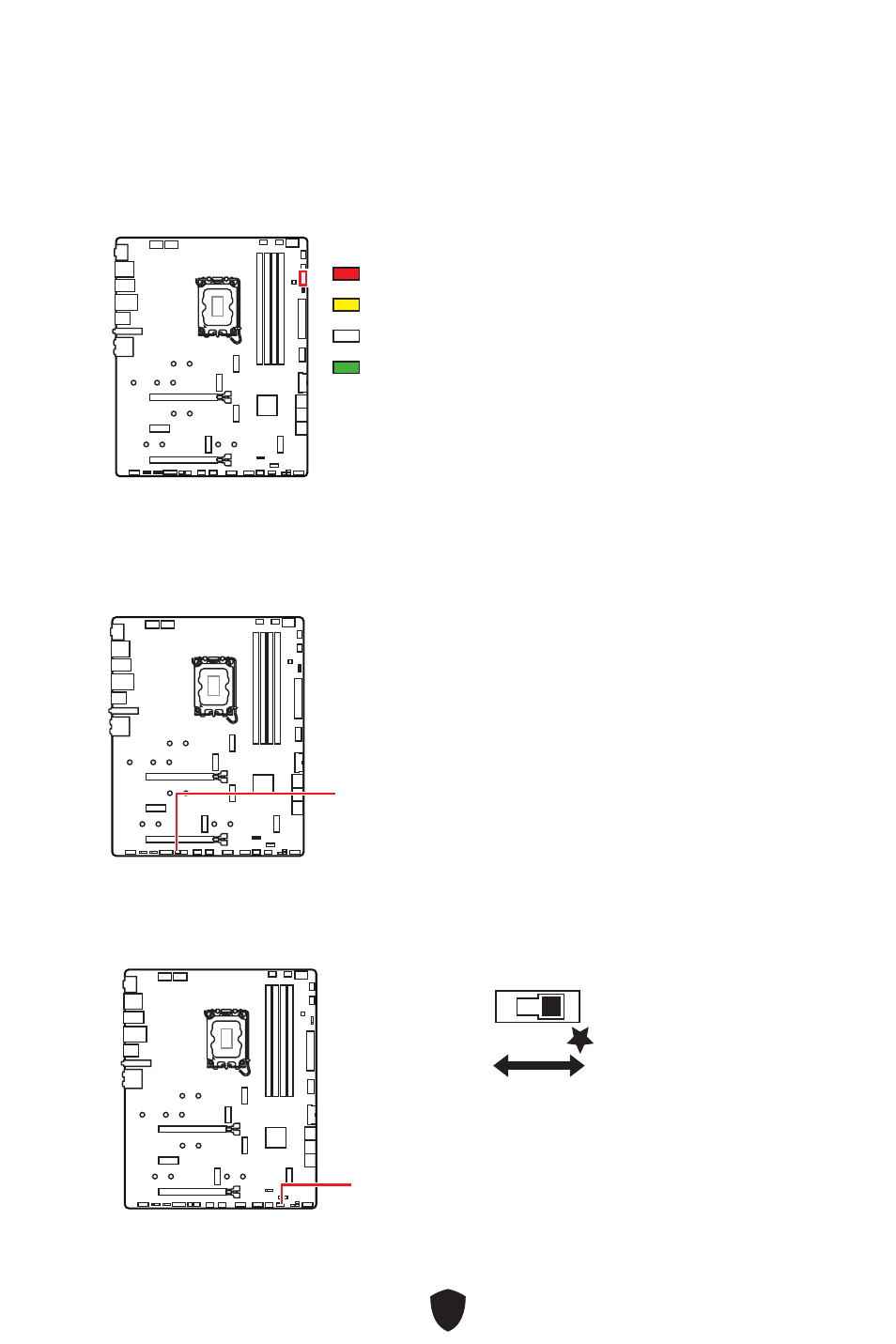

EZ Debug LED

These LEDs indicate the debug status of the motherboard.

CPU

- indicates CPU is not detected or fail.

DRAM

- indicates DRAM is not detected or fail.

VGA

- indicates GPU is not detected or fail.

BOOT

- indicates the booting device is not detected or fail.

Onboard LEDs

JPWRLED1: LED power input

This connector is used by retailers to demonstrate onboard LED lights.

JPWRLED1 - LED power input

LED_SW1: EZ LED Control

This switch is used to switch on/ off all the LEDs of motherboard.

LED_SW1

LED_OFF

LED_ON

(Default)
