24

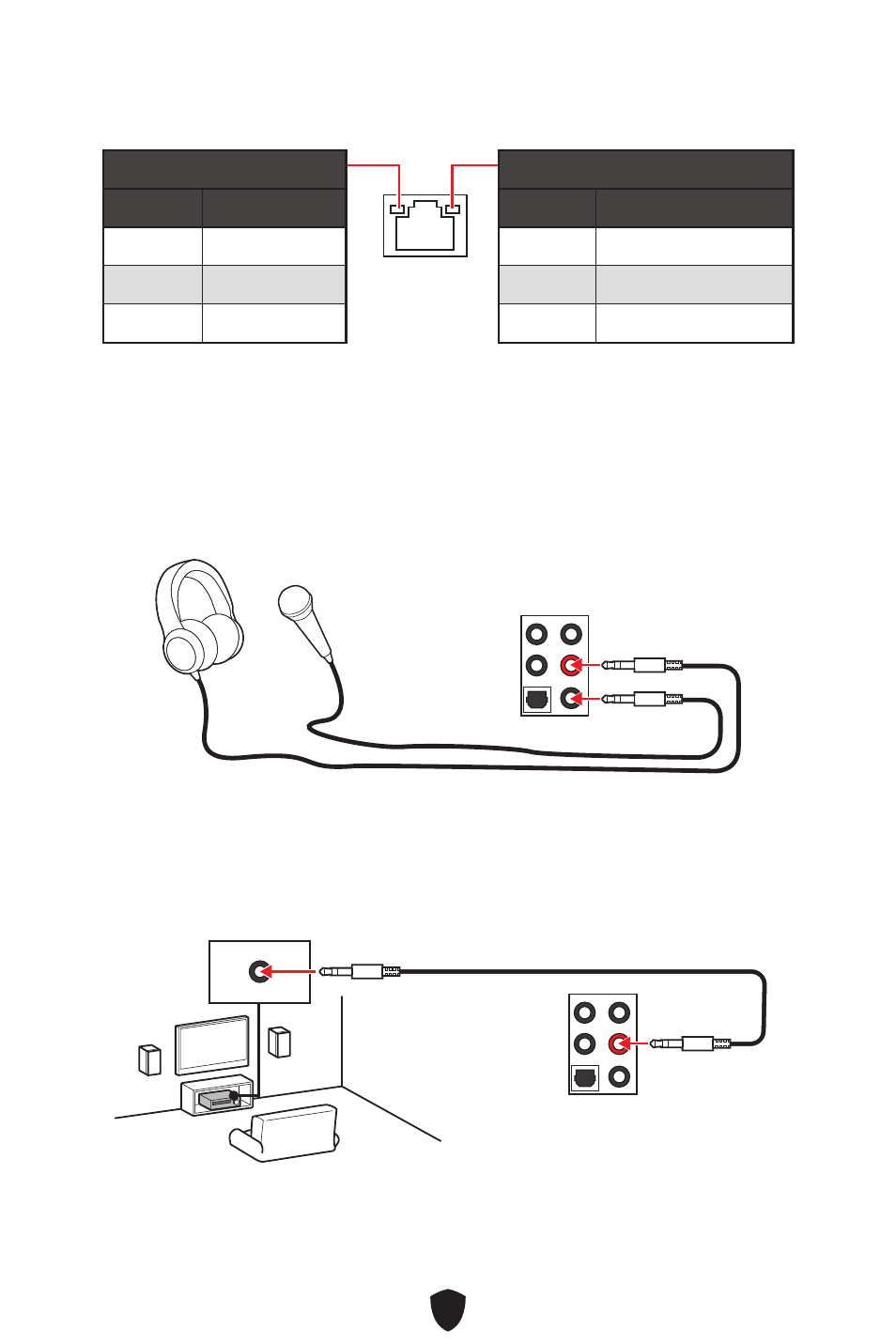

LAN Port LED Status Table

Link/ Activity LED
Status

Description

Off

No link

Yellow

Linked

Blinking

Data activity

Speed LED
Status

Speed

Off

10 Mbps

Green

100/1000 Mbps

Orange

2.5 Gbps

Audio Jacks Connection

Audio jacks to headphone and microphone diagram

Audio jacks to stereo speakers diagram

AUDIO INPUT
