38

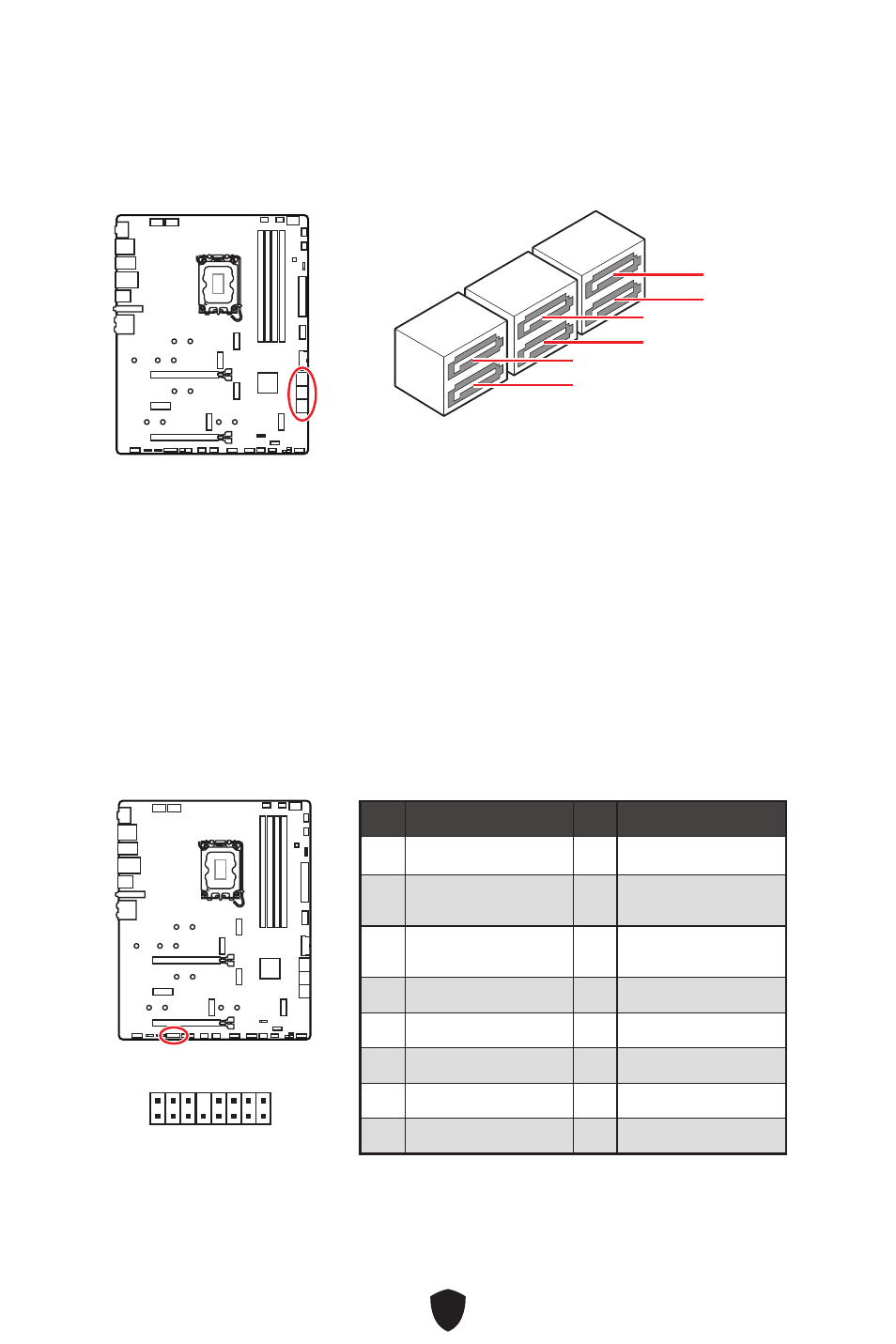

SATA5~8 & SATA_A1~A2: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

SATA5

SATA7

SATA_A1

SATA6

SATA8

SATA_A2

Important

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.

JTBT1: Thunderbolt Add-on Card Connector

This connector allows you to connect the add-on Thunderbolt I/O card.

1

2

16

15

Pin

Signal Name

Pin

Signal Name

1

TBT_FORCE_PWR

2

TBT_S0IX_ENTRY_REQ

3

TBT_CIO_PLUG_

EVENT#

4

TBT_S0IX_ENTRY_ACK

5

SLP_S3#_TBT

6

TBT_PSON_

OVERRIDE_N

7

SLP_S5#_TBT

8

No Pin

9

Ground

10

SMBCLK_VSB

11

DG_PEWAKE#

12

SMBDATA_VSB

13

TBT_RTD3_PWR_EN

14

Ground

15

TBT_CARD_DET_R#

16

PD_IRQ#
