2.

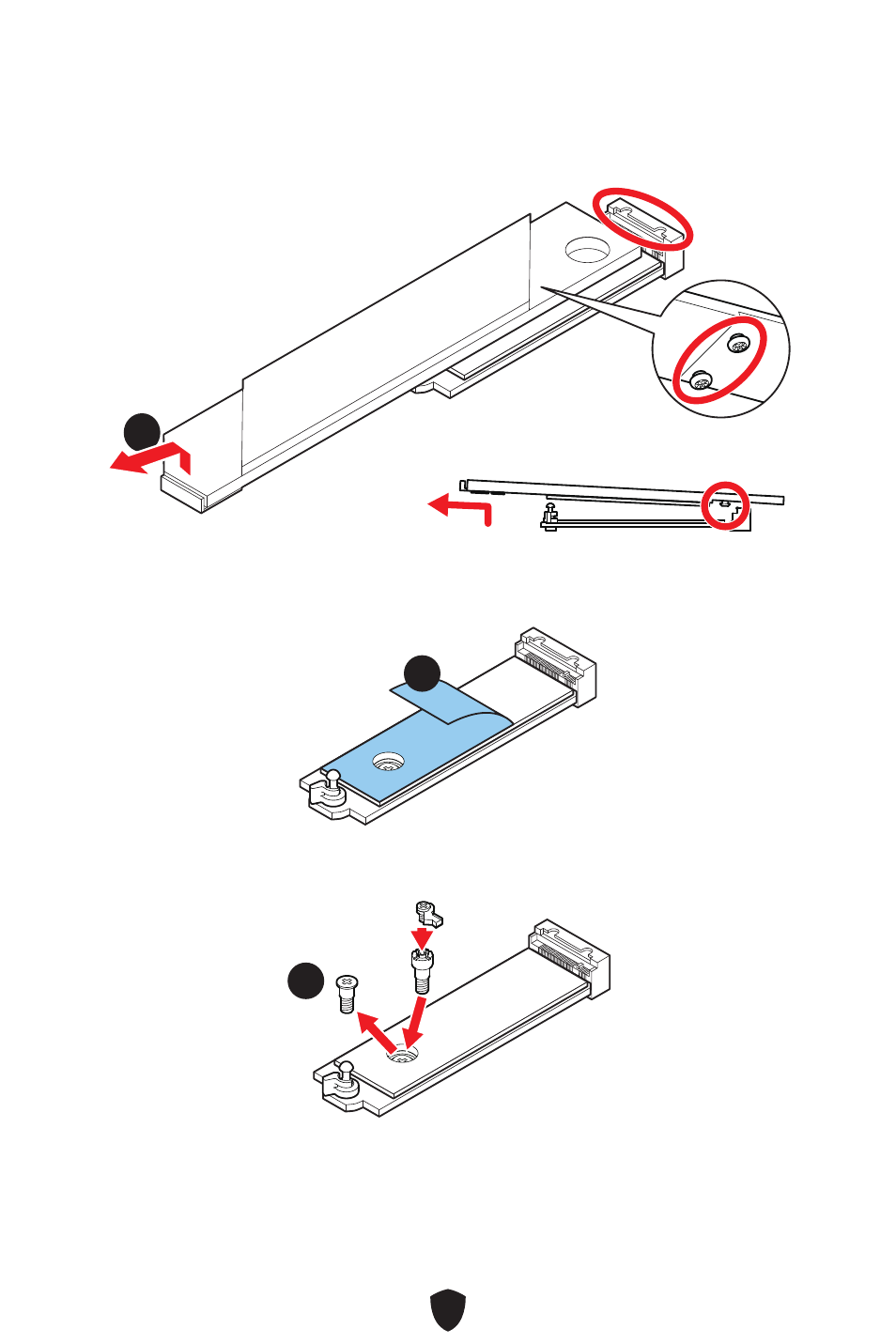

Slightly lift up the end part of the Screwless M.2 Shield Frozr heatsink and move it

forward to remove the heatsink.

2

2

3.

Remove the protective films from the M.2 thermal pads on the M.2 plate.

3

3

4.

If you install 2260 SSD, remove the screw from the M.2 plate and then install the

supplied EZ M.2 Clip kit on the M.2 plate. Skip this step if you install 2280 SSD.

4

4

2260 SSD
