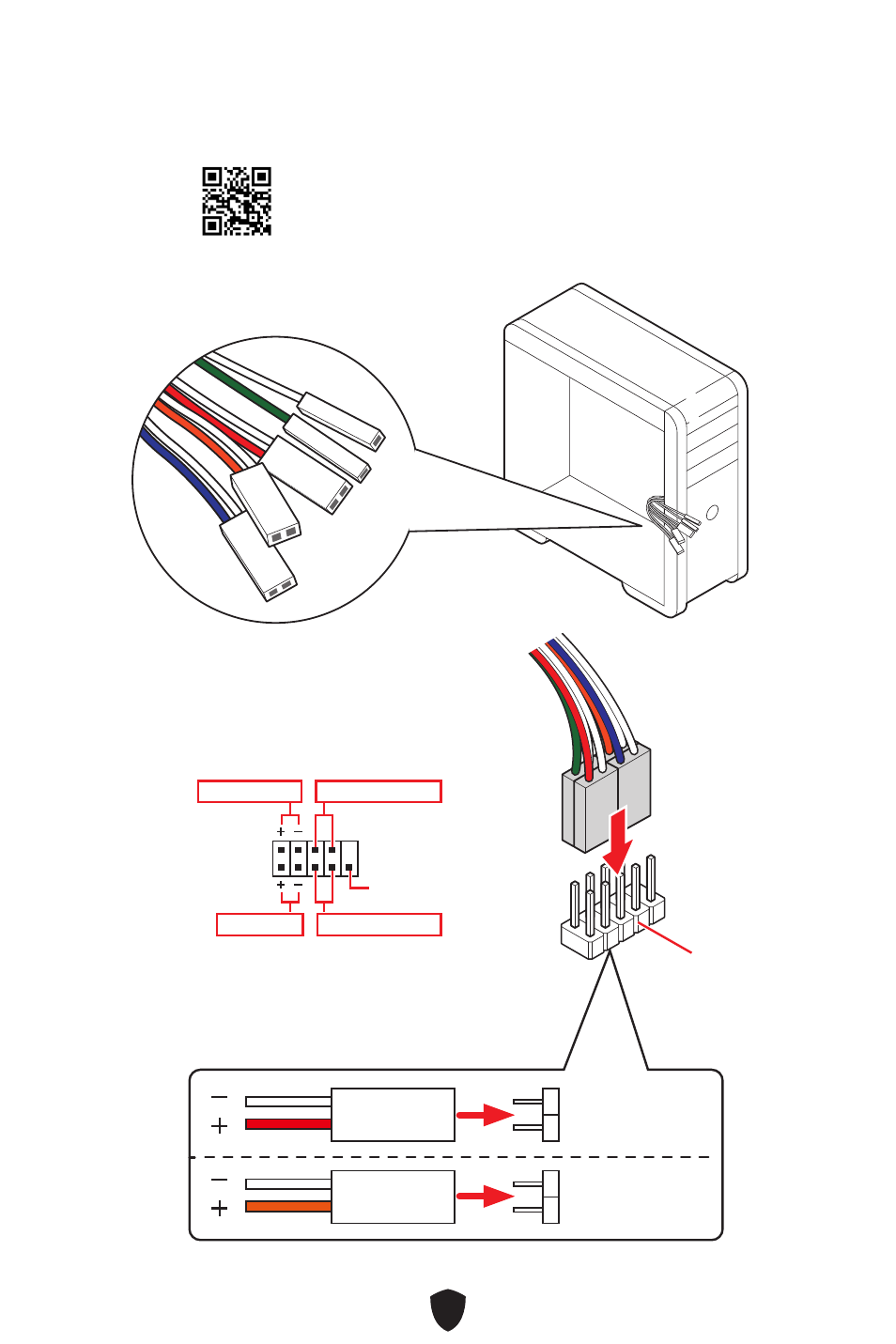

Подключение разъема на передней панели

http://youtu.be/DPELIdVNZUI

JFP1

HDD LED

HDD LED -

HDD LED +

POWER LED -
POWER LED +

POWER LED

RESET

SW

POWER SW

POWER LED+

POWER LED-

HDD LED

1

2

10

9

Power LED

Reserved

Power Switch

JFP1

Reset Switch

HDD LED
