Page 429
43

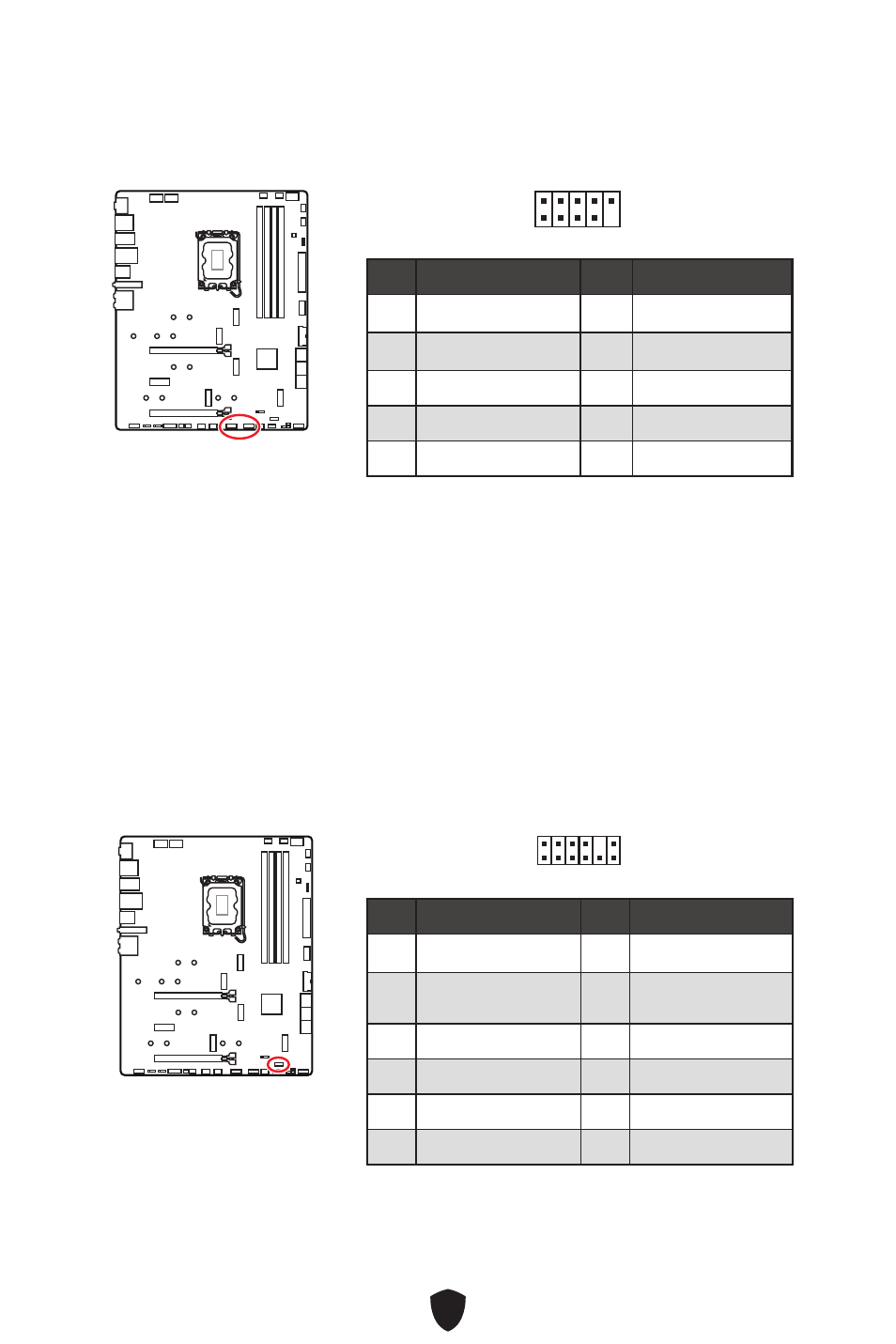

JUSB1~2: USB 2.0 接頭
這些接頭用於連接前面板的 USB 2.0 連接埠。
⚠
重要
∙
請注意,VCC 和接地接腳必須正確連接,以免造成零件受損。
∙
如要以 USB 連接埠對 iPad、iPhone 及 iPod 充電,請安裝 MSI Center 工具軟體。
JTPM1: TPM 模組接頭
此接頭用於連接可信賴平台模組 (TPM)。請參閱 TPM 安全平台手冊瞭解更多詳情。
接腳
訊號名稱
接腳
訊號名稱
1
VCC
2
VCC
3
USB0-
4
USB1-
5
USB0+
6
USB1+
7
Ground
8
Ground
9
No Pin
10
NC
1
2
10
9
接腳
訊號名稱
接腳
訊號名稱
1
SPI Power
2
SPI Chip Select
3
Master In Slave Out
(SPI Data)
4
Master Out Slave In
(SPI Data)
5
Reserved
6
SPI Clock
7
Ground
8
SPI Reset
9
Reserved
10
No Pin
11
Reserved
12
Interrupt Request
1
2
12
11
