JUSB3: USB 3.2 Gen 1 Connector

This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.

Important

Note that the Power and Ground pins must be connected correctly to avoid possible

damage.

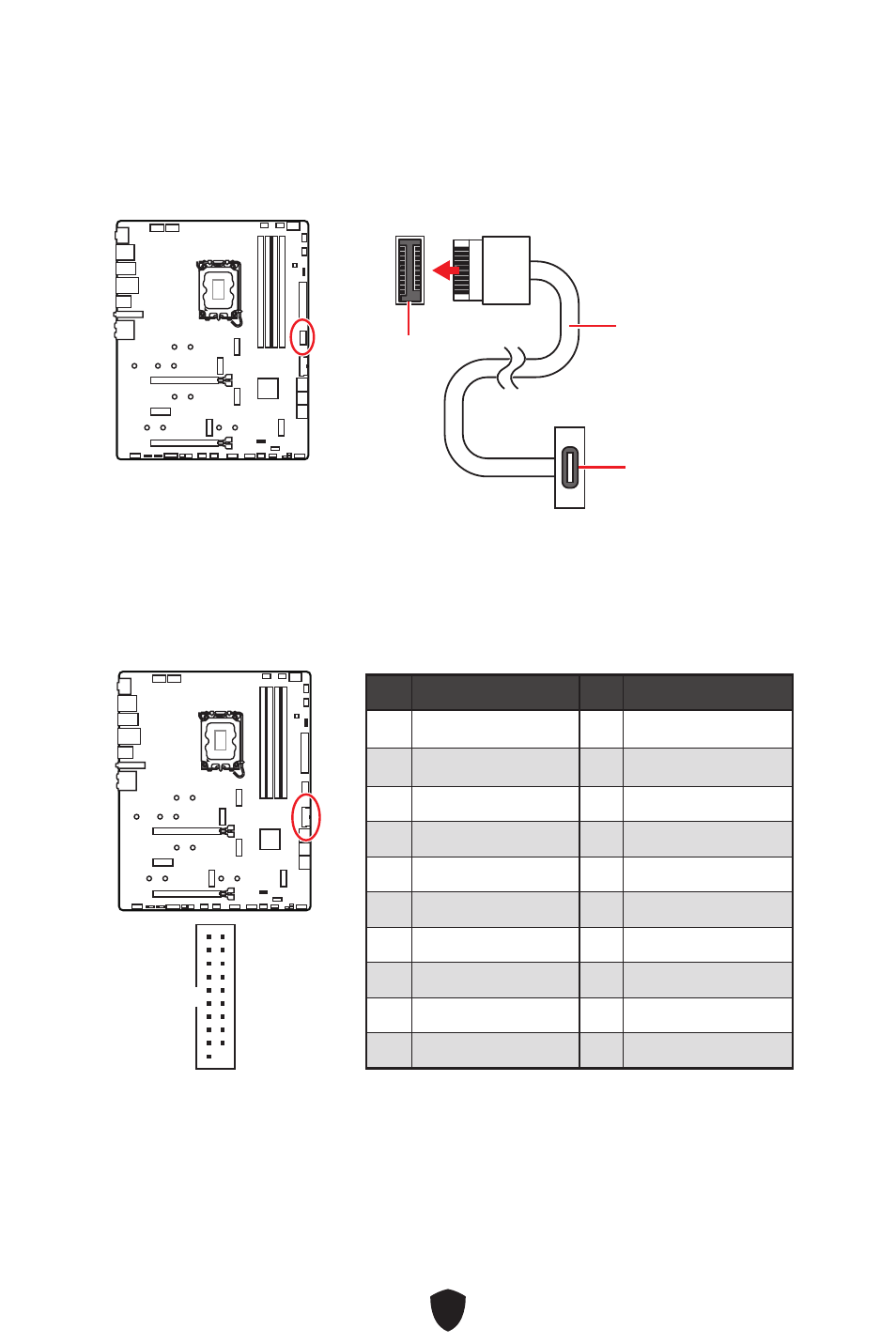

JUSB4: USB 3.2 Gen 2x2 Type-C front panel Connector

This connector allows you to connect USB 3.2 Gen 2x2 20Gbps Type-C connector on

the front panel. The connectors possess a foolproof design. When you connect the

cable, be sure to connect it with the corresponding orientation.

JUSB4

USB Type-C Cable

USB Type-C port on

the front panel

Pin

Signal Name

Pin

Signal Name

1

Power

2

USB3_RX_DN

3

USB3_RX_DP

4

Ground

5

USB3_TX_C_DN

6

USB3_TX_C_DP

7

Ground

8

USB2.0-

9

USB2.0+

10

Ground

11

USB2.0+

12

USB2.0-

13

Ground

14

USB3_TX_C_DP

15

USB3_TX_C_DN

16

Ground

17

USB3_RX_DP

18

USB3_RX_DN

19

Power

20

No Pin

1

10

11

20
