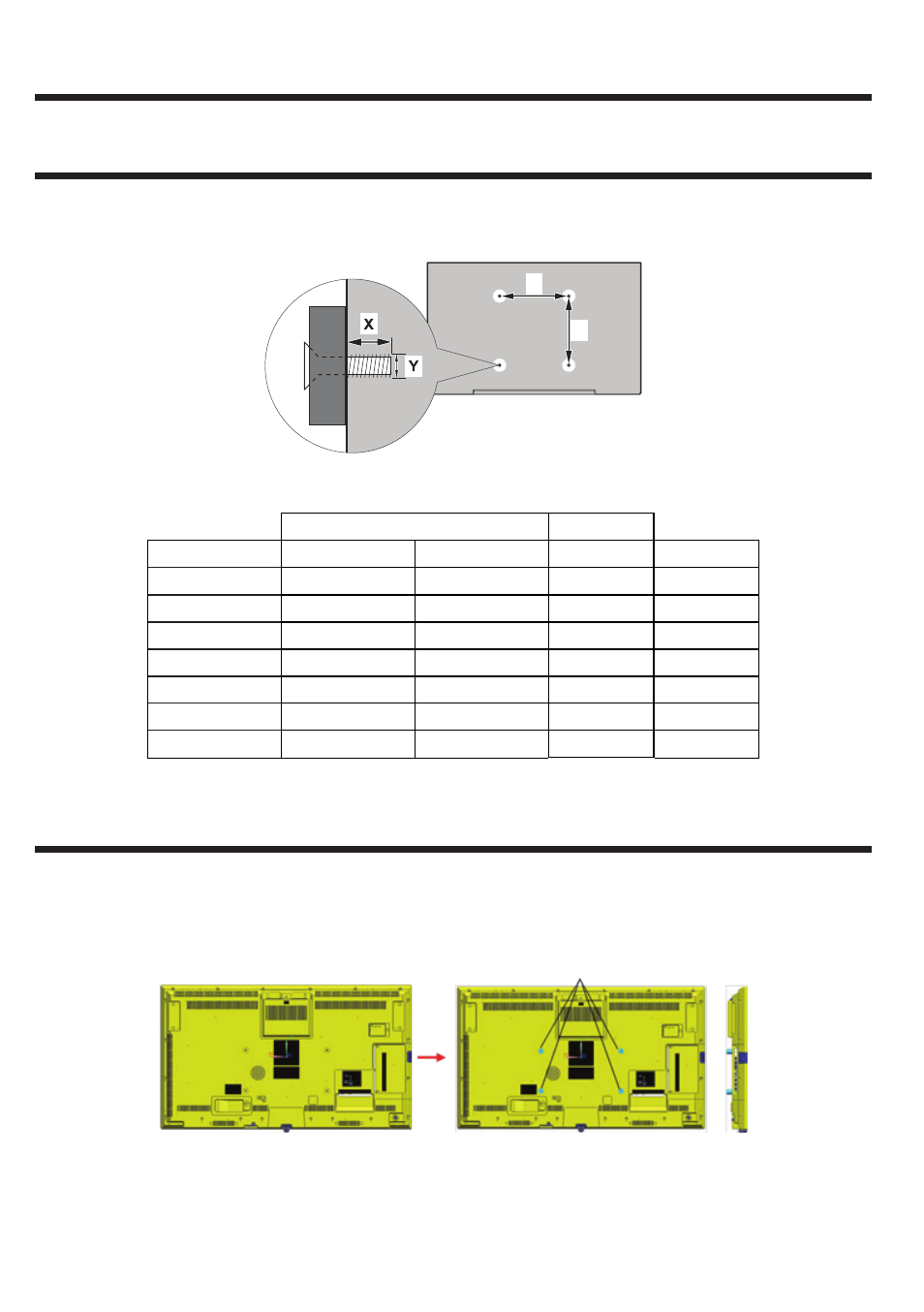

Mounting the display
VESA Wall Mount Measurements
W
H
Hole Pattern Sizes (mm)
Screw Sizes
Inch
W
H
max. (mm)
Thread (Y)
98"
800
400
12
M8
86"
600
400
12
M8
75"
600
400
10
M8
65"
400
400
10
M6
55"
400
200
13
M6
49"
200
200
12
M6
43"
200
200
9
M6
Cautions when attaching wall mount and stand
For 55SQE1,49SQE1,43SQE1
There is convex shape near VESA holes on back cover. When attaching wall mount or stand, insert the spacers between them.
Convex Shape Spacer
Note :
For detailed dimensions, please refer to the CAD drawings on Panasonic website.
