Attaching the function slot – Panasonic TH-86CQE1W 86" Class 4K UHD Commercial Monitor User Manual
Page 20
English
- 19 -
Attaching the Function SLOT
(For SQE1W)

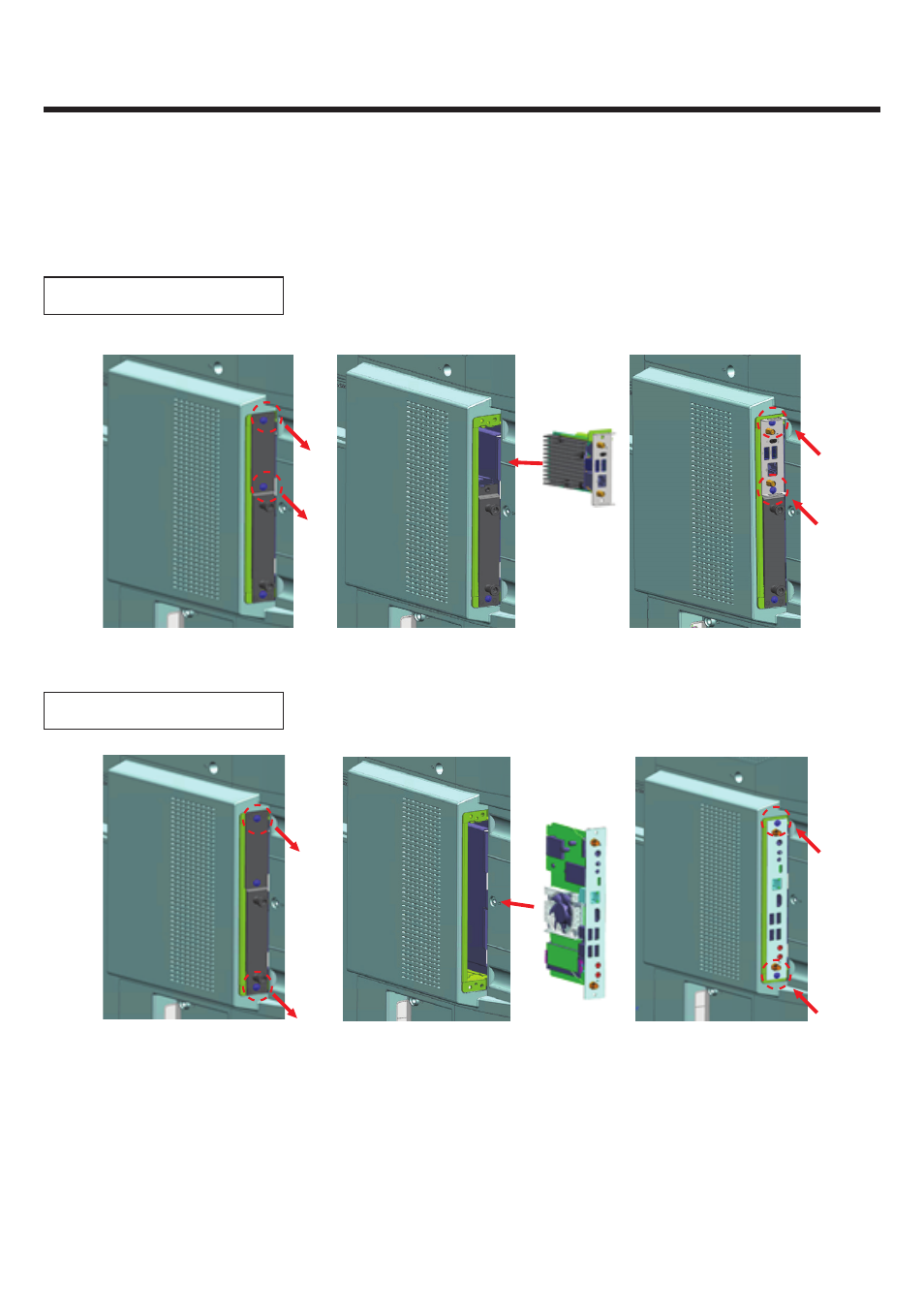

1. Remove the two screws and the main unit slot cover.
2. Insert the function board to the main unit slot.
3. Tighten the two screws.
Narrow-width function board
Wide-width function board
Note:
Before attaching or removing the function board, be sure to turn off the power of the display and
remove the power plug from the outlet
