English−96

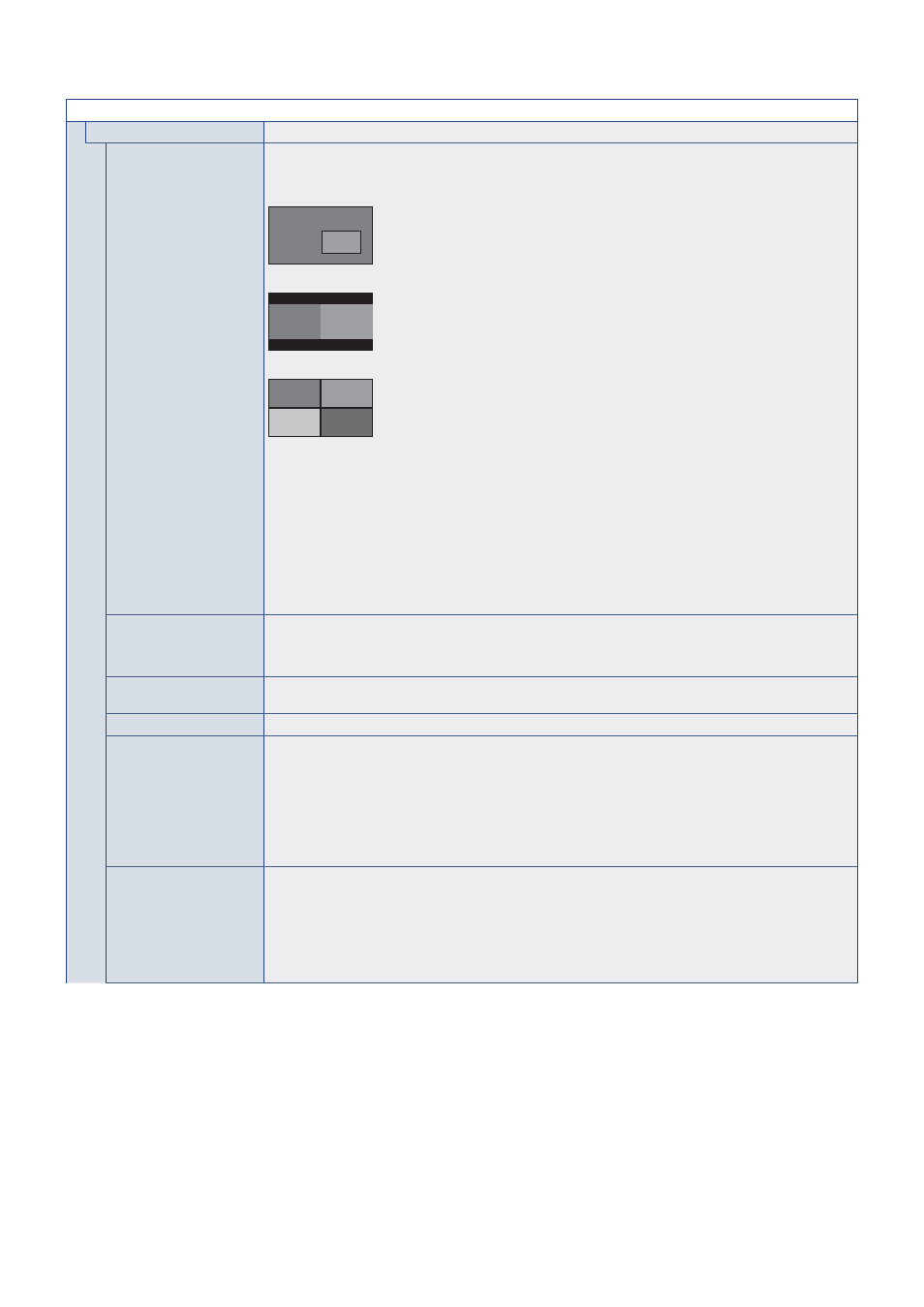

PICTURE MENU
MULTI PICTURE
MULTI PICTURE MODE
When [OFF] is selected, one picture is shown.
Select [2PIP], [2PBP] or [4PBP] then set input to each picture.
2PIP
2PBP
4PBP
A: PICTURE 1 B: PICTURE 2
C: PICTURE 3 D: PICTURE 4
NOTE:
• This function is released when the following functions are active: [MOTION] in [SCREEN
SAVER], [IMAGE FLIP] (except for [NONE]), [TILE MATRIX], [QUICK INPUT CHANGE],
[DUAL DAISY CHAIN MODE] or if input is set to [DisplayPort1] and the [DisplayPort
VERSION] is set to [1.4].
• STILL or POINT ZOOM functions will not work when this function is activated.
• If [CEC] is set to [MODE1] or [MODE2], [MULTI PICTURE] setting via remote control may
have some limitations.
• DisplayPort input has a limitation when picture number is set to [4PBP]. In the selection of
[DisplayPort1], [DisplayPort2], [OPTION (DisplayPort)], you can set two inputs only.
• When picture number is set to [4PBP], [ROTATE] is disabled.
AUDIO
Selects which audio source to use when [MULTI PICTURE] is enabled.
When either picture is selected, the sound of that picture is output.
NOTE:
This function deactivates [AUDIO INPUT].
ACTIVE PICTURE
When [MULTI PICTURE MODE] is [OFF], [PICTURE1] is the active picture. When [MULTI PICTURE
MODE] is set except for [OFF], select an active picture from several pictures.
ACTIVE FRAME
The active picture is shown within a white frame.
PICTURE SIZE
Sets the Active Picture size.
Press the SET/POINT ZOOM button to adjust the picture size. Press
button or CH/ZOOM+ button to
expand.
Press
button or CH/ZOOM– button to reduce.
NOTE:
• When [MULTI PICTURE MODE] is set to [2PIP] and [ACTIVE PICTURE] is set to
[PICTURE1], this function is deactivated.
• When [MULTI PICTURE MODE] is set to [4PBP], this function is deactivated.
PICTURE POSITION
Sets the Active Picture location.
Pressing the
button moves the Active Picture to the right, and pressing the
button moves it to the left.
Pressing the
button moves the Active Picture up, and pressing the
button moves it down.
NOTE:
• When [MULTI PICTURE MODE] is set to [2PIP] and [ACTIVE PICTURE] is set to
[PICTURE1], this function is deactivated.
• When [MULTI PICTURE MODE] is set to [4PBP], this function is deactivated.
