1.
Load roll paper or cut sheet paper in this size or larger: A4 (8.3 × 11.7 inches [210 × 297 mm]).
2.
Make sure the correct paper type and paper thickness are selected. Use plain paper or transparent
or colored paper for manual print head alignment.
3.
Press the
Black
ink/maintenance button.
4.
Press the down arrow button to select
Head Alignment
and press the right arrow button.
5.
Press the down arrow button to select
Alignment
and press the right arrow button.
6.
Select
Manual
and press the right arrow button.
7.
Press the up or down arrow button to select one of the following options:
•
Uni-D
aligns each color for uni-directional printing based on Light Cyan. You should choose this
option first.
•
Bi-D 2-color
aligns each color for bi-directional printing based on Light Cyan and Vivid Light
Magenta. You should choose this option second.
•
Bi-D All
aligns each color for bi-directional printing based on all colors. You should choose this
option last if you are not satisfied with the previous adjustment results .
8.
Press the
OK
button.

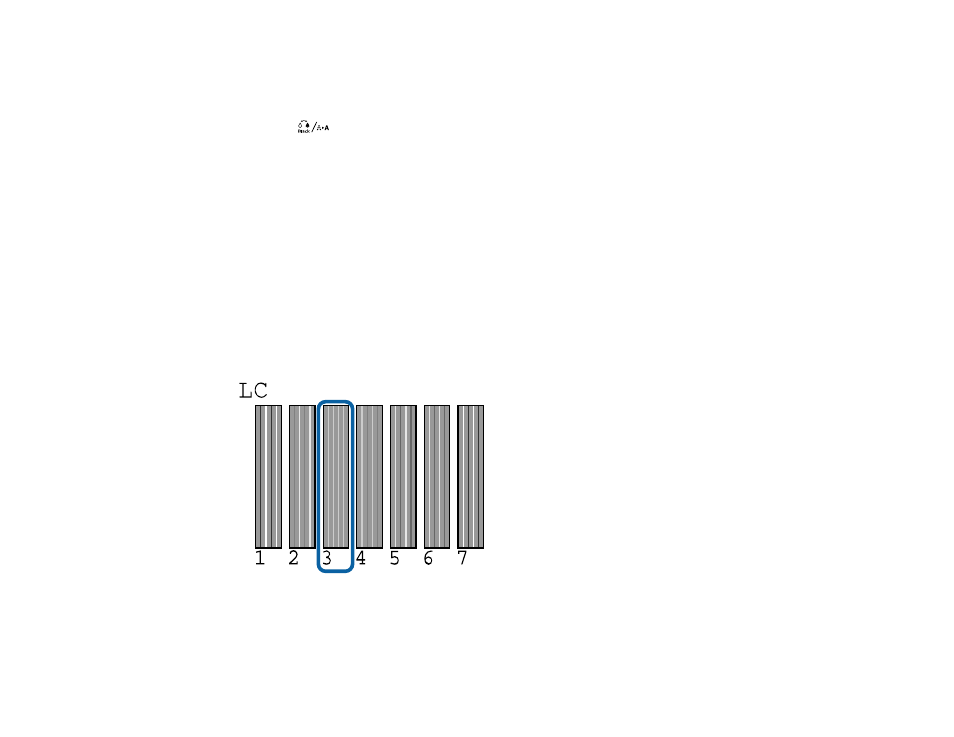

The alignment sheet prints.
Note:
When aligning on cut sheet paper, the alignment sheet is printed across multiple pages. Once
the first sheet prints, load the next piece of paper.
