7

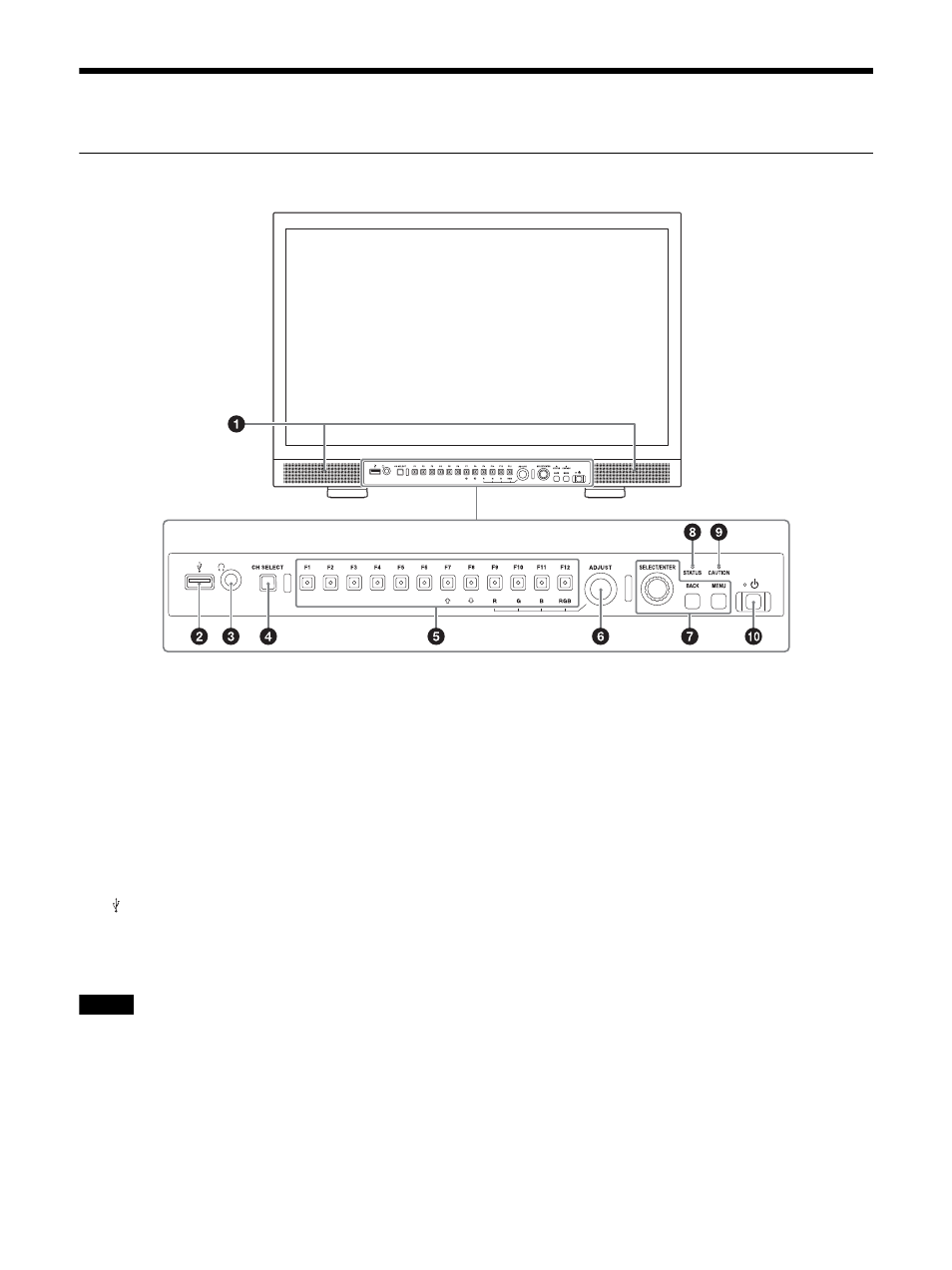

Location and Function of Parts and Controls
Front Panel

Speakers
Stereo (L + R) audio of the currently selected
input signal is output.
Output audio can be changed under “Audio
Preset” (page 27) in the “User Preset Setting”
menu.
Audio from the speaker is output from the AUDIO
output connector on the rear panel (see page 13).
Audio is not output when headphones are
connected to the

(headphones) jack.

(USB) connector
Used for loading 3D LUT files and future firmware
updates. For details, refer to “User LUT” (page 23)
and “Update” (page 37).
Note
Do not use this connector for battery charge
and/or other purposes other than those
explained in this document.
 
(headphones) jack
Stereo audio of the currently selected input
signal is output.
Output audio can be changed under “Audio
Preset” (page 27) in the “User Preset Setting”
menu.

CH SELECT button
Press to check the currently selected channel or
select other channels. For details, refer to
“Selecting a Channel” (page 17) and “Ch. Setting”
(page 21) in the “User Preset Setting” menu.

Function buttons
You can turn on/off the assigned function or
switch the settings in a sequential order.
The factory default settings are following:
F1 button: Ch.1
F2 button: Ch.2
F3 button: Ch.3
F4 button: Ch.4
F5 button: Mono
F6 button: Quad View
F7 button: Blue Only
F8 button: Internal Signal
F9 button: Int. Signal Pattern
F10 button: Marker
F11 button: Time Code
