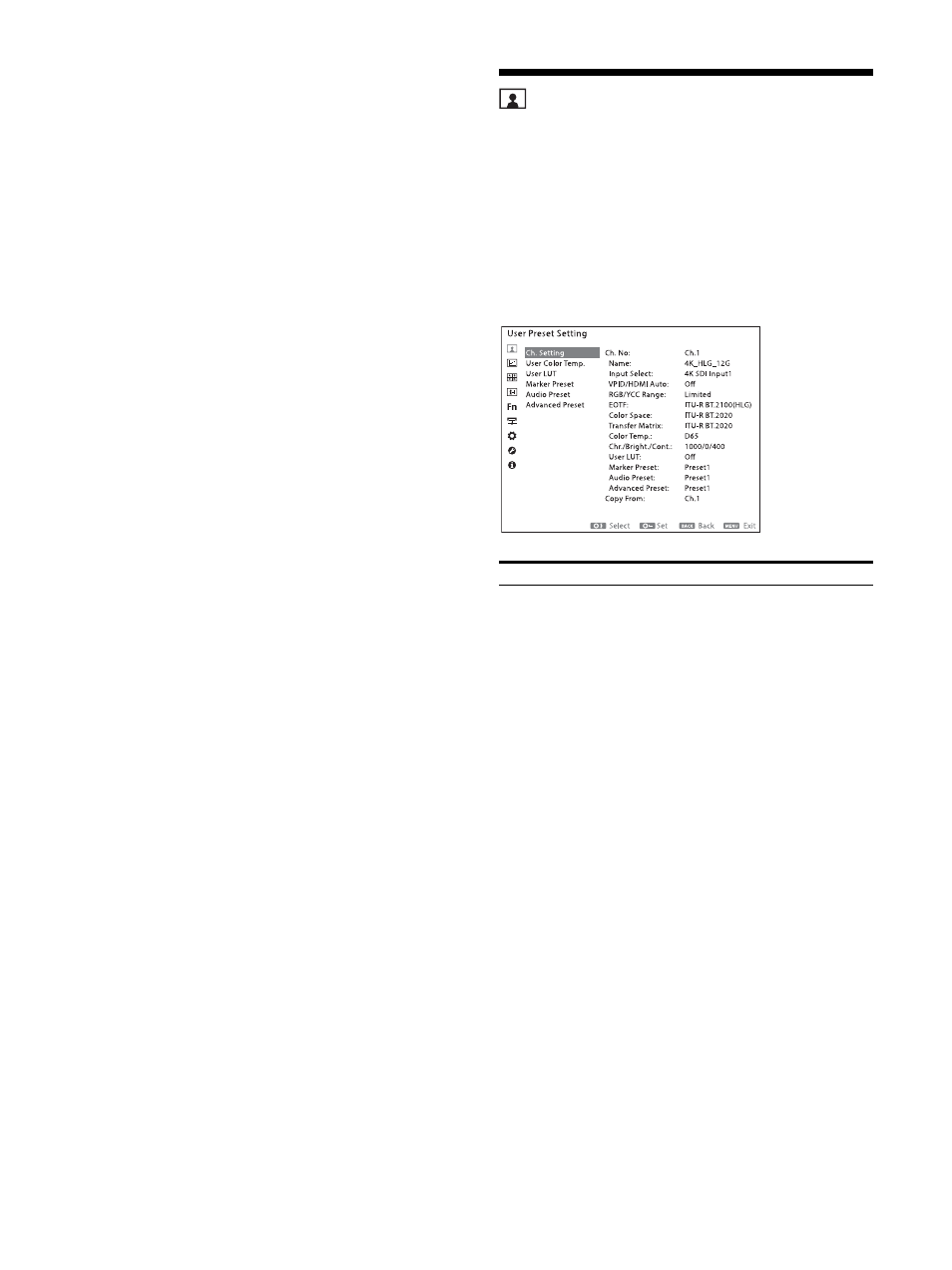

User Preset Setting menu

All channel settings can be configured or
adjusted. You can also copy the setting values
from one channel to apply them to another.

Ch. Setting

The input signal and video settings can be
adjusted.

Submenu

Setting

Ch. No

Select the channel to be configured.

Name

Sets the channel name.

Input Select

Select the connector and signal from
the following.

4K SDI Input1,2,3&4

4K SDI Input1&2

4K SDI Input3&4

4K SDI Input1

4K SDI Input3

2K SDI Input1&2

2K SDI Input3&4

2K SDI Input1

2K SDI Input2

2K SDI Input3

2K SDI Input4

HDMI

VPID/HDMI Auto

On:

“RGB/YCC Range,” “EOTF,”

“Color Space,” and “Transfer
Matrix” are automatically set as
appropriate based on the
Payload ID (VPID) signal
information when the SDI signal
is input, and set as appropriate
based on the HDMI InfoFrame
signal information when the
HDMI signal is input.

Off:

The values set for “RGB/YCC

Range,” “EOTF,” “Color Space,”
and “Transfer Matrix” are used.
