Page 13
13

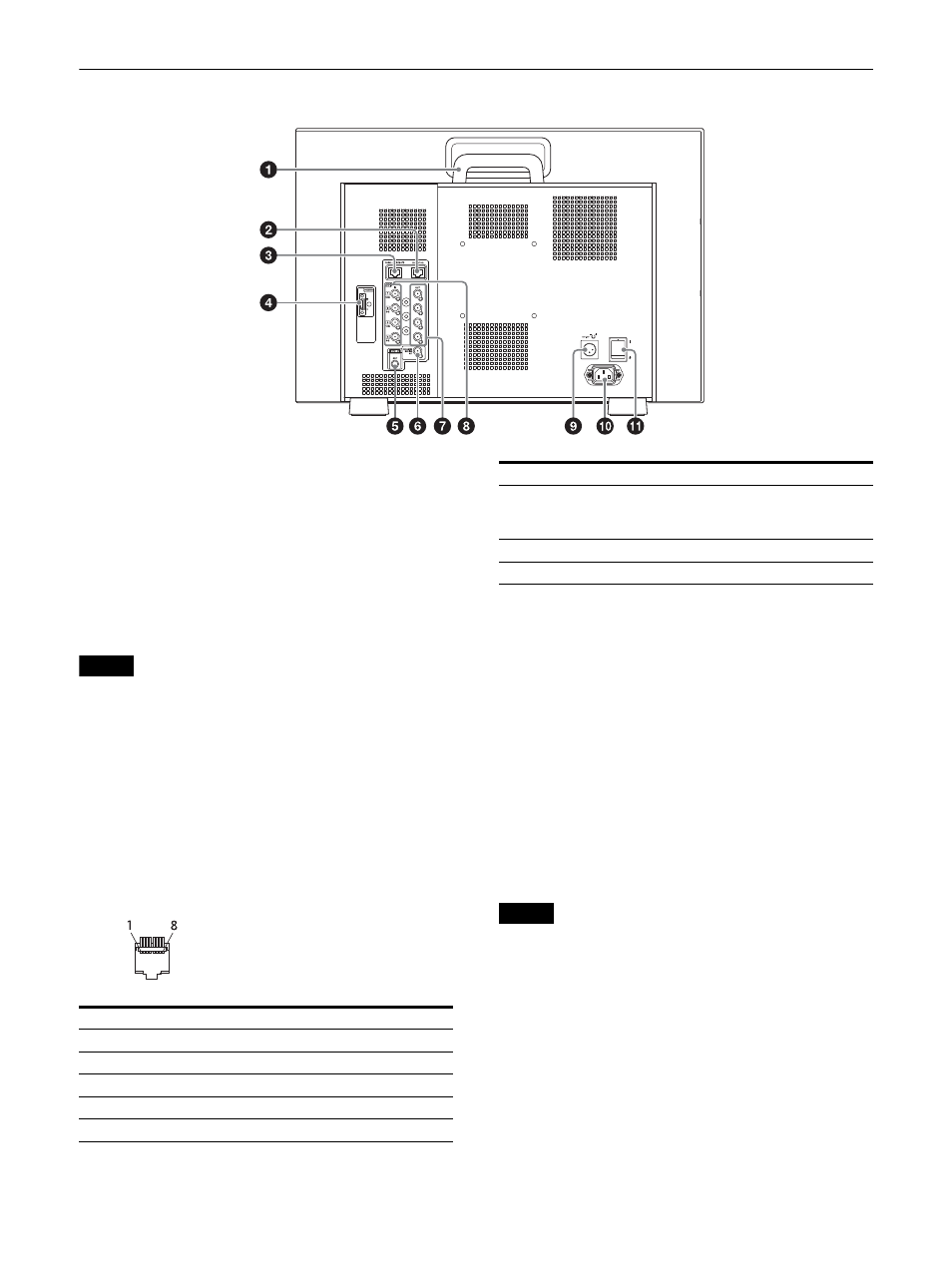

Rear Panel
Handle (For PVM-X2400 only)
When using the handle on PVM-X1800, attach
the supplied handle according to the steps on
page 16.
LAN (10/100) connector
Connect to the controller or an external device by
using a 10BASE-T/100BASE-TX LAN cable
(shielded type, optional).
Note
The connection speed may be affected by the
network system. This unit does not guarantee
the communication speed or quality of 10BASE-
T/100BASE-TX.
PARALLEL REMOTE connector (RJ-45, 8-
pin)
Forms a parallel control switch and controls this
unit externally.
Pin assignment
Wiring required to use the Remote Control
Connect the function you want to use with a
Remote Control to the Ground (Pin 5).
HDMI IN (HDMI input) connector
Input connector for HDMI signals.
HDMI (High-Definition Multimedia Interface) is
an interface that supports both video and audio
on a single digital connection, allowing you to
enjoy high quality digital picture and sound. The
HDMI specification supports HDCP (High-
bandwidth Digital Content Protection), a copy
protection technology that incorporates coding
technology for digital video signals.
Note
To input the HDMI signal equivalent to 4K, use an
HDMI cable bearing the Premium High Speed
logo within a length of 3 meters (Sony product
recommended).
To input other signals, we also recommend using
a Premium High Speed HDMI cable within a
length of 3 meters.
AUDIO output connector (stereo mini jack)
The input audio signal set in the currently
selected channel is output.
Pin number
Functions
1
“Ch.1” is specified.
2
“Ch.2” is specified.
3
“Ch.3” is specified.
4
“Ch.4” is specified.
5
GND
6
All the markers set under “Marker
Preset” in the “User Preset Setting”
menu are all turned on at once.
7
Tally Green
8
Tally Red
Pin number
Functions
