25

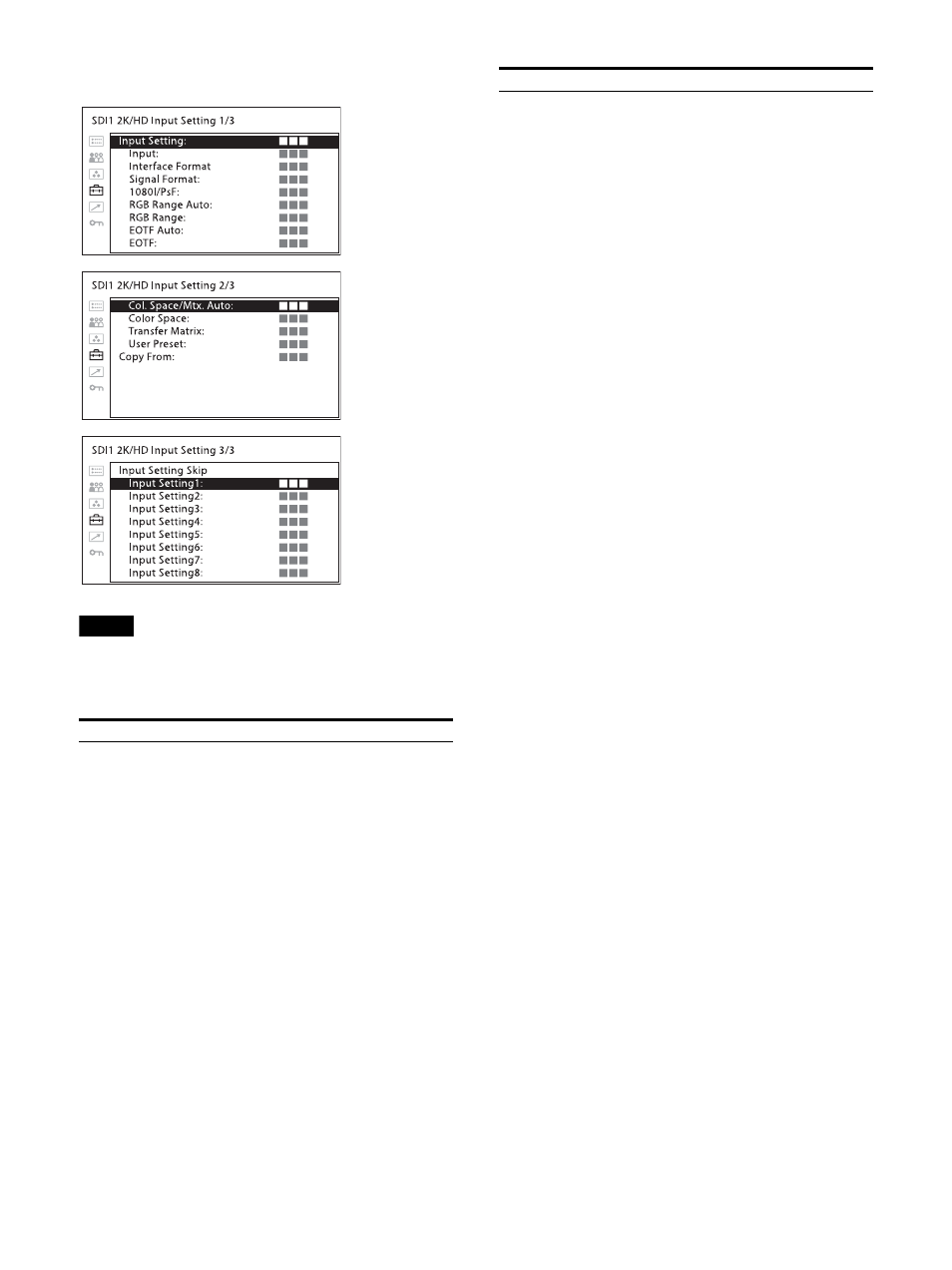

SDI1 2K/HD Input Setting / SDI2 2K/HD Input Setting
Note
In the “SDI2 2K/HD Input Setting” menu,
submenu items displayed on the “SDI2 2K/HD
Input Setting 2/3” screen differ.
Submenu
Setting
Input Setting
Sets the input setting of the SDI 2K
signal. The input settings from “Input
Setting1” to “Input Setting8” can be
individually set for the SDI1 2K and SDI2
2K signals.
Input Setting1 (Default value)
Input Setting2
Input Setting3
Input Setting4
Input Setting5
Input Setting6
Input Setting7
Input Setting8
Input
Set the input connector of the SDI 2K
signal.
Input1:
Select to use SDI IN
with
Single Link.
Input2:
Select to use SDI IN
with
Single Link.
Input3:
Select to use SDI IN
with
Single Link.
Input4:
Select to use SDI IN
with
Single Link.
Input1&2:
Select to use SDI IN
and SDI IN
with Dual Link.
Input3&4:
Select to use SDI IN
and SDI IN
with Dual Link.
Interface Format
Displays the interface format of the SDI
2K signal.
Single-Link 3G/HD-SDI:
For Single
Link. (Default value)
Dual-Link 3G/HD-SDI:
For Dual Link
of 3G/HD-SDI.
Signal Format
Sets the signal format of the SDI 2K
signal.
Auto (Default value)
422 YCbCr 10bit
444 RGB 10bit
444 YCbCr 10bit
444 RGB 12bit
444 YCbCr 12bit
444 XYZ 12bit
1080I/PsF
Set how to display when 50I, 59.94I,
60I, 25PsF, 29.97PsF, or 30PsF SDI 2K
signals are input.
23.98 Hz and 24 Hz signals are
processed as the PsF signal.
Auto:
When Payload ID is added to
SDI signals, they are processed
based on the ID data. They are
processed as the interlace
signals without the Payload ID.
(Default value)
PsF:
Processes as the PsF signal.
Interlace:
Processes as the interlace
signal.
RGB Range Auto
Select how to set the RGB Range.
On:
Use the RGB Range according to
the input signal information.
(Default value)
Off:
Use the RGB Range that was set
in “RGB Range.”
RGB Range
Select from the following when “RGB
Range Auto” is set to “Off” and the
RGB signal is input.
Full:
0 to 1023 (10bit) / 0 to 4095
(12bit)
Limited:
64 to 940 (10bit) / 256 to
3760 (12bit) (Default value)
SDI Full Range
1)
:
4 to 1019 (10bit) /
16 to 4076 (12bit)
1) This manual regards the Full Range
signals that are scaled to the
quantized value except the inhibit
code on the SDI standard as the SDI
Full Range.
