Page 18
18

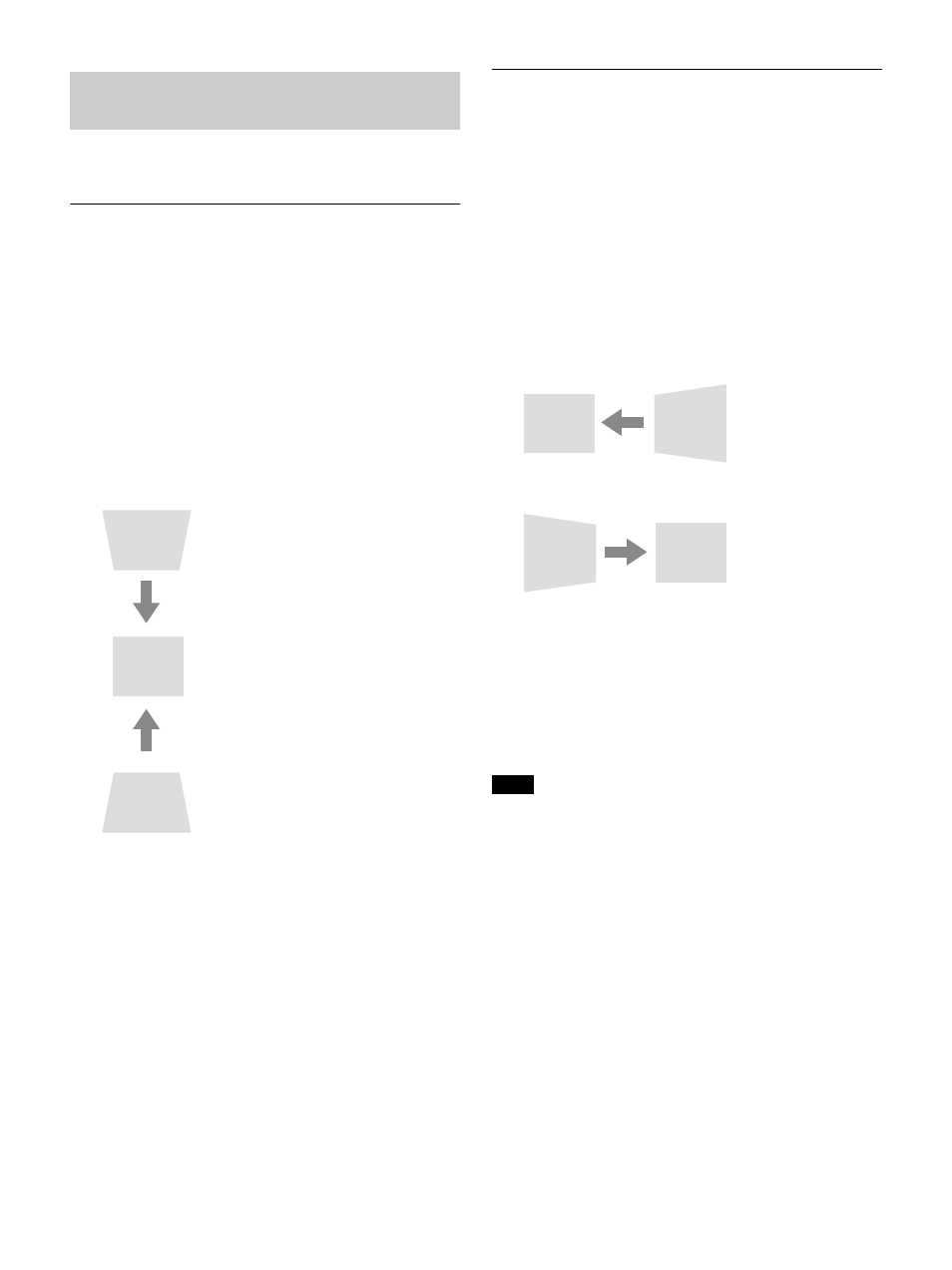

If the screen is tilted, or you are projecting from an
oblique angle, perform keystone adjustment.
If the projected image is trapezoidally-distorted in
the vertical plane
1
Press the KEYSTONE key on the Remote
Commander once or select “Screen Fitting” in
the Installation menu (page 33).
2
Select “V Keystone.”
3
Adjust the value using
/
.
The higher the setting, the narrower the top of
the projected image. The lower the setting,
the narrower the bottom of the projected
image.
Press the RESET key to restore the projected
image before adjustment.
*1
If the projected image is trapezoidally-distorted in
the lateral plane
1
Press the KEYSTONE key on the Remote
Commander once or select “Screen Fitting” in
the Installation menu (page 33).
2
Select “H Keystone.”
3
Adjust the value using
/
.
The higher the setting, the narrower the right
side of the projected image. The lower the
setting, the narrower the left side of the
projected image.
Press the RESET key to restore the projected
image before adjustment.
*1
*1: The setting may not be reset depending on the
combination of adjustment values of the Screen Fitting
setting items. In this case, reset all of the Screen Fitting
setting items.
Keystone adjustment is an electronic correction.
Consequently the image quality may deteriorate.
Depending on the position adjusted with the lens shift
feature, performing keystone adjustment may change
the aspect ratio of the original image, or the projected
image may be distorted.
Correcting for Trapezoidal Distortion of the
Projected Image (Keystone Adjustment)
Increase setting
Decrease setting
Notes
Increase the setting
Decrease setting
