Using a LAN terminal

When using network features via the LAN terminal, be sure to check if “LAN Setting” is set to “LAN Port” (page 31).

Connect the projector to the network that is constructed to control the access from the internet, such as LAN. If the
projector is connected directly to the internet, the security risk is increased.

The HDBaseT transmitter is used when connecting the projector to a computer, video device, or network
equipment.

Notes for connecting this unit to the HDBaseT transmitter

Ask a professional or Sony dealer to perform wiring. If wiring has been insufficiently performed, it
affects the transmission characteristics of the cable, and causes broken or unstable images.

Connect the cable directly to the HDBaseT transmitter without going through a hub or router.

Use cables that meet the following conditions.
- CAT5e or higher
- Shielded type (covering connectors)
- Straight wire connection
- Single wire

When installing the cables, use a cable tester, cable analyzer, or similar device to check if the cables
meet the CAT5e or higher requirement. If there is a transit connector between this unit and the HDBaseT
transmitter, include it when measuring.

To reduce the affect of noise, install and use the cable in a manner where it is not rolled up and it is as
straight as possible.

Install the cable away from the other cables (especially the power cable).

When installing multiple cables, do not bind them and keep the running parallel distance as short as
possible.

The transmittable distance of the cable is 100 m (approx. 328 feet) maximum. If it exceeds 100 m
(approx. 328 feet), it may cause broken images or a malfunction in LAN communication. Do not use the
HDBaseT transmitter beyond the maximum transmittable distance of the cable.

For operation or function problems caused by devices of other manufacturers, contact the relevant
manufacturer.

Connecting to a Network Equipment

Notes

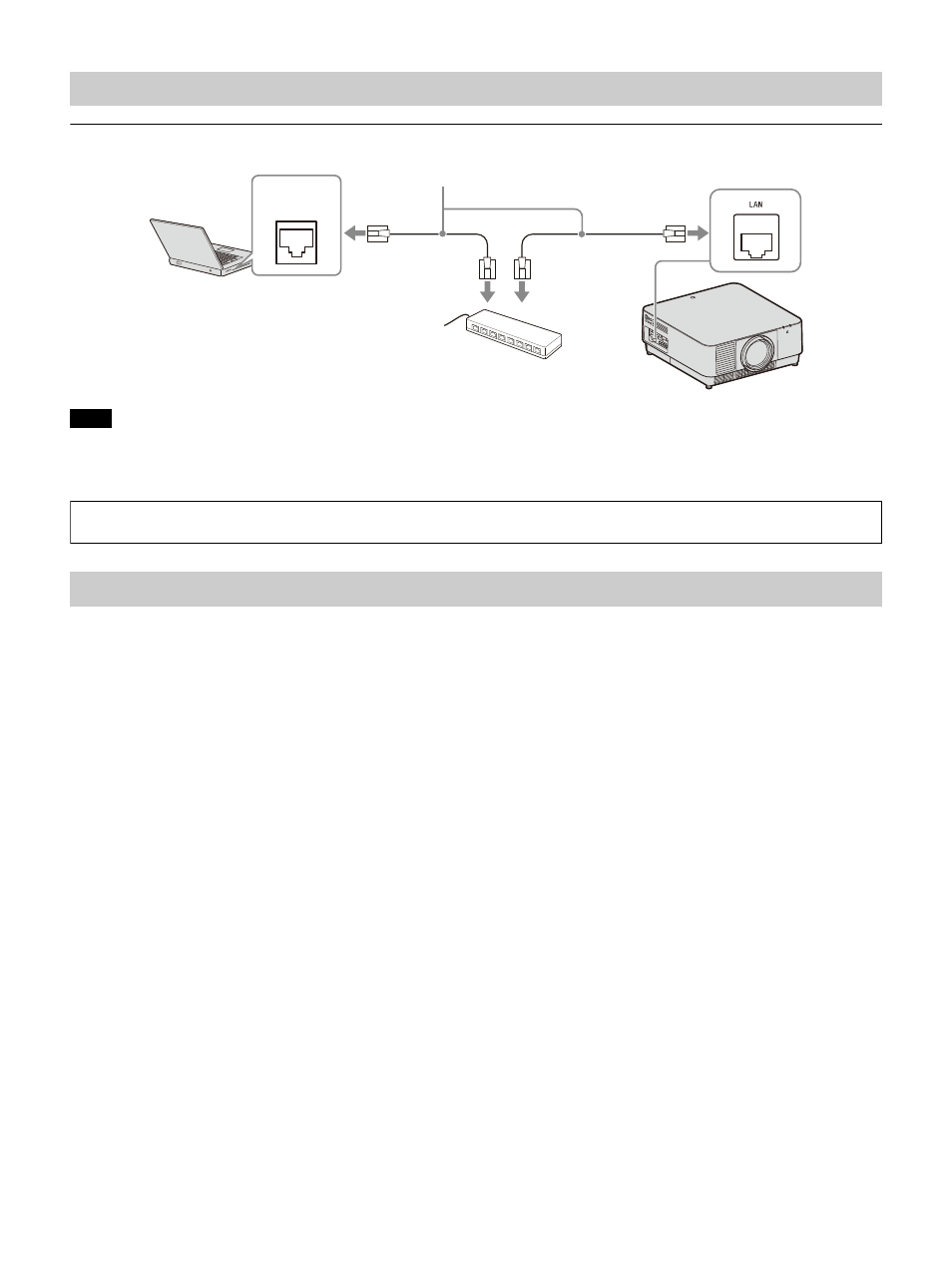

Connecting to a HDBaseT™ Device

LAN cable (straight type) (not supplied)

Computer

LAN
terminal

Hub, router, etc

When you monitor and control the projector via the network, access the Setup page of the projector (page 41) via a Web
browser and enable the desired control protocol.
