INPUT D
This terminal is used when connecting the projector to a video device with a HDMI output terminal.
Use an HDMI cable with the HDMI logo.
The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) signal or CEC (Consumer Electronics
Control) signal.
To fix the HDMI cable
As shown in the following figure, fix the HDMI cable to the screw hole above the terminal using a
commercially available-cable bracket.
OUTPUT
This terminal outputs projected images. The images are output when a computer signal is input from the
RGB input terminal (INPUT A, INPUT B) or a video signal is input from the YP
B
P
R
input terminal (INPUT A).
Notes

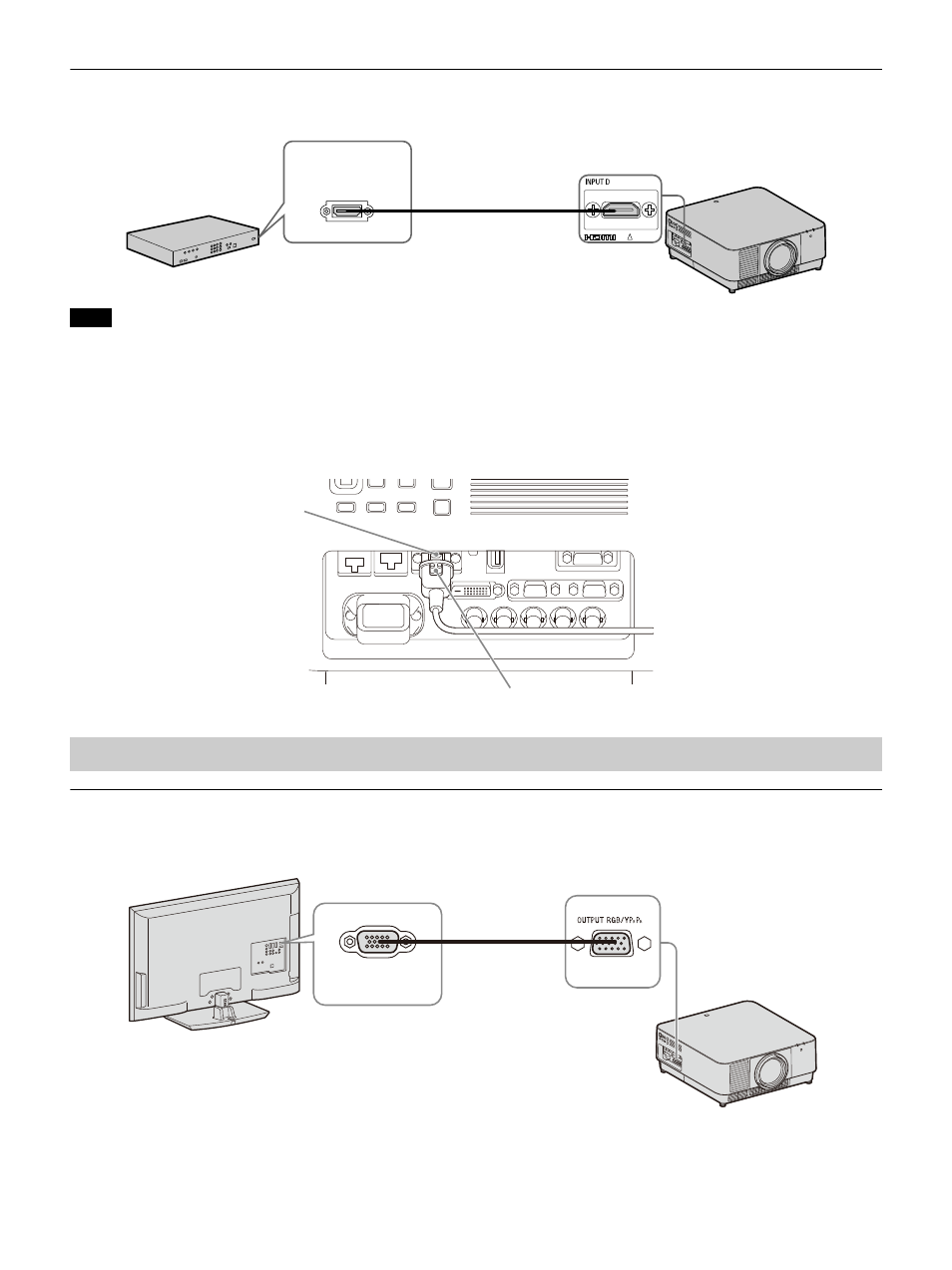

Connecting to an External Monitor
INPUT D
Video device
HDMI output
terminal
HDMI cable
(not supplied)
Screw hole
Cable bracket (not supplied)
Display device
RGB input
terminal
Mini D-sub 15-
pin cable
(not supplied)
