Connecting a Component Video Source
If your video equipment has component video connectors (three
connectors labeled either Y/Cb/Cr or Y/Pb/Pr), you will need a
component-to-VGA video cable or a component video cable and
adapter. You can order the component-to-VGA cable (ELPKC19)
from Epson (see page 20) or an electronics dealer.
1. Connect the component end of the cable (3 male RCA) to the
color-coded Y/Cb/Cr (or Y/Pb/Pr) connectors on your player.
2. Connect the other end of the cable (HD15 male) to the blue
Computer1 or Computer2 port on the projector.
3. You may need to change the Input Signal setting in the
projector’s Signal menu to Auto (see page 74).
4. If you want to play sound through the projector, see page 33 for
instructions on connecting an audio cable.
5. When you’ve finished making connections, see page 40 for
instructions on turning on the projector and page 43 for
instructions on displaying and adjusting the image.
Once the projector is turned on, select the image source by
pressing the
Source Search button on the projector or remote
control.

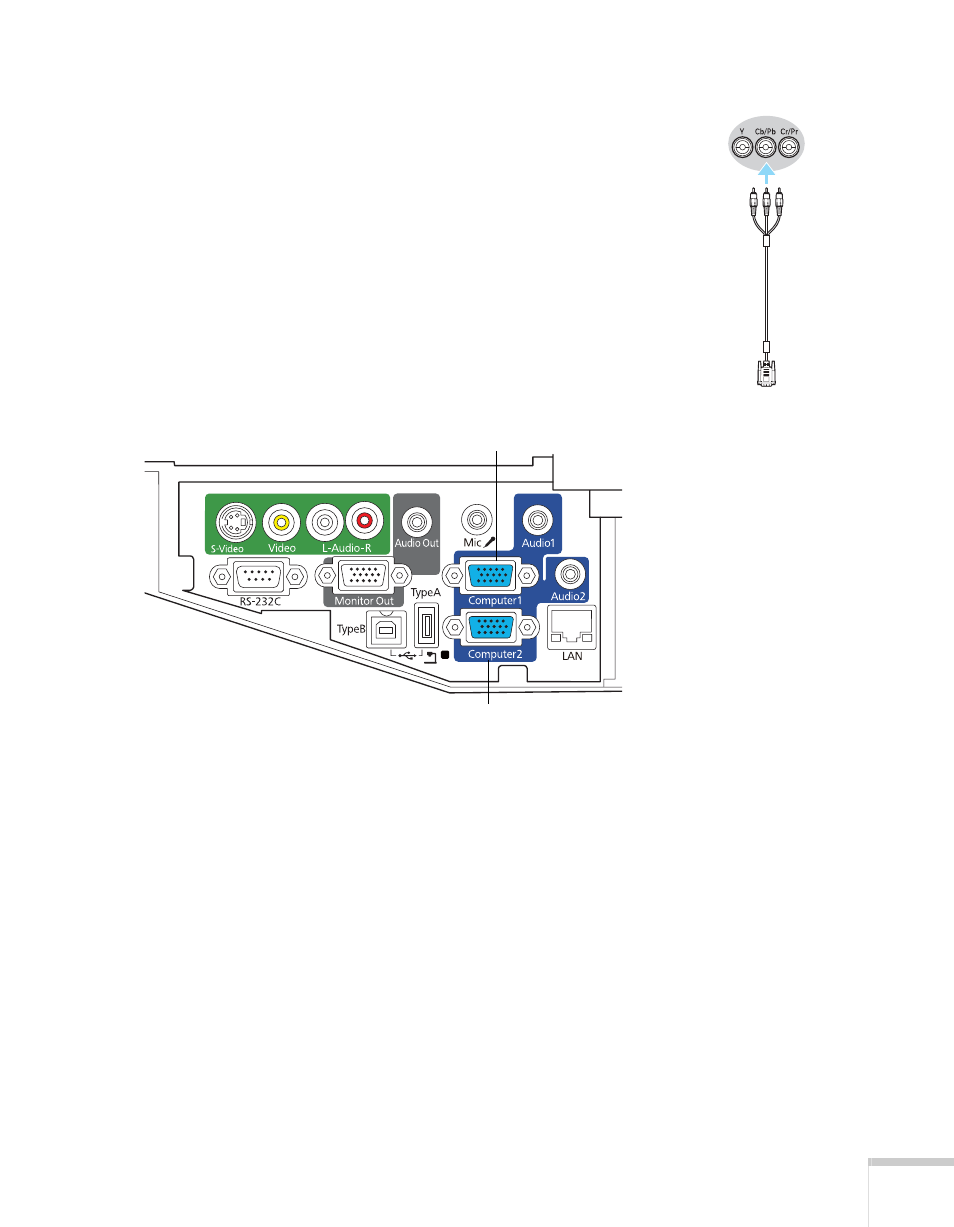

Component-to-
VGA cable
(ELPKC19)
Connect component-
to-VGA cable
Connect component-
to-VGA cable
