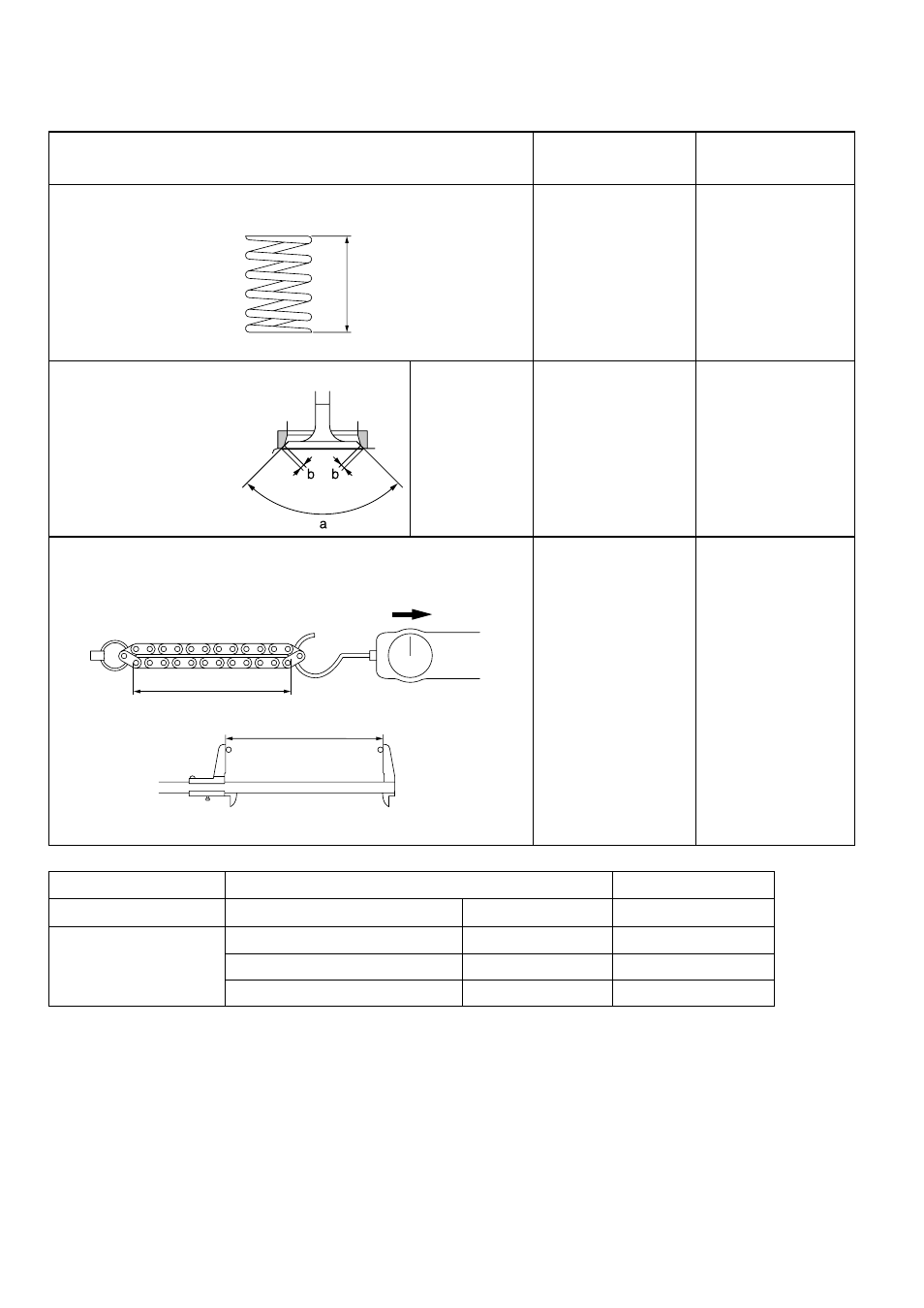

ITEM STD Limit
VALVE SPRING FREE LENGTH
27.4
(1.0787)
VALVE SEAT ANGLE
(INTAKE AND EXHAUST)
* Valve cutter angle (a)
* Valve contact width (b)
Intake
Exhaust
a: 90°
b: 0.7 - 1.0
(0.0276 - 0.0394)
2.0
(0.0787)
CHAIN LENGTH
307.1
(12.0906)
310.6
(12.2284)
160N (16kgf.)
F
L
L
Compression pressure (kg
●
cm 2 / 500 rpm) 5.0
Fuel consumption Continuous load / 3600 rpm (L / Hr) 3.0
Lubricant
Capacity (L) 1.0
Effi cacy (mL) 500
Consumption (mL / Hr) 8 - 13
※ Oil consumption has been measured under-following condition :
● Good break-in operation has been fi nished.
● Oil : 10W-30 (Grade SE)
● Load : Continuous load / 3600 rpm
Unit: mm (in.)
