- 24 -
Step
Parts to remove
Remarks and procedures
Fasteners
26
Connecting rod and piston
(1) Scrape off any carbon from the cylinder and the
piston head, then remove the connecting rod bolt.
(2) Remove the connecting rod cap.
(3) Rotate the crankshaft until the piston comes to its
top position. Push the connecting rod and remove
the piston from the upper part of the cylinder.
10 mm box spanner
M7 × 40mm : 2 pcs.
27
Piston and piston rings
(1) Remove the piston clips (2 pcs.). Take out the
piston pin and then remove the piston from the
connecting rod small end, taking care not to
damage the connecting rod small end.
(2) Remove the piston rings from the piston by
spreading them at the gap. Take special care not to
damage the rings when doing this.

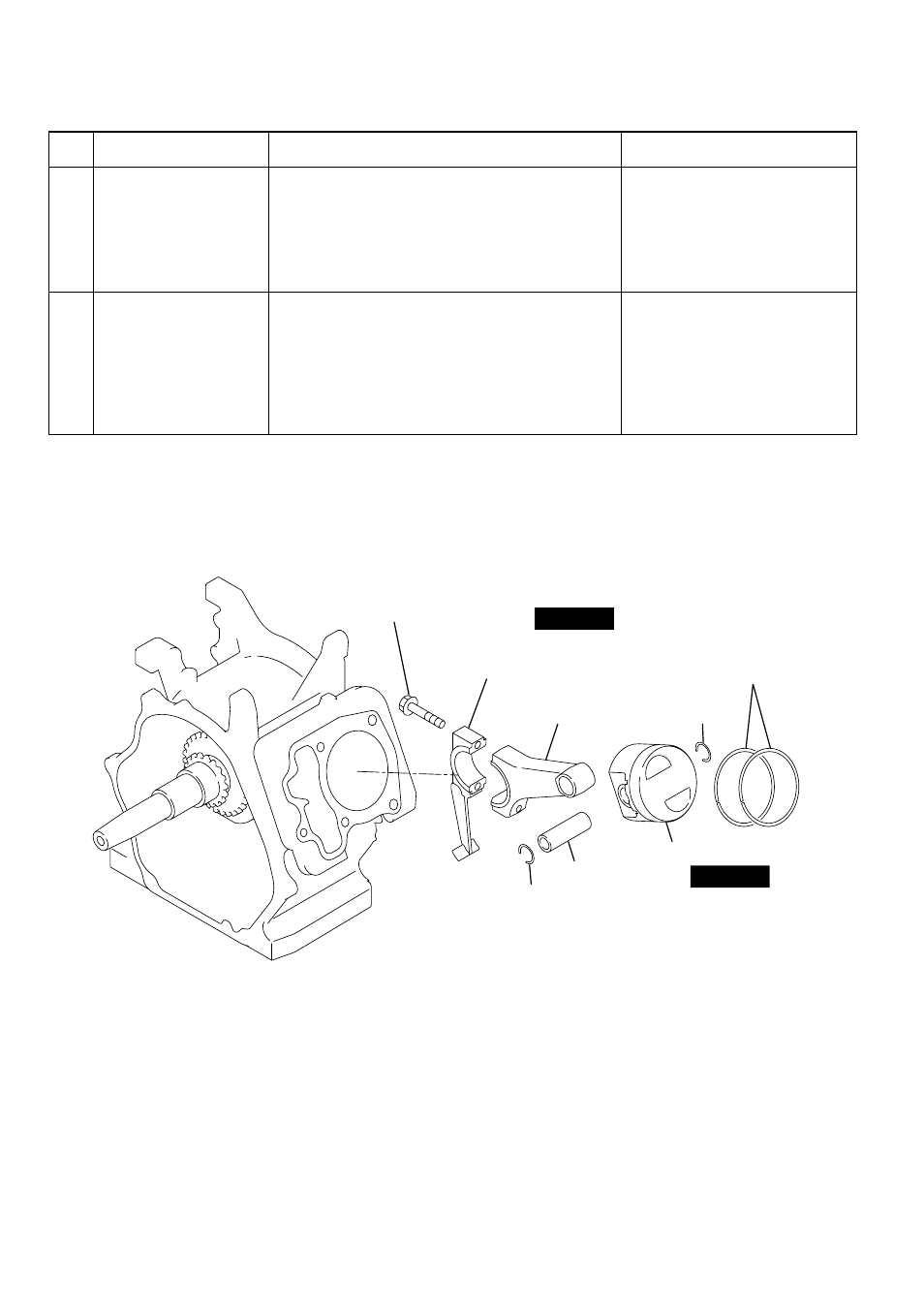

STEP 26
STEP 27
CONNECTING ROD
PISTON
PISTON RING
PISTON PIN
CLIP
M7 x 40
CONNECTING ROD BOLT : 2 pcs.
CLIP
CONNECTING ROD CAP
