- 27 -

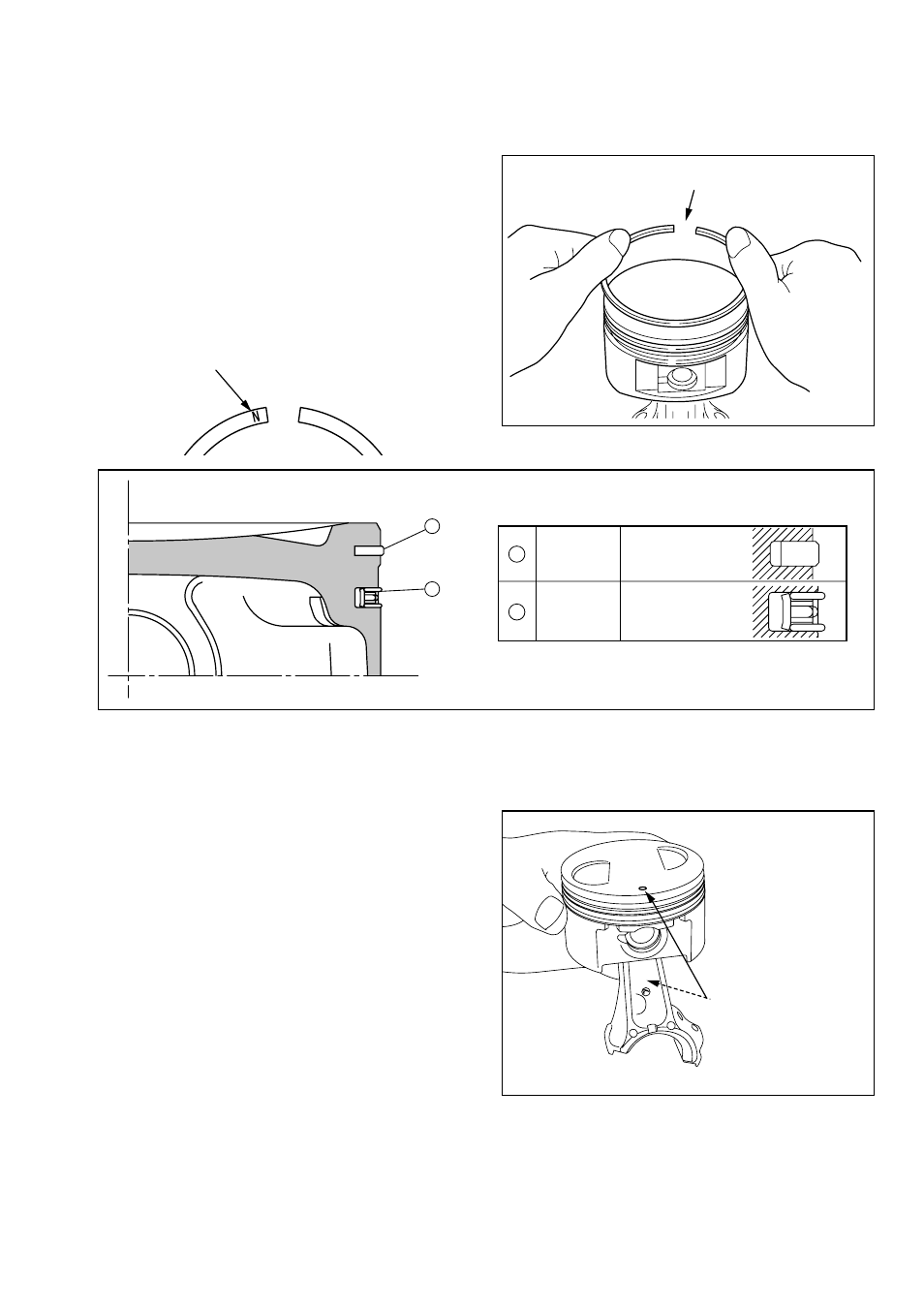

(3) PISTON AND PISTON RINGS
Install each piston ring in the correct groove of the
piston by widening it enough to slide it over the
piston.
NOTE: Be careful not to twist the rings too much,
as they may be damaged. Install the oil ring
fi rst, followed by the top ring.
When installing the piston ring, make sure
that the "N" mark is face up.
OPEN ENDS OF PISTON RING
TOP
RING
OIL
RING
1
2
BARREL
THREE-PIECE
CONSTRUCTION
1
2
MARK "N"
(4) PISTON AND CONNECTING ROD
The piston is attached to the connecting rod by the
piston pin.
When assembling the piston and connecting rod,
make sure to align the mark on the piston head with
the "MAG" mark on the connecting rod.
NOTE1: Before assembling the connecting rod,
apply oil to its small end.
NOTE2: Be sure to insert the clips in the two ends
of the piston pin and check the clips for any
play.
MAG
When assembling the
piston and connecting
rod, make sure to align
the mark on the piston
head with the ‘MAG’
mark on the connecting
rod.
