Subaru Robin EX30 - Manual (Page 21)

- 18 -
Step Parts to remove Remarks and procedures Fasteners
16 Electric starter (option)
Control box,
Diode rectifi er,
Magnetic switch (1) Disconnect the grounding cable from battery.
(2) Disconnect the wire leading from the key switch
“ST” terminal to the magnetic switch.
(3) Disconnect the wire that connects the positive
terminal of the battery to the magnetic switch.
(4) Remove the electric starter.
12 mm box spanner
M8 nuts
12 mm box spanner

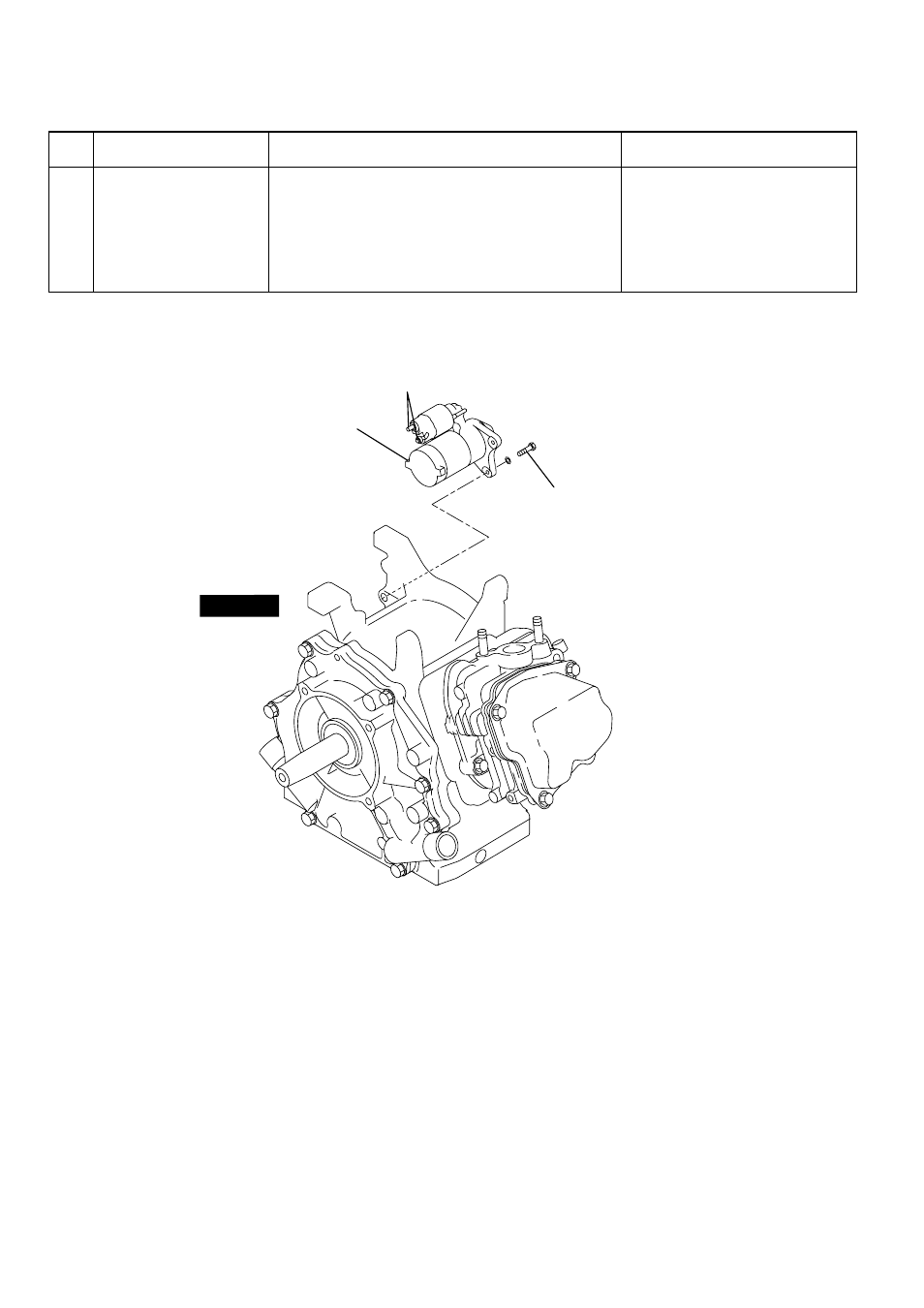

ELECTRIC STARTER
(option)
STEP 16
M8 x 28 BOLT : 2 pcs.
M8 NUT : 1 pc.
