- 16 -
Step Parts to remove Remarks and procedures Fasteners
10 Governor system (1) Loosen the bolt and remove the governor lever
from the governor shaft. There is no need to
remove the bolt.
(2) Remove the governor spring.
(3) Remove the governor rod and the rod spring from
the carburetor.
14 mm spanner
11 Carburetor, Insulator (1) Remove the carburetor from the cylinder head.
(2) Remove the insulator.
12 Speed control lever and
Bracket Remove the speed control lever and bracket from the
cylinder head. 10 mm box spanner
M6 x 12mm : 2 pcs.

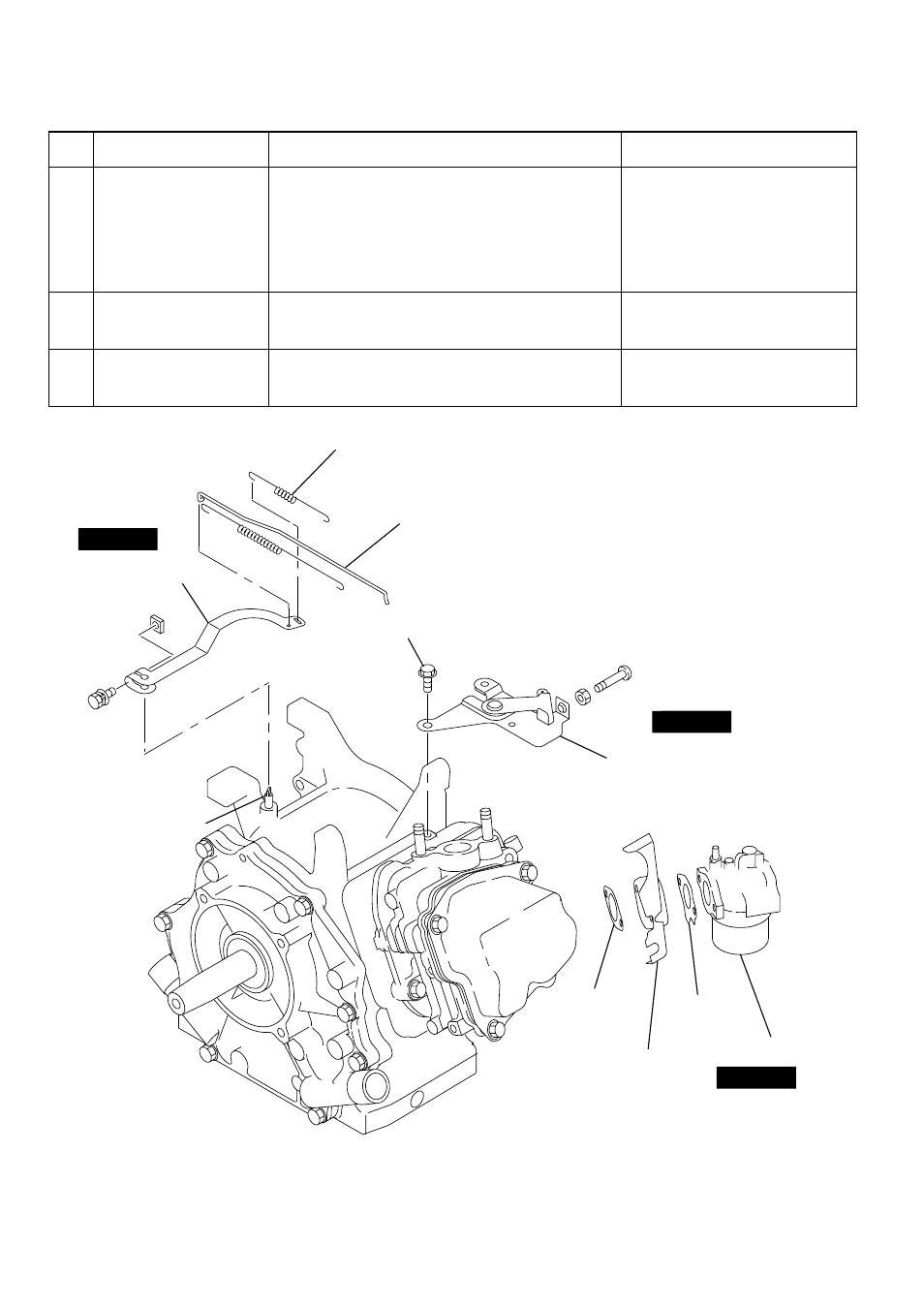

STEP 10
STEP 11
STEP 12
GOVERNOR LEVER
GOVERNOR ROD
and ROD SPRING
GOVERNOR SPRING
SPEED CONTROL LEVER
and BRACKET
INSULATOR
GASKET
GASKET
M6 x 12 BOLT : 2 pcs.
CARBURETOR
GOVERNOR SHAFT
