- 31 -

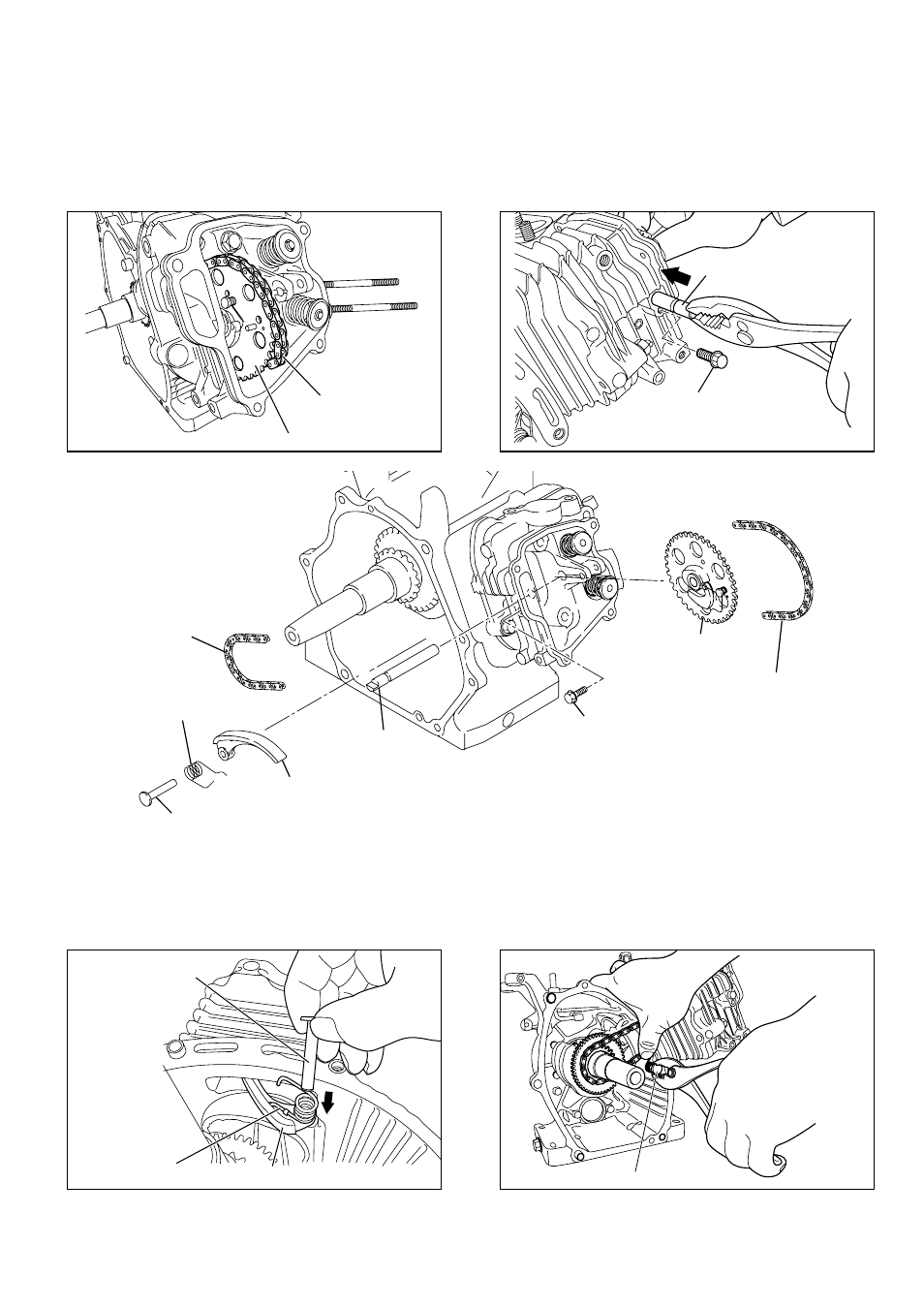

(10) MOUNTING THE CAMSHAFT ON THE CYLINDER HEAD
Mount the camshaft on the cylinder head by inserting the pin (camshaft) through the head.
Fix the bolt to prevent the pin (camshaft) from coming out.
CAMSHAFT
CHAIN M6 x 12 BOLT : 1 pc.
Bolt used to prevent the
pin (camshaft) from coming out
PIN (CAMSHAFT)
TENSIONER
PIN(TENSIONER)
SPRING(TENSIONER)
PIN (TENSIONER)
(11) MOUNTING THE TENSIONER
PIN (CAMSHAFT)
TENSIONER
SPRING
(TENSIONER)
CHAIN
PIN (TENSIONER)
M6 x 12 BOLT : 1 pc.
Bolt used to prevent the
pin (camshaft) from coming out
CAMSHAFT
CHAIN
