- 19 -

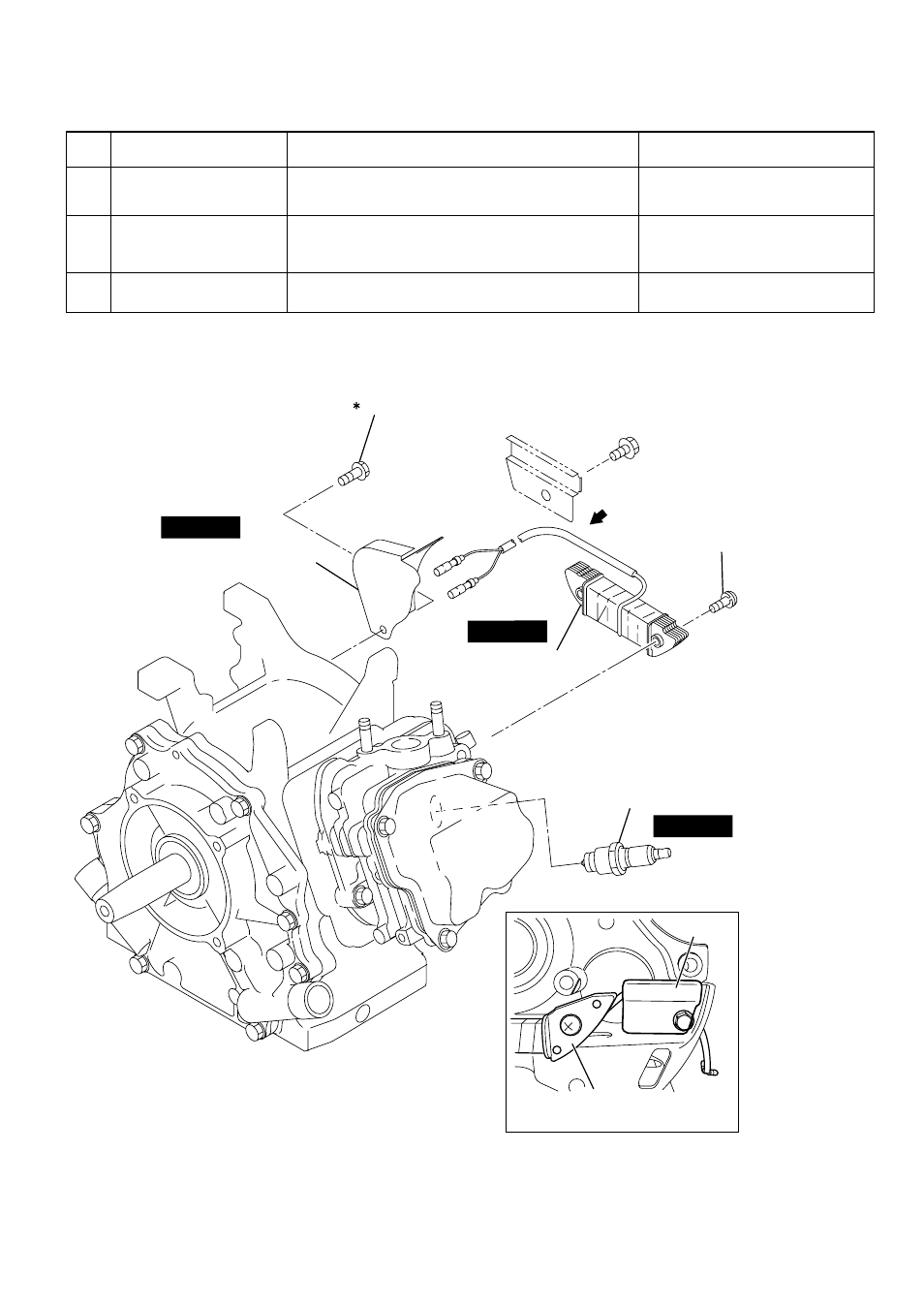

Step Parts to remove Remarks and procedures Fasteners
17 Baffl e 1 (case) Remove the baffl e 1 (case) M8 x 12mm : 1 pc.
18 Charge coil (option) Remove the charge coil.
(Remove the wire clamp together) box spanner
M6 x 20mm : 2 pcs.
+ screwdriver
19 Spark plug Remove the spark plug from the cylinder head. 21 mm plug wrench
SPARK PLUG
CLAMP
VIEW A
A
BAFFLE 1 (CASE)
CHARGE COIL
(OPTION)
CHARGE COIL
M8 x 12 FLANGE BOLT : 1 pc.
For the model without electric starter.
STEP 17
STEP 18
STEP 19
M6 x 20
SCREW & WASHER : 2 pcs.
