(22) GOVERNOR LEVER
(a) Pass the governor rod through the rod spring, then connect to the throttle lever of the carburetor.
(b) Attach the governor rod and rod spring to the governor lever, then mount the governor lever on the governor
shaft. Do not adjust the bolt on the governor lever yet.
(c) Connect the governor lever and the speed control lever with the governor spring.
NOTE: See page 38 for details on the adjustment method after mounting air cleaner base.

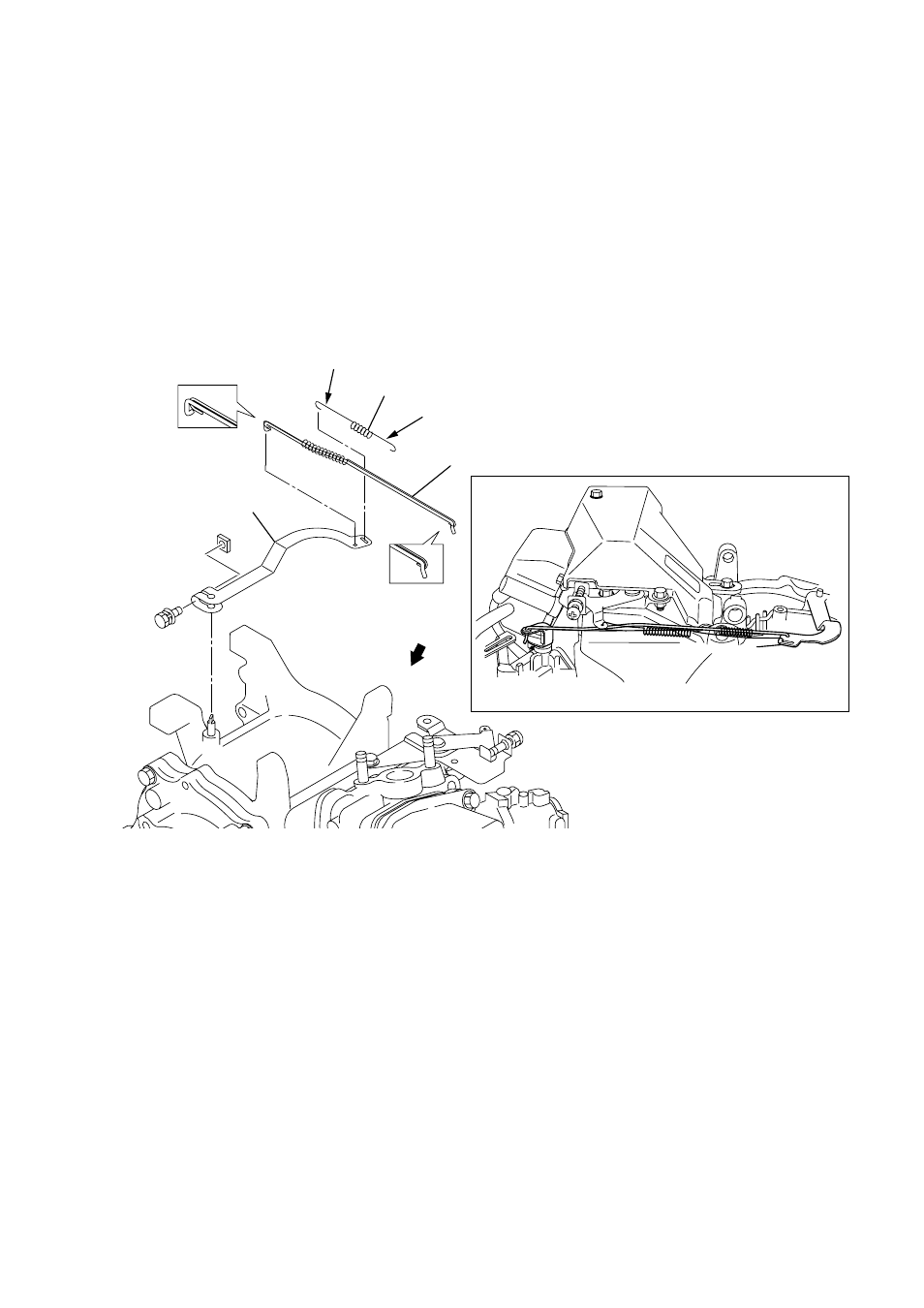

GOVERNOR LEVER
GOVERNOR ROD
and ROD SPRING
GOVERNOR SPRING
Short length side
Long length side
A
VIEW A
