- 7 -

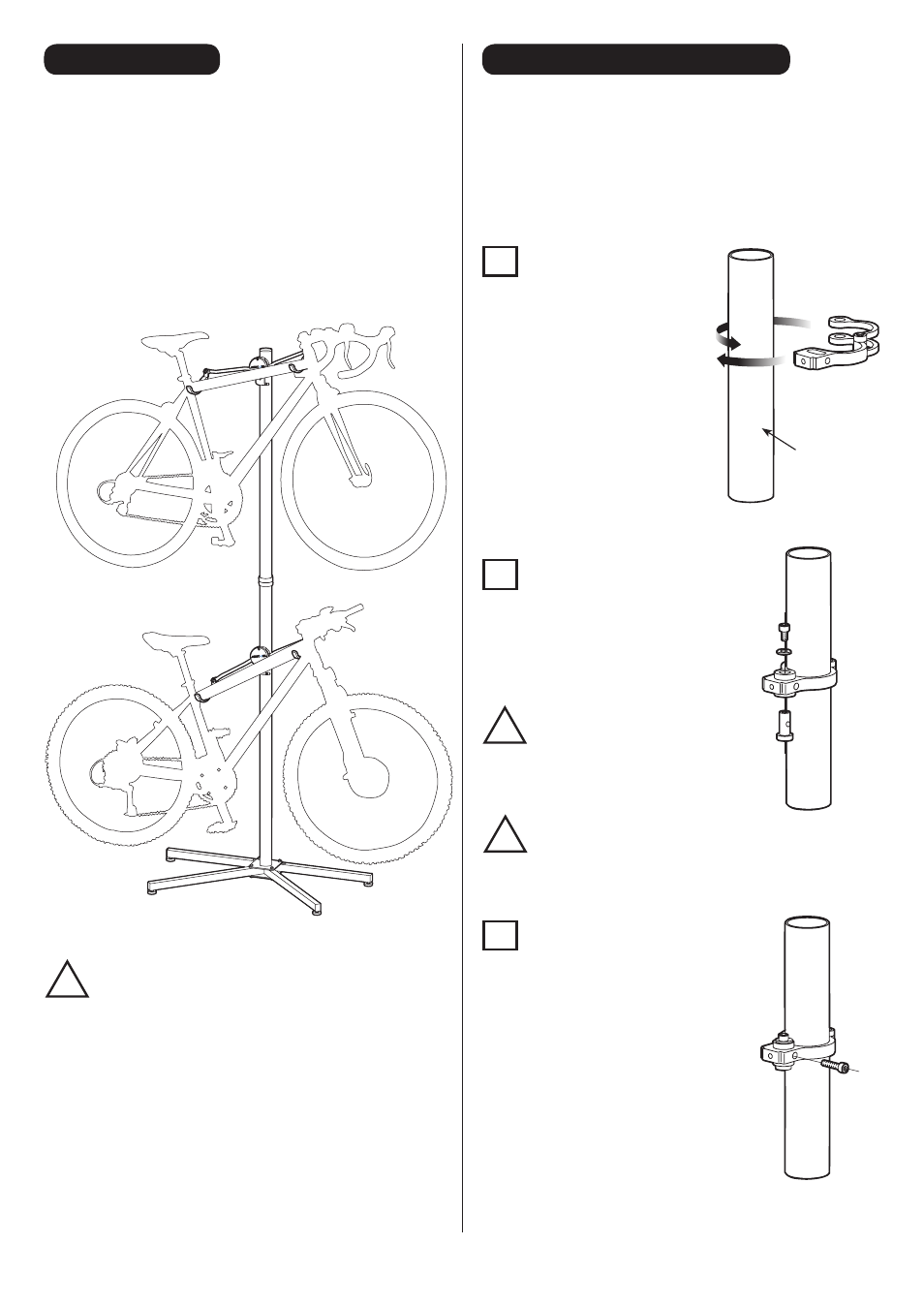

Mount Your Bike
To mount your bike on P-500AL-5S, place the hooks under
the crossing sections of the frame tubing.
You should set the hook distance as wide as possible for
greatest stability.
On a normal diamond type frame, you will hook the top-
tube with both hooks, but in the case of sloping frame or
other specially designed frame, you can change to another
point such as behind the seat-tube to avoid slippage problem.
Choose the most stable section for maximum safety.
!
If the bikes front wheel is placed higher than
the rear, the front wheel may move side-to-
side.
This could cause incidental damage to your
bike if the handle bars or brakes or other
parts come in contact with your frame.
Adjust the bike accordingly to avoid
incidental contact. Or we strongly
recommend you to connect the front wheel
and the down-tube with a strap belt.
(Fig. Z)
How To Reinstall Clamp Band
The clamp bands come pre-installed and they should not
need to be removed. However, there may come time when
adding options to P-500AL-5S that you will need to remove
them.
Install the clamp peoperly as instructed below. Failure to do
so may cause parts damage or bike falling off accident.
Wind the clamp arms around
the Pillar.
The following description is
set as the single side arm is on
YOUR right, and the double
side arm is on YOUR left.
Put the Pivot-Pin through all 3 holes
on the clamp band from bottom side,
and screw the Pivot-Pin Fixing Bolt
with a flat washer temporally.
!
Make sure to insert the
Pivot-Pin from the bottom.
If you don't, you will not
be able to tighten the bolt
using a hex wrench.
Pillar
Turn the Pivot-Pin to align the thread
hole to the side hole on the clamp
band.
Screw the Clamp Tightening Bolt into
the Pivot-Pin.
To fix the clamp band firmly, tighten
the Clamp Side Pin first then tighten
the Pivot-Pin Fixing Bolt later.
!
Do not tighten the Pivot-
Pin Fixing Bolt firmly yet.
The next job will become
difficult.
1
2
3
(Fig. AB)
(Fig. AC)
(Fig. AA)
