- 2 -

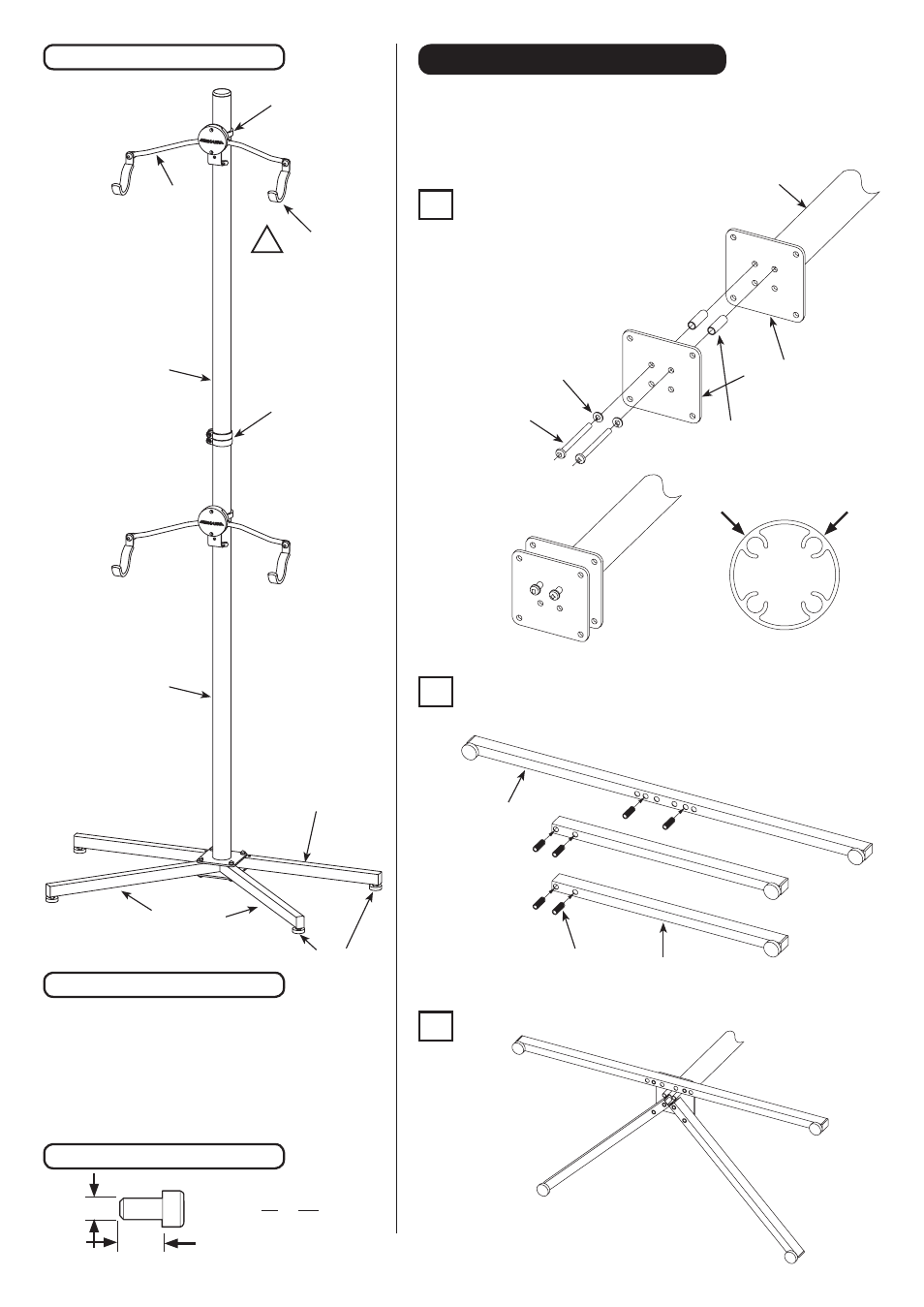

Assemble P-500 in K-style Leg
Required Tools
1 x M5 Hex Wrench (included)
1 x Phillips Screwdriver (not included)
1 x 13mm Spanner (not included)
Upper Pillar
Hook
Arm
Long Leg
Short Leg
Foot Adjuster
Cradle
｛
1
2
3
(Fig. B) (Fig. C)
(Fig. D)
(We strongly recommend to use the fatter No.3
screwdriver instead of standard No.2)
How To Read Bolt Size
Length
Diameter
Ex) 6 x 30
Part Name
Setting up your P-500 in the K-Style leg configuration saves valuable room
because the stand can be placed next to a wall. ONLY place the bikes on
the front side of the stand so as to maintain balance and keep the stand
from toppling over. Maximum bikes per stand is TWO (2).
Attach two Leg Brackets to the
Pillar.
One is set directly, and another
one is set beyond the silver
Collars.
Do not tighten the M6x70 Bolts
firmly yet. (see Fig. B)
Pillar
Leg Bracket
(both are exactly same)
Collar (Silver)
M6x70 Bolt
Spring Washer
Screw the bolts to
these slots
(Fig. A)
Put the black Collars to the designated holes (see Fig. D) on
both Long and Short Legs. Collar is put from the larger hole.
Collar (Black)
(Fig. E)
Place the legs as shown in Fig.E.
Diameter Length
Long Leg
Short Leg
The collar works to prevent deforming the tube
by the bolt tightening power. You must set
the collar correctly.
Lower Pillar
Cradle Clamp
!
Hook material may
leave stain on the
bike frame.
For more info, refer
page 8.
Pillar Joint Clamp
(Unit: mm)
