Aurorean Network Gateway-1000 User’s Guide
47
C
Pin Assignments Pin Assignments Pin Assignments Pin Assignments
This appendix describes pin assignments for the Ethernet connectors on the
back of the ANG-1000. Because ANG-1000 servers ship with all the cables
required, this information is only necessary if you need to purchase or
fabricate a replacement cable.
ANG-1000 servers are equipped with Ethernet ports located at the rear of the
chassis, supporting full-duplex 10Base-T transmission.
Both port types conform to IEEE 802.3 standards with 8-pin modular RJ-45
connectors. Figure 2 shows the pin assignments for ANG-1000 server
Ethernet ports.
Figure 1

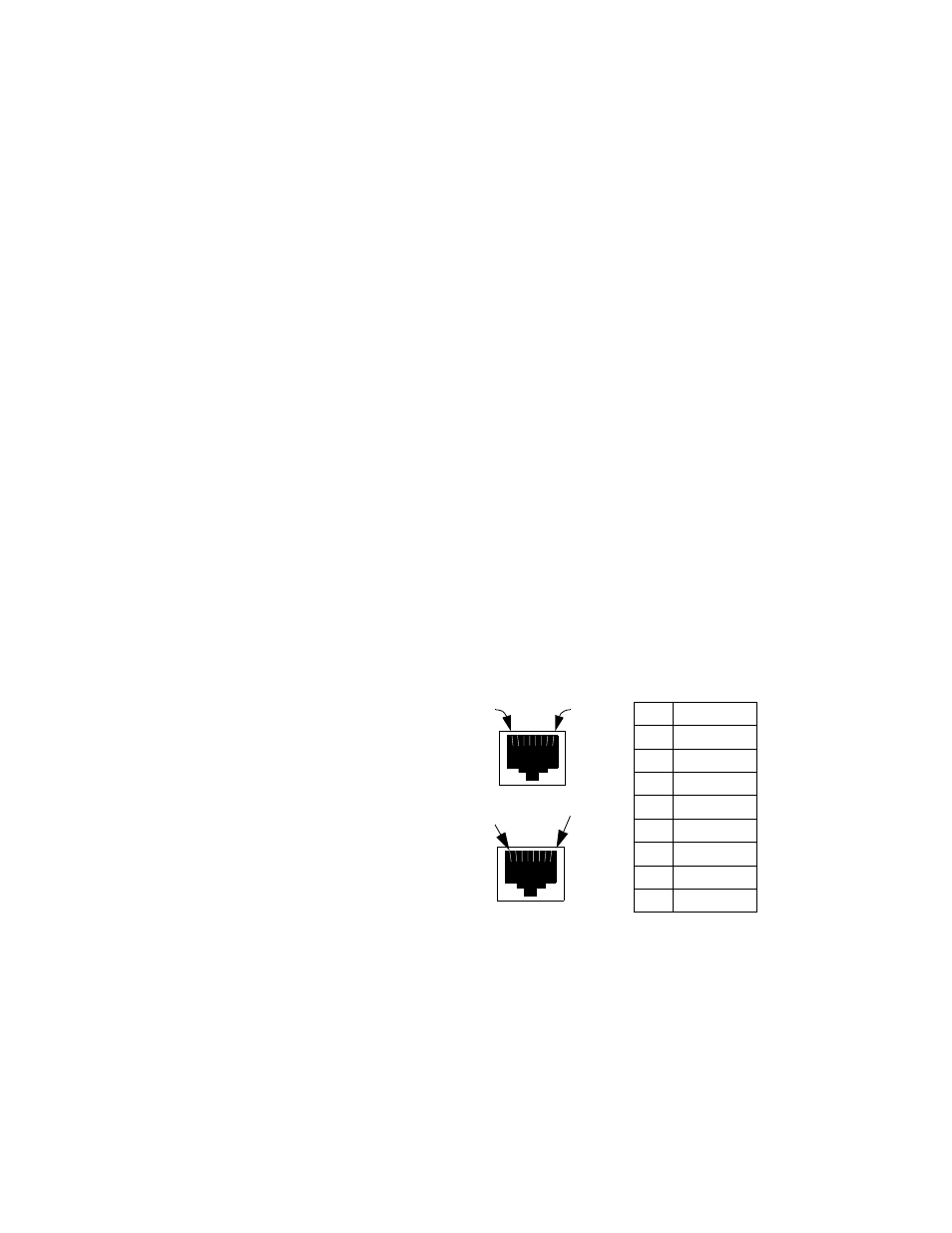

Figure 2 Ethernet Port Pin Assignments
Link 2
Link 1
Pin 1
Pin 8
Pin 1 Pin 8 Pin Signal
1 Transmit +
2 Transmit -
3 Receive +
4 Return
5 Return
6 Receive -
7 Return
8 Return
(TRUSTED)
(EXTERNAL)
