Aurorean Network Gateway-1000 User’s Guide
5
Chapter 2 Connecting Cables
Installation
All interconnections are made at the back of the ANG-1000 (refer to Figure 4).
Although there is no power switch, a reset button is located in the rear of the
unit.
CAUTION
If you press the reset button after you have configured your ANG-1000,
you will lose your entire configuration. Any settings you supplied must
then be re-entered. We strongly recommend that you do not use the reset
button unless you want the configuration to return to factory defaults.
Ethernet Cables
The ANG-1000 is equipped with two 8-pin modular RJ-45 Ethernet ports
labeled Trusted and External as shown in Figure 5. The Trusted port is
connected to a computer or hub/switch with networked computers. The
External port is connected to a cable or DSL modem.

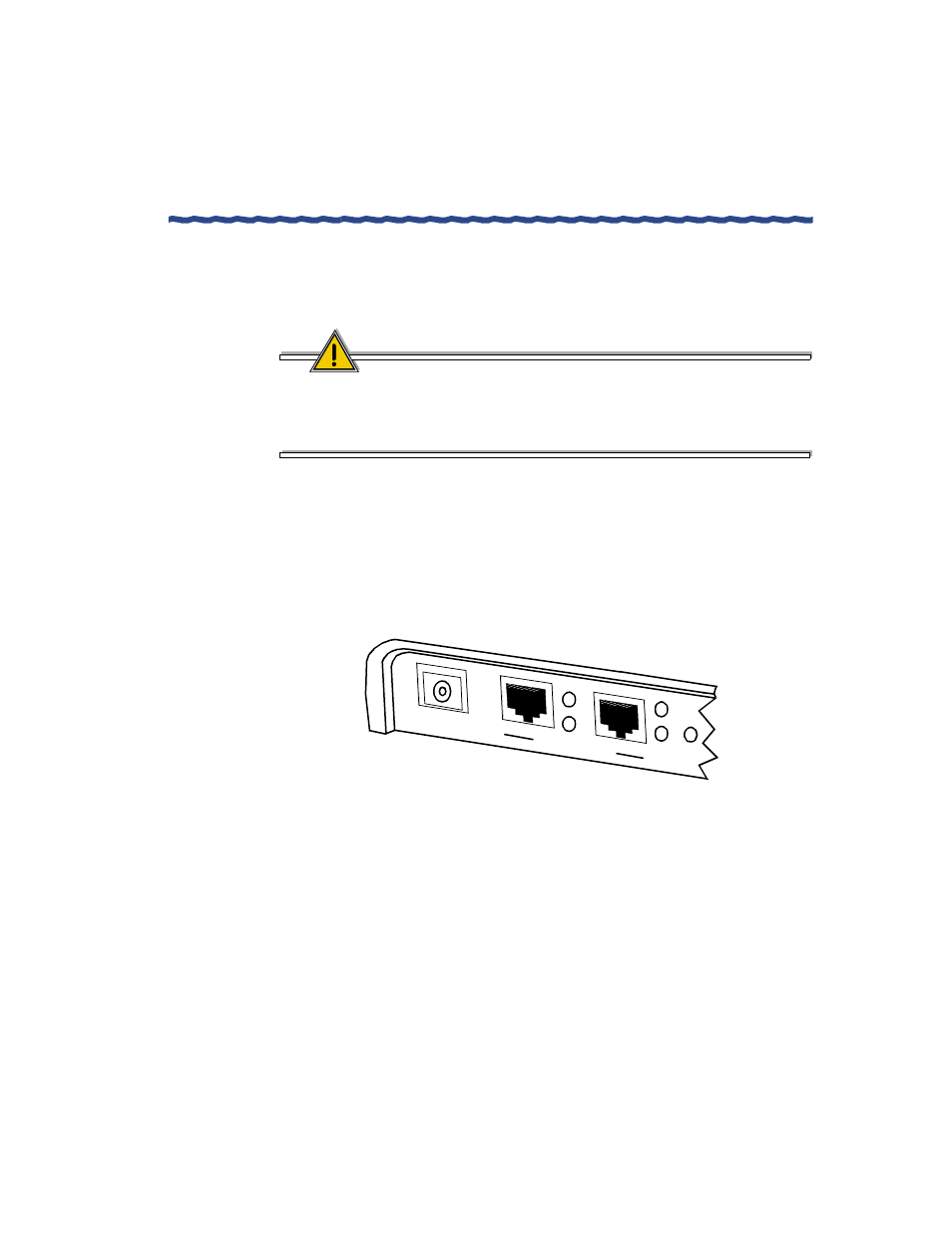

Figure 5 Location of the Ethernet Ports
The trusted connection can be either a sole desktop computer or a hub that
connects up to 25 tunnels to the network as shown in Figure 6.
Power
External
Trusted 5Vdc 2.5A
10 Base T Reset
