FUSES
FUSES
NOTE: ALL FUSES (F1 THROUGH F5)
ARE 5A @ 250 VAC, ANTI-
SURGE, CASE SIZE 5 X 20 MM,
TYPE T TO IEC127, SCHURTER.

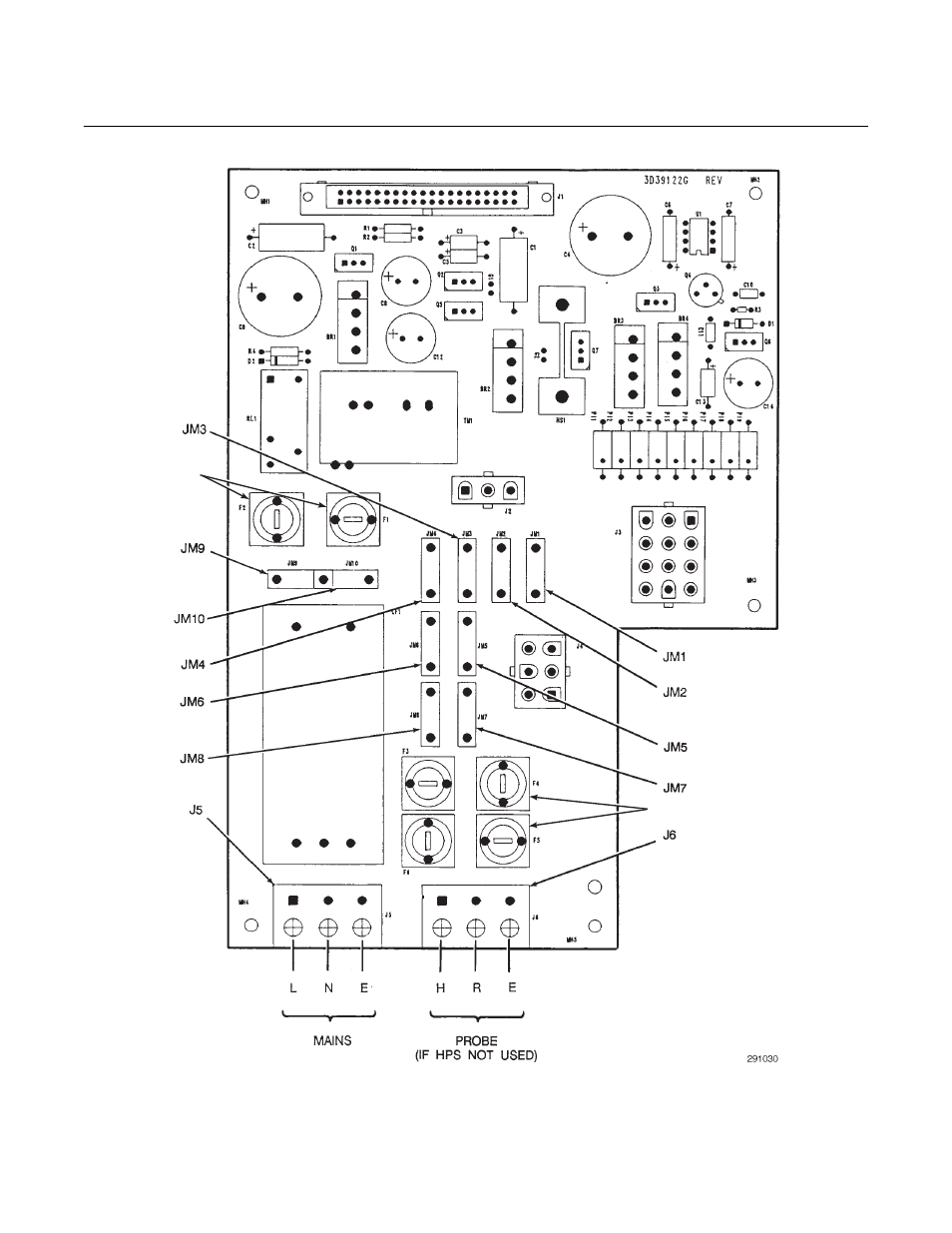

Figure 2-7. IFT Power Supply Board Jumpers
