Ms-pae series inverter, Mpsh-30d enclosure, 0 wiring diagrams – Magnum Energy Magnum Panel (MP Series) User Manual
Page 90: Figure 4-5c, mpsh-30d dc wiring
Text mode
Original mode

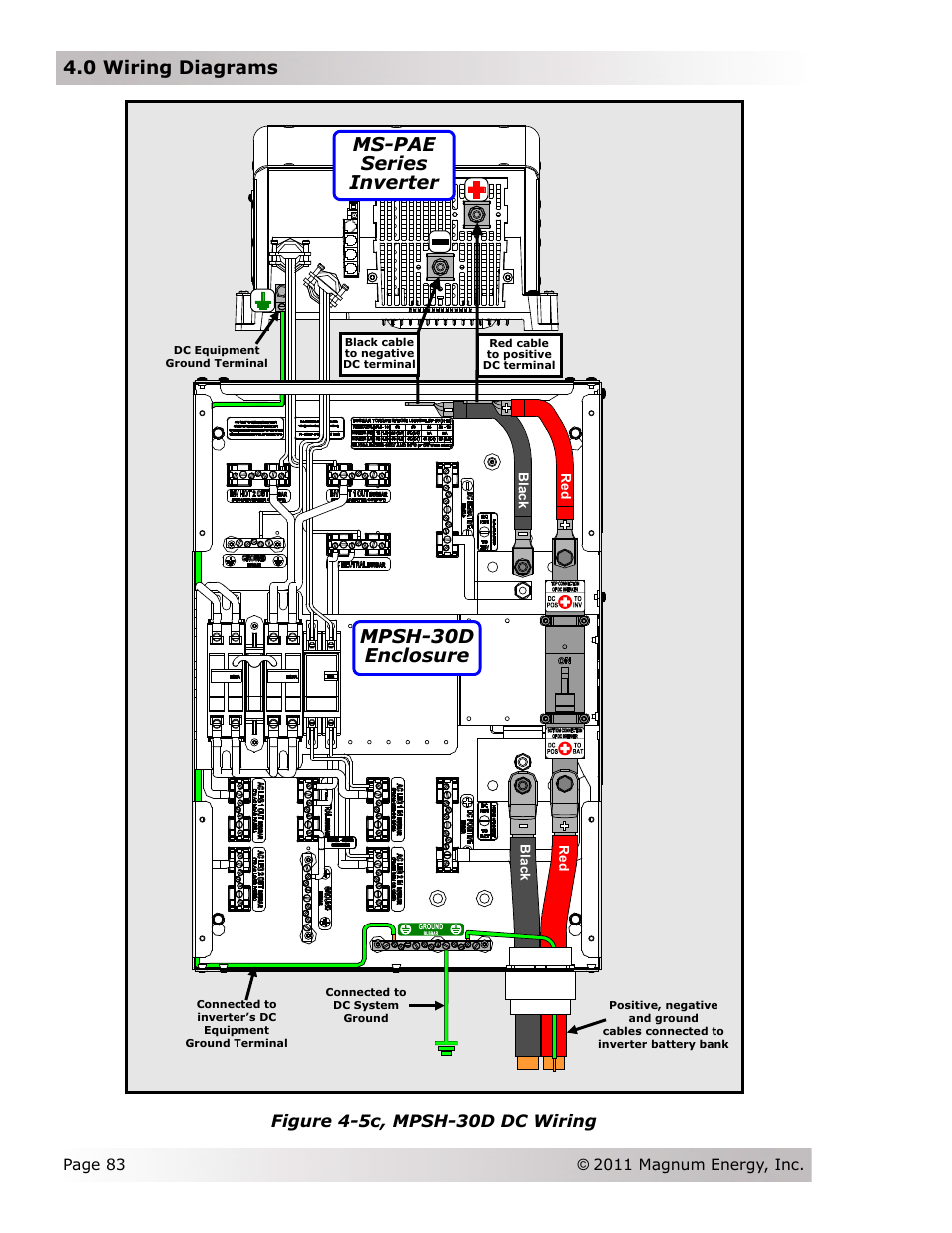

Ms-pae series inverter, Mpsh-30d enclosure, 0 wiring diagrams | Figure 4-5c, mpsh-30d dc wiring | Magnum Energy Magnum Panel (MP Series) User Manual | Page 90 / 120
