4 Battery Backup Systems With All-Pole Disconnection SMA Solar Technology AG
22 Ersatzstrom-IS-en-30 Installation - Quick Reference Guide
4.1.3 Connecting the Sunny Island Inverter

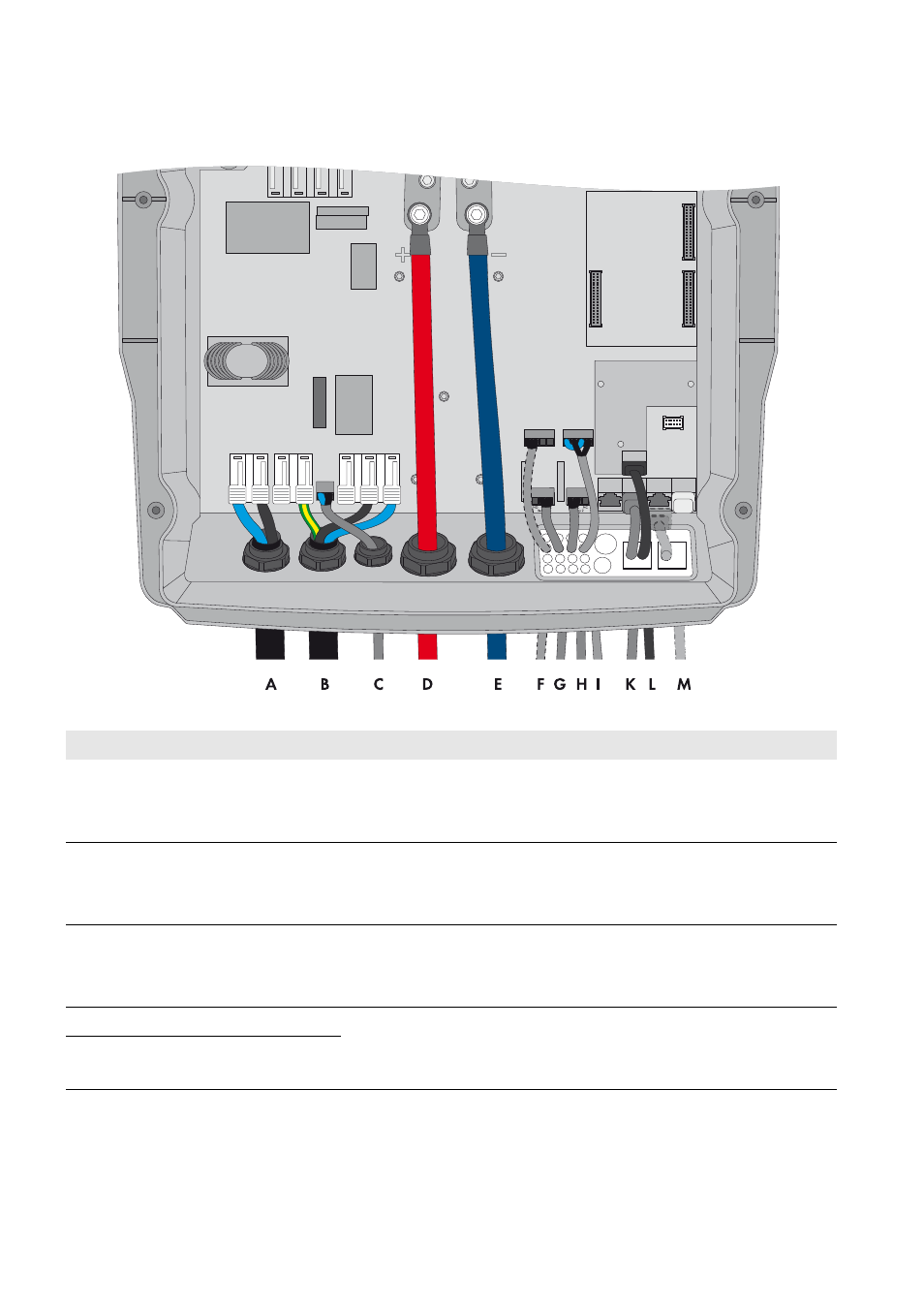

Figure 5: Connecting the Sunny Island inverter
Position Designation Description/information
A Cable for the control voltage Sunny Island: connection AC1 Loads/SunnyBoys terminals L and N
Automatic transfer switch: connection X5 terminals L and N
Conductor cross-section: 2.5 mm² to 16 mm²
B AC power cable Sunny Island: connection AC2 Gen/Grid terminals L, N
TT
, and PE
Automatic transfer switch: connection X3 terminals L1, N, and PE
Conductor cross-section: 10 mm² to 16 mm²
C Measuring cable for voltage
measurement
Sunny Island: connection ExtVtg terminals L and N
Automatic transfer switch: connection X4 terminals L1 and N
Conductor cross-section: 1.5 mm² to 2.5 mm²
D DC+ cable Battery connection
Conductor cross-section: 50 mm² to 95 mm²
Cable diameter: 14 mm to 25 mm
E DC − cable
