426 Manual operation and setup
13.8 D
a
tu
m set
ting with 3-D t
ouc
h pr
obe (T
ouc
h
P
ro
be
F
unction
sof
tw
a
re
option)

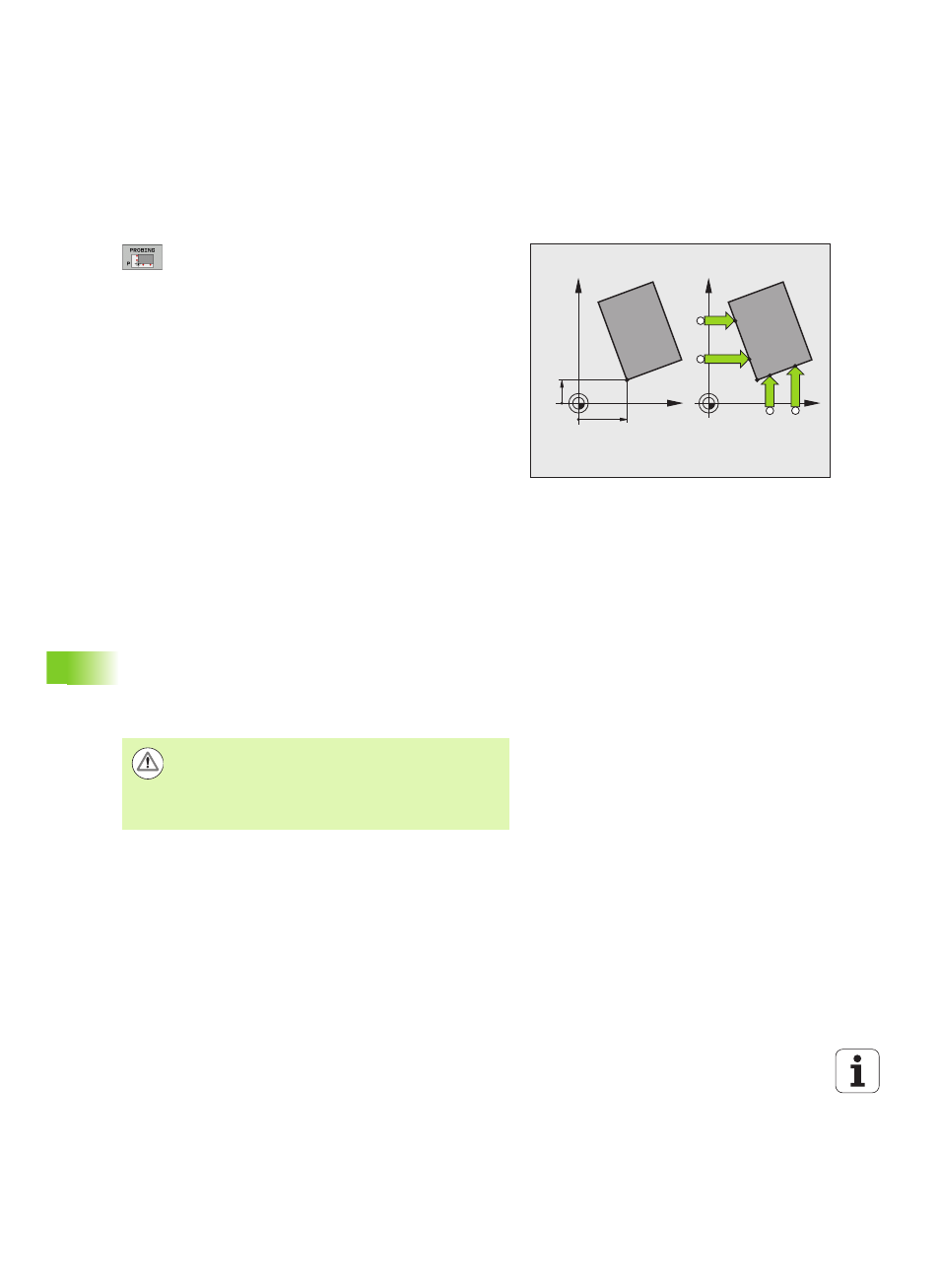

Corner as datum
U Select the probe function: Press the PROBING P soft
key
U Position the touch probe near the first touch point on
the first workpiece edge
U Select the probe direction by soft key.
U To probe the workpiece, press the machine START
button
U Position the touch probe near the second touch point
on the same workpiece edge.
U To probe the workpiece, press the machine START
button
U Position the touch probe near the first touch point on
the second workpiece edge
U Select the probe direction by soft key.
U To probe the workpiece, press the machine START
button
U Position the touch probe near the second touch point
on the same workpiece edge.
U To probe the workpiece, press the machine START
button
U Datum : Enter both datum coordinates into the menu
window, and confirm your entry with the SET
DATUM soft key, or see "Writing the measured
values from touch probe cycles in the preset table",
page 418
U To terminate the probe function, press the END soft
key
P
X=?
Y=?
X
Y
P
X
Y
HEIDENHAIN only gives warranty for the function of the
probing cycles if HEIDENHAIN touch probes are used.
If you use probing functions in a tilted working plane, you
must set 3-D ROT to Active for the Manual Operation and
Automatic operating modes.
