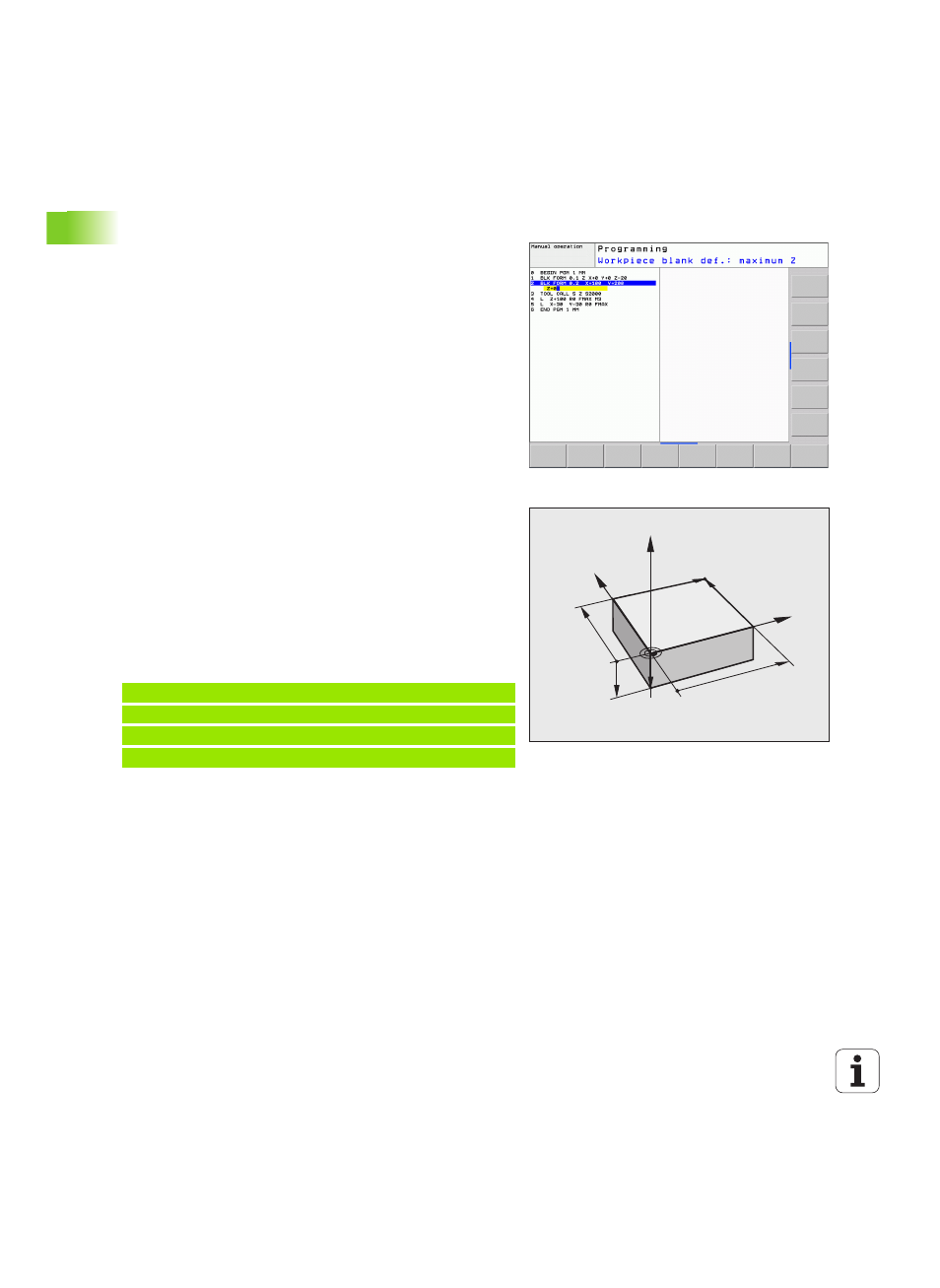

Define a workpiece blank
Immediately after you have created a new program, the TNC starts the
dialog for entering the workpiece blank definition. Always define the
workpiece blank as a cuboid by entering the MIN and MAX points,
each with reference to the selected reference point.
After you have created a new program, the TNC automatically initiates
the workpiece blank definition and asks for the required data:
U Working plane in graphic: XY? : Enter the active spindle axis. Z is
saved as default setting. Accept with the ENT key
U Workpiece blank def.: Minimum X : Enter the smallest X coordinate
of the workpiece blank with respect to the reference point, e.g. 0.
Confirm with the ENT key
U Workpiece blank def.: Minimum Y : Enter the smallest Y coordinate
of the workpiece blank with respect to the reference point, e.g. 0.
Confirm with the ENT key
U Workpiece blank def.: Minimum Z : Enter the smallest Z coordinate
of the workpiece blank with respect to the reference point, e.g. –40.
Confirm with the ENT key
U Workpiece blank def.: Maximum X : Enter the largest X coordinate
of the workpiece blank with respect to the reference point, e.g. 100.
Confirm with the ENT key
U Workpiece blank def.: Maximum Y : Enter the largest Y coordinate
of the workpiece blank with respect to the reference point, e.g. 100.
Confirm with the ENT key
U Workpiece blank def.: Maximum Z : Enter the largest Z coordinate
of the workpiece blank with respect to the reference point, e.g. 0.
Confirm with the ENT key. The TNC concludes the dialog
Example NC blocks
Further information on this topic
„ Defining the workpiece blank: (see page 84)
Y
X
Z
MAX
MIN
-40
100
100
0
0
0 BEGIN PGM NEW MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-40
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 END PGM NEW MM
