108 Fixed Cycles: Tapping / Thread Milling
4.1 F
undamentals
4.1 Fundamentals
Overview

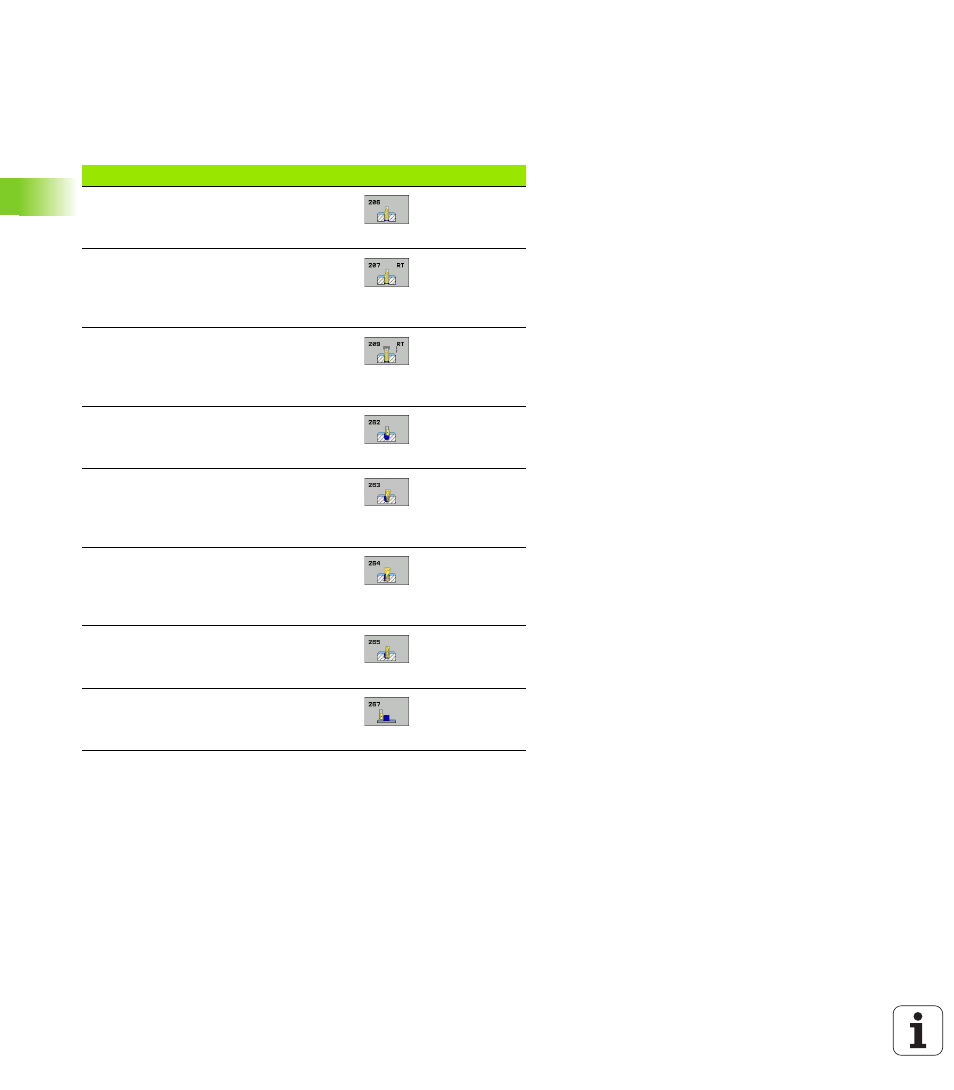

The TNC offers 8 cycles for all types of threading operations:
Cycle Soft key Page
206 TAPPING NEW
With a floating tap holder, with automatic
pre-positioning, 2nd set-up clearance Page 109
207 RIGID TAPPING NEW
Without a floating tap holder, with
automatic pre-positioning, 2nd set-up
clearance Page 111
209 TAPPING W/ CHIP BREAKING
Without a floating tap holder, with
automatic pre-positioning, 2nd set-up
clearance, chip breaking Page 114
262 THREAD MILLING
Cycle for milling a thread in pre-drilled
material Page 119
263 THREAD MILLING/CNTSNKG
Cycle for milling a thread in pre-drilled
material and machining a countersunk
chamfer Page 122
264 THREAD DRILLING/MILLING
Cycle for drilling into the solid material
with subsequent milling of the thread
with a tool Page 126
265 HEL.THREAD DRILLING/MILLING
Cycle for milling the thread into the solid
material Page 130
267 OUTSIDE THREAD MILLING
Cycle for milling an external thread and
machining a countersunk chamfer Page 130
