576 Manual Operation and Setup
14.9 Tilting the W
o
rk
ing Plane (Sof
tw
ar
e Option
1)

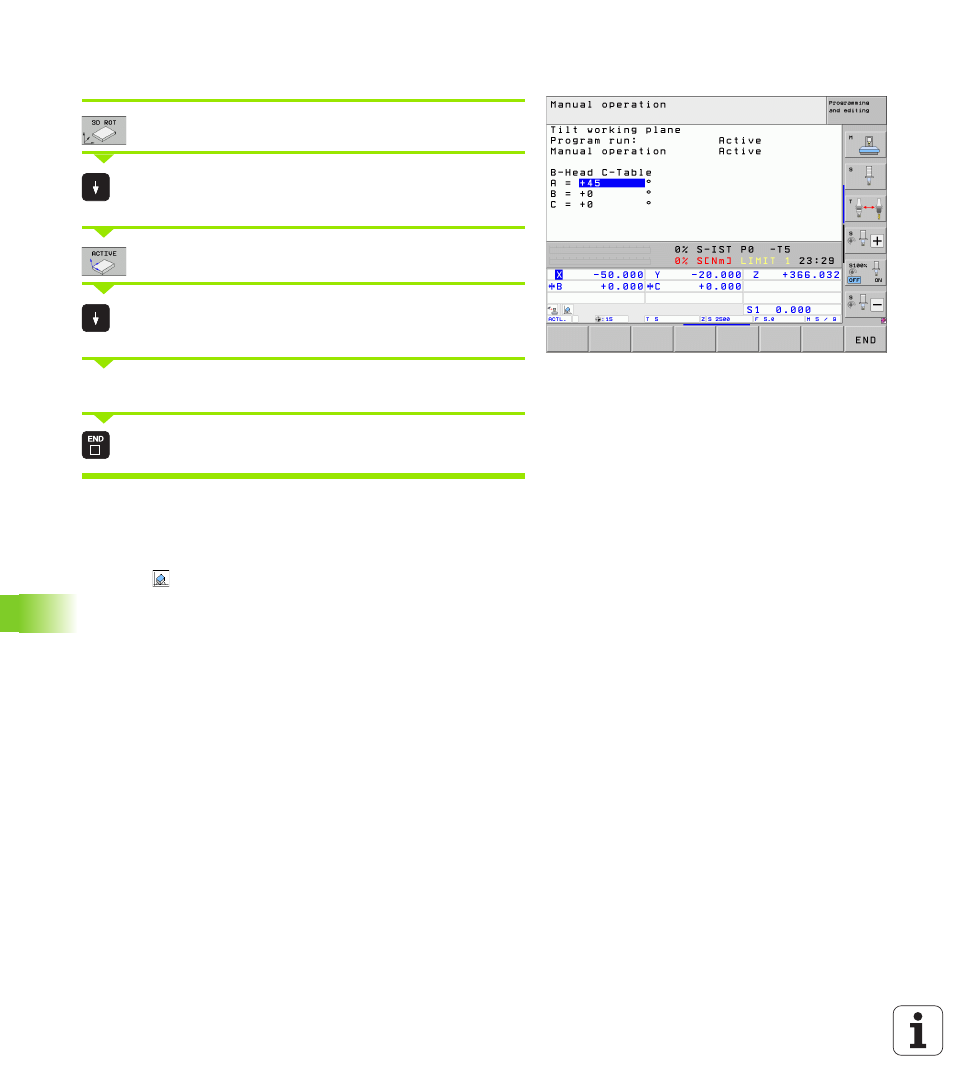

Activating manual tilting
To select manual tilting, press the 3-D ROT soft key.
Use the arrow keys to move the highlight to the
Manual Operation
menu item.
To activate manual tilting, press the ACTIVE soft key.
Use the arrow keys to position the highlight on the
desired rotary axis.
Enter the tilt angle
To conclude entry, press the END key.
To reset the tilting function, set the desired operating modes in the
menu “Tilt working plane” to inactive.
If the tilted working plane function is active and the TNC moves the
machine axes in accordance with the tilted axes, the status display
shows the
symbol.
If you activate the “Tilt working plane” function for the Program Run
operating mode, the tilt angle entered in the menu becomes active in
the first block of the part program. If you use Cycle 19 WORKING PLANE
or the PLANE function in the part program, the angle values defined
there are in effect. Angle values entered in the menu will be
overwritten.
