254 Programming: Programming Contours
6.6 P
a
th Cont
ours—FK F
ree Cont
our Pr
ogr
a
mming

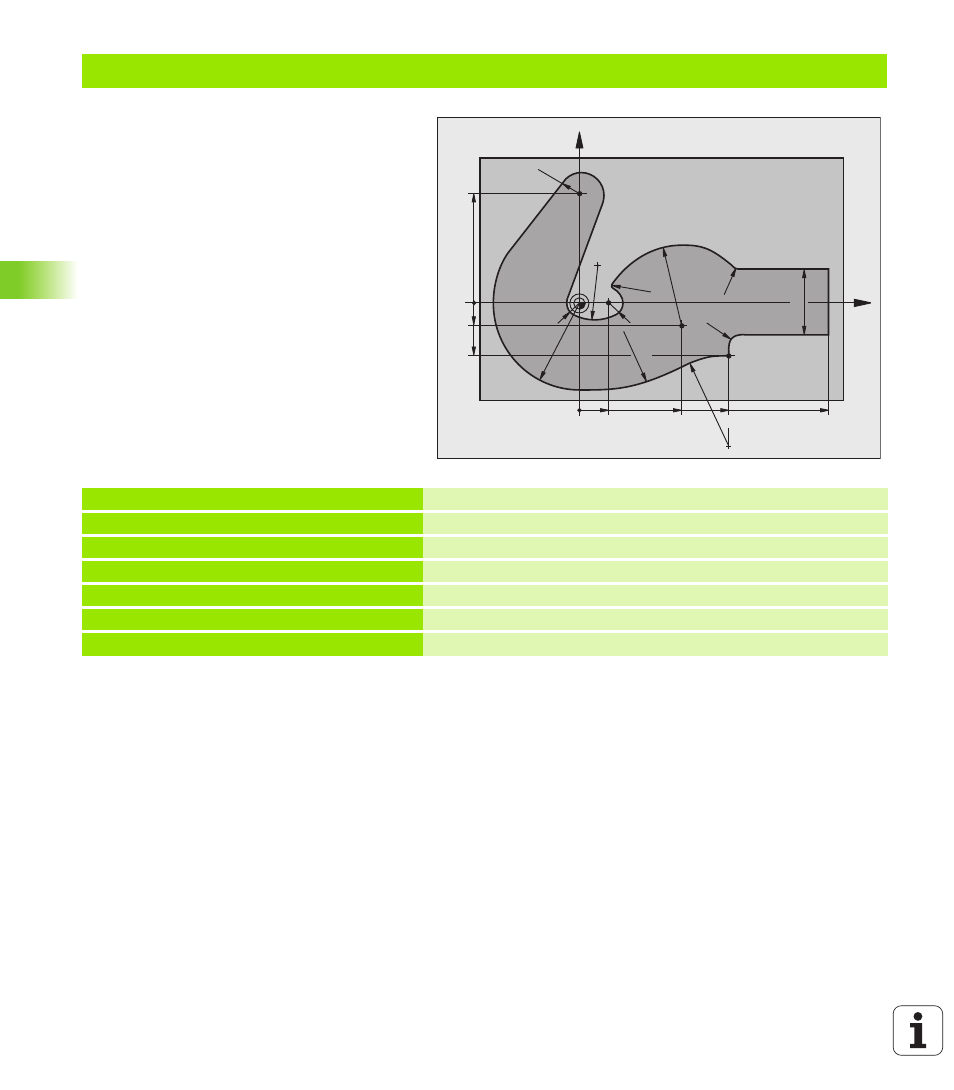

Example: FK programming 3
0 BEGIN PGM FK3 MM
1 BLK FORM 0.1 Z X-45 Y-45 Z-20 Definition of workpiece blank
2 BLK FORM 0.2 X+120 Y+70 Z+0
3 TOOL CALL 1 Z S4500 Tool call
4 L Z+250 R0 FMAX Retract the tool
5 L X-70 Y+0 R0 FMAX Pre-position the tool
6 L Z-5 R0 F1000 M3 Move to working depth
X
Y
110 12
50
-10
44 65
R10
-25
30
R40
R6
R6
R24
R1,5
R36
R5
R5
R65
R50
