39
Multipoint
A
xis
Error
Compensation

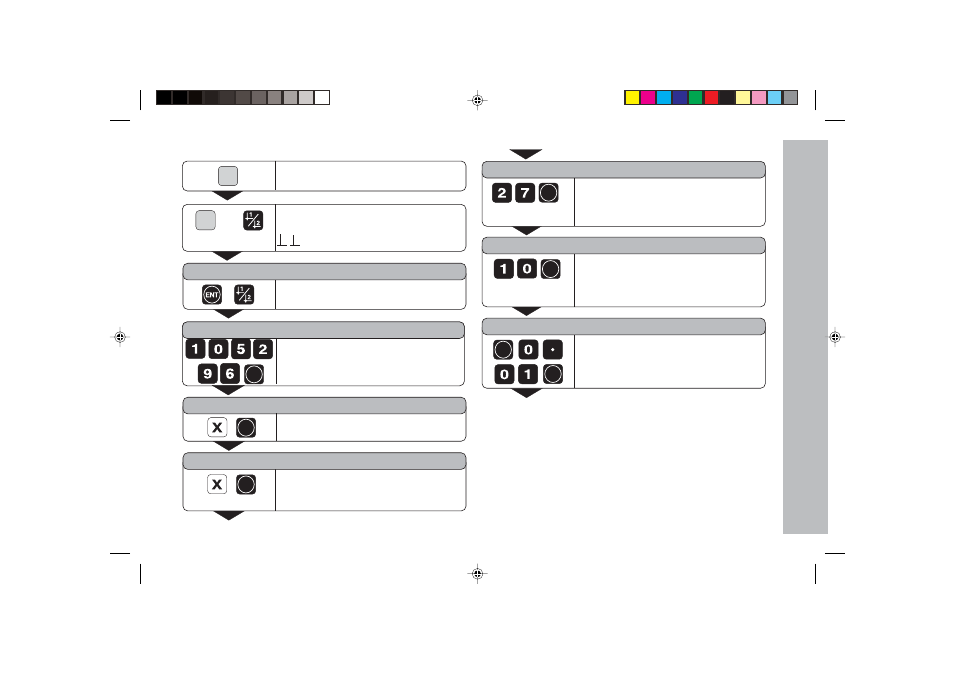

Selecting the compensation table, entering an axis correction
DATUM X
Enter the active datum for the error on
the axis to be corrected (e.g. 27 mm)
and confirm with ENT.
SPACING X
Enter the spacing of the compensation
points on the axis to be corrected, for
example 2 10 mm (equals 1.024 mm) and
confirm with ENT.
27.000
Compensation point no. 1 is displayed.
Enter the associated compensation
value (e.g. 0.01 mm) and confirm with
ENT.
Select the special functions.
PARAMETER
Select dialog for entering the code
number.
Enter code number 105296 and
confirm with ENT.
AXIS X
Select axis to be corrected, e.g. X.
Confirm with ENT.
X FCT. X
Enter the axis causing the error, e.g. X
(screw pitch error), and confirm with
ENT.
•
•
SPEC
FCT
ENT
ENT
ENT
ENT
ENT
ENT
Select the "parameter" function if
required, by repeatedly pressing the
1 2 key.
SPEC
FCT
or
•
•
ENT
CODE
