Kayenne XL Package — Installation and Service Manual 93
AUX Control Panels
AUX Control Panels
General
In the Kayak HD / Kayenne XL production switcher system small auxiliary
control panels can be used for crosspoint selection and other purposes. As
abbreviation, the auxiliary control panels are called AUX CP.
The router and facility control system Jupiter has a lot of panels available.
Some of these fit into the requirements for use as Aux Control Panel.
CP-300
24-source selection button panel with 6 delegation buttons.
Mechanical dimensions: 19”, 1RU, small buttons.
The CP-300 control panel modules are basic single bus controllers. 24
inputs are provided with the CP-300 panel. Delegation buttons provide
access to 6 different busses.

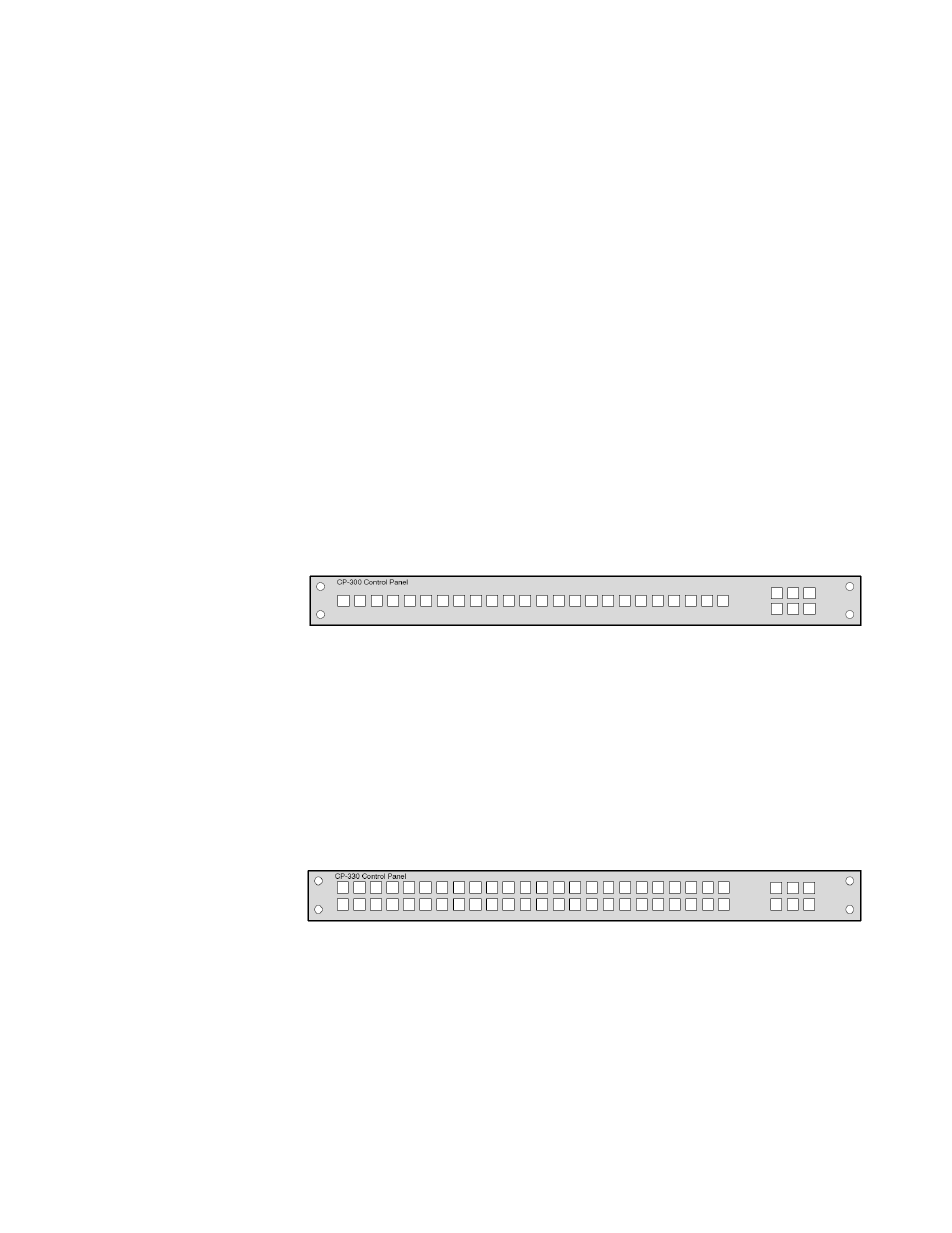

Figure 63. Aux Control Panel CP-300
CP-330
48-source selection button panel with 6 delegation buttons.
Mechanical dimensions: 19”, 1RU, small buttons.
The CP-300 and CP-330 control panel modules are basic single bus control-
lers. 48 inputs are provided with the CP-330. Delegation buttons provide
access to 6 different busses.
Figure 64. Aux Control Panel CP-330
CP-3020
20-source selection button panel with 2 delegation buttons.
Mechanical dimensions: 19”, 1RU, large buttons.
The CP-3020 control panel module is a basic 20-input controller with two
bus delegation buttons.This panel can be expanded with the CP-3021
expansion panel module to add access to 20 additional inputs. 
